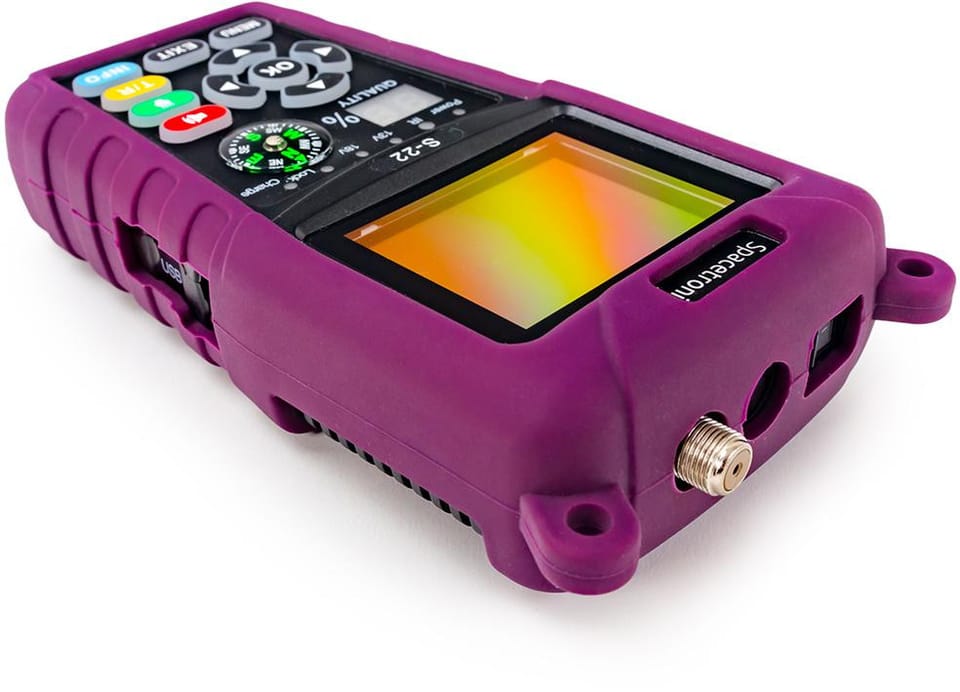

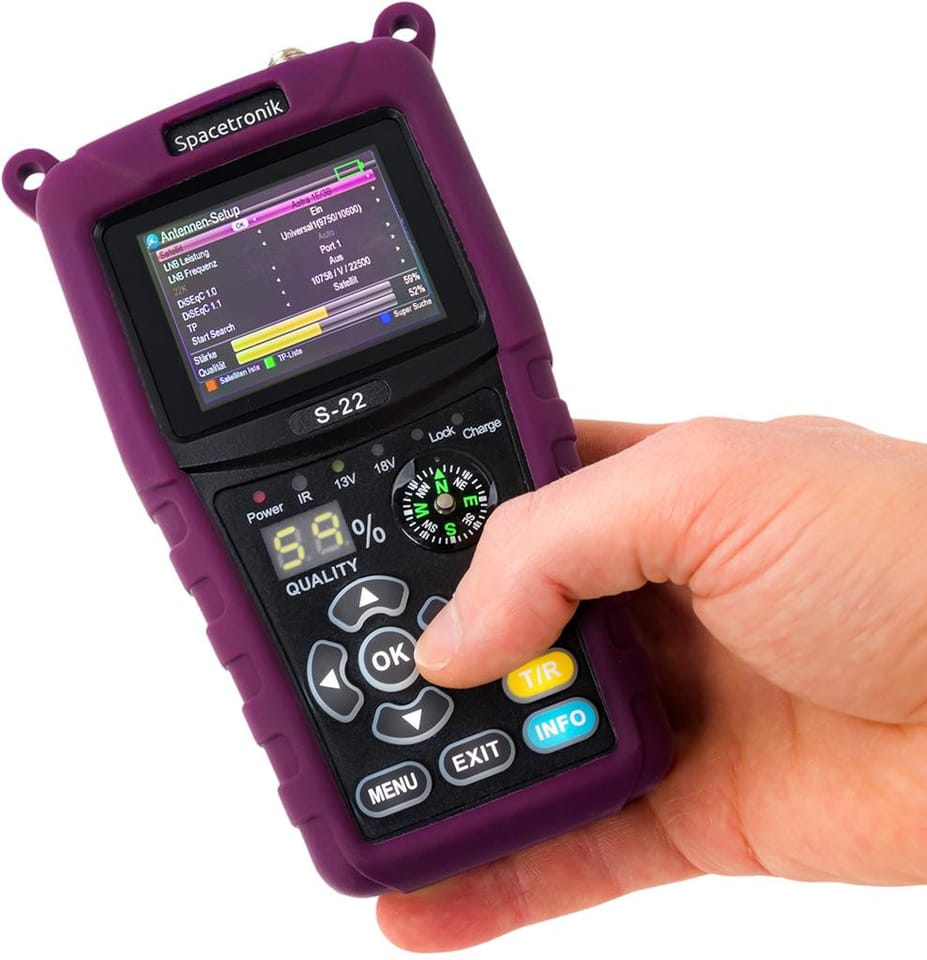

SAT Signal Meter Spacetronik S-22 DVB-S/S2/S2X

SAT Signal Meter Finder Spacetronik S-22 DVB-S2/S2X H.265 with IPTV m3u and softcam: cccam, oscam, newcamd

Easy-to-use SAT 4K H.265 satellite meter with 2.4" TFT color display. It is used in setting satellite dishes in order to properly receive the signal. Basic measurement functions such as measurement of signal strength and quality are displayed in %. In addition, it has error indication functions BER, PWR, SNR. Built-in spectrum analyzer. The meter supports all traditional SAT LNB and UNICABLE I/II SCR/DCSS converters. The SAT meter has a built-in gyroscope for adjusting the angle and compass. One of the biggest advantages of the meter is the preview of LIVE channels!

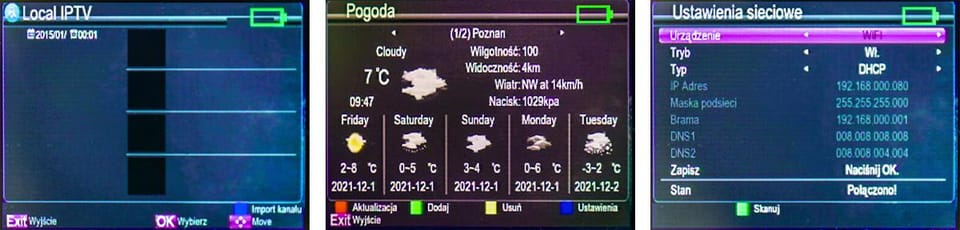

The meter supports WiFi by connecting an external USB WiFi antenna with the RT5370 chipset which allows you to access additional functions:

- Model S-22
- 2.4-inch TFT LCD display
- Full support for SAT systems: DVB-S / DVB-S2 / DVB-S2X H.265
- Input frequency: 950~2150MHz
- Measurement of signal quality strength in %
- Measurement functions BER, PWR, SNR
- Spectrum analyzer (18V / 22K)

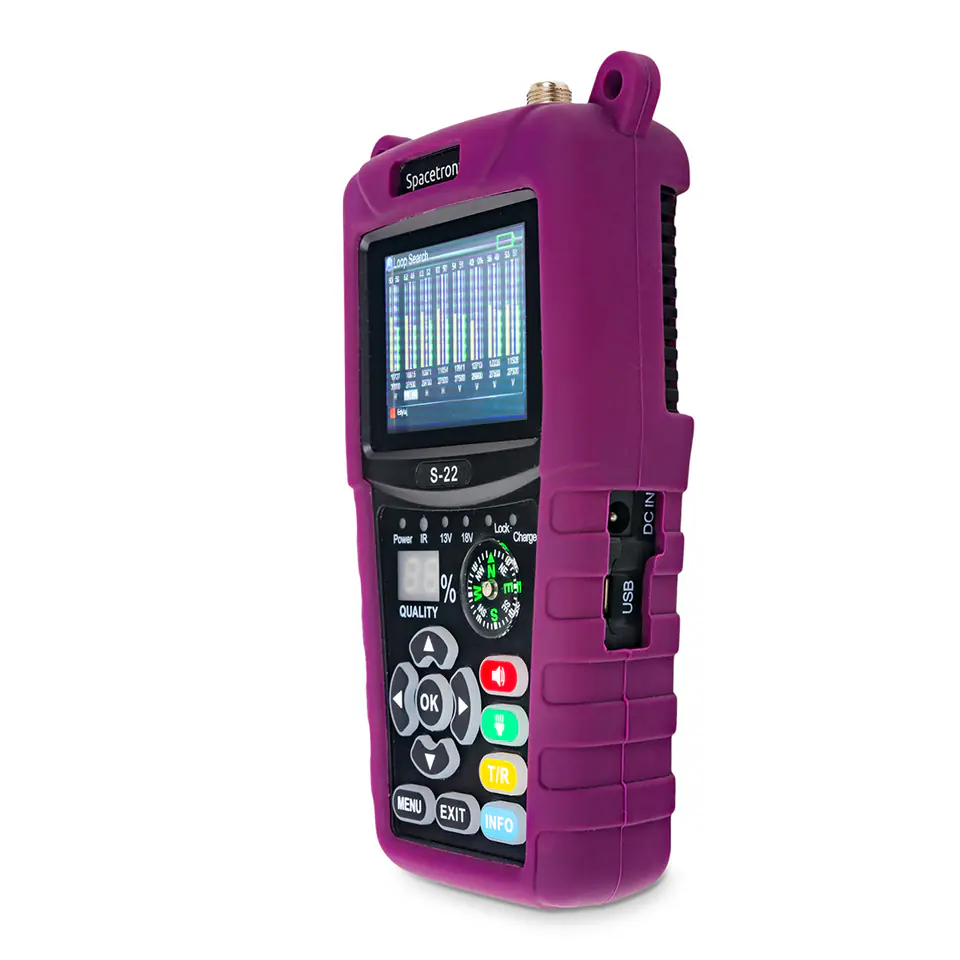

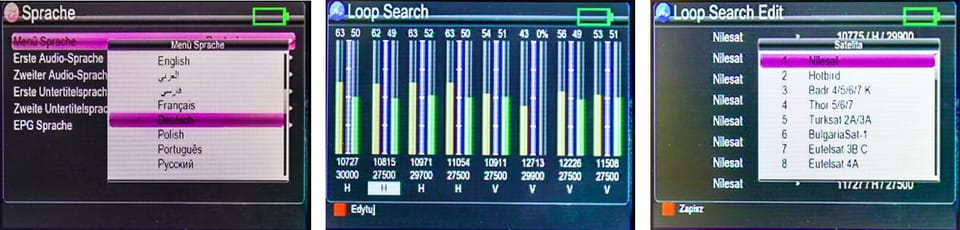

- Support loop search function (simultaneous signal preview on 8 frequencies)
- Support for LNB SCR/DCSS UNICABLE I/II converters

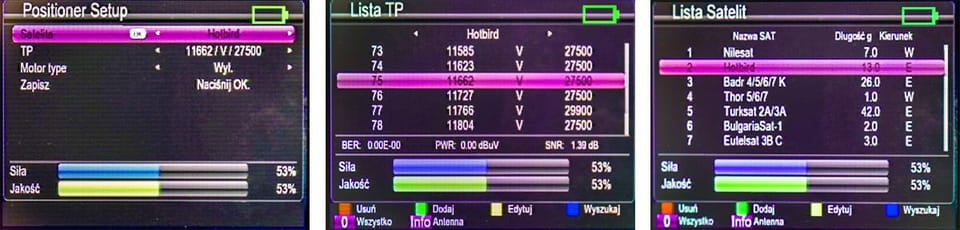

- Support DISEQC 1.0/1.1/1.2.0/USALS 22khz

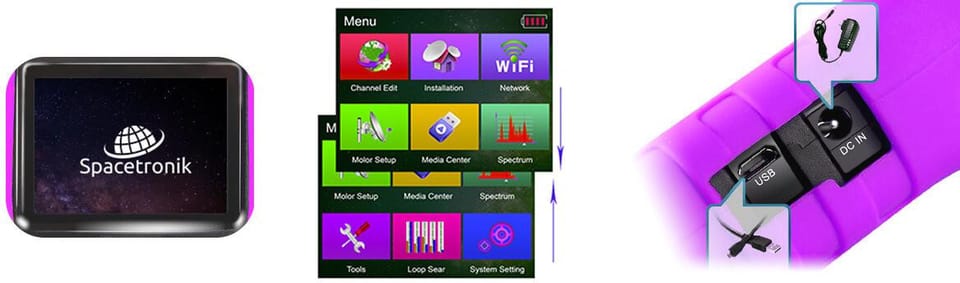

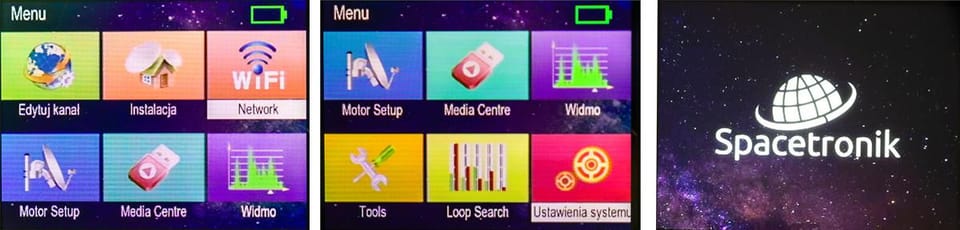

- Ability to choose the style of the main menu
- High brightness LED lighting
- Backlit keys
- Built-in LED flashlight
- Input resistance 75Ω
- Output Power: 13/18V,350mA
- Signal level (-25 dbm ~ -65dbm)
- LNB power supply 12/18V,350mA
- LNB control switch 22KHz
- Min. Level in:-35dBuV
- Max. Level in: ~ 90dBuV
- Demodulation of the M88DS3103B chip
- 8 bit MCU processor
- Power supply: 12V 100mA
- Li-ion battery: 7.4V/2500 mAh

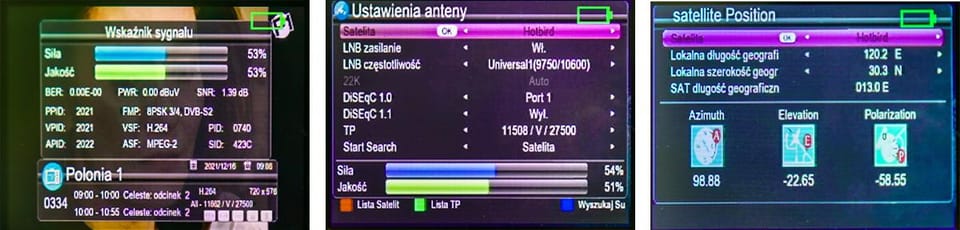

- Gyroscope inside to adjust the angle and compass
- Software update via USB port

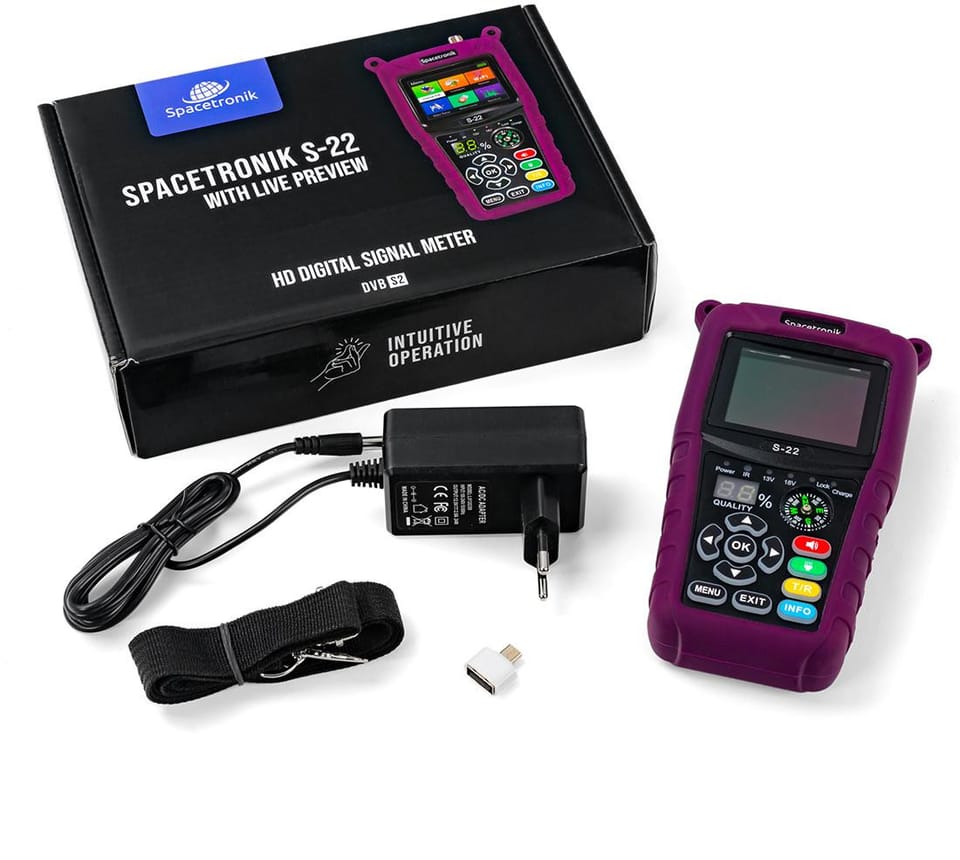

- S-22 meter
- Charger 230V - 12V 1000mA
- Neck strap
- USB MICRO / USB adapter
