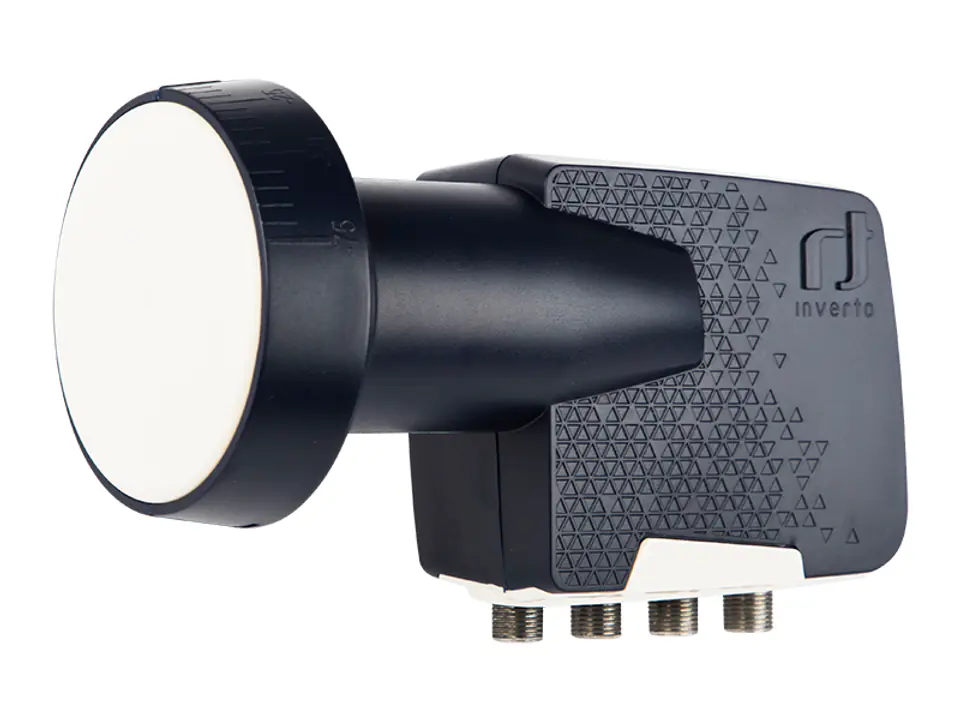

The specially designed converter responds to the global demand of the DTH market related to 4G and LTE. Octo Home Pro allows you to receive using the latest technology - it supports HD and UHD transmissions. It enables reception of satellite TV and radio from one satellite and its distribution using a multiswitch to numerous set-top boxes.
Features:- Low phase noise, compatible with DVB-S2 (HD & UHD)
- Low noise factor
- Low power consumption
- High cross polarization
- High frequency stabilization
Specification:
- Input frequency range: 10.7GHz~12.75GHz
- Output frequency range: 950MHz~2150MHz
- Low frequency band LO: 9.75 GHz
- LO high frequency band: 10.6GHz
- Noise level: 0.2 dB type. (max 0.7dB)
- Frequency accuracy: LO @ 25 ° C ± 500 kHz max.
- Temperature drift: ± 1.0 MHz max.
- LO phase noise at 10 kHz: -80dBc / Hz. max
- Conversion gain: 55 db. Min.
- Gain change (in the whole band): ± 3 dB
- Image rejection: 40 dB
- Cross polarity insulation: 22 db typ., 20 dB min.
- VSWR: 2.5:1
- Current consumption: 240 mA max @ 11V DC - 20V DC
- Operating temperature: -35°~+60°C
- Weight: 221 g
