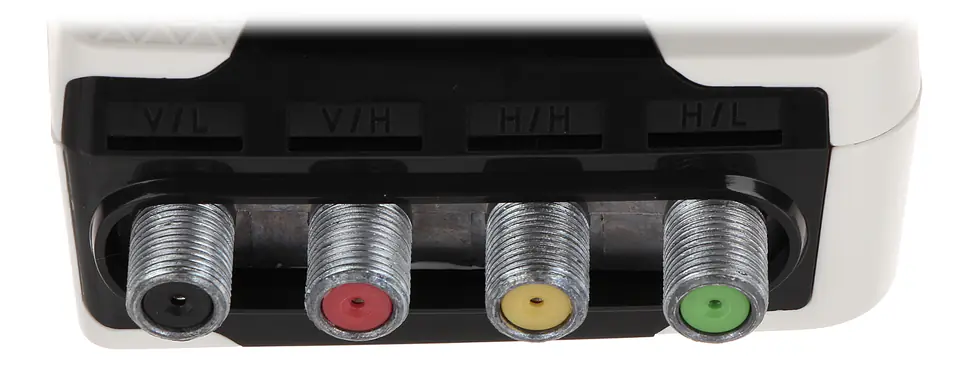

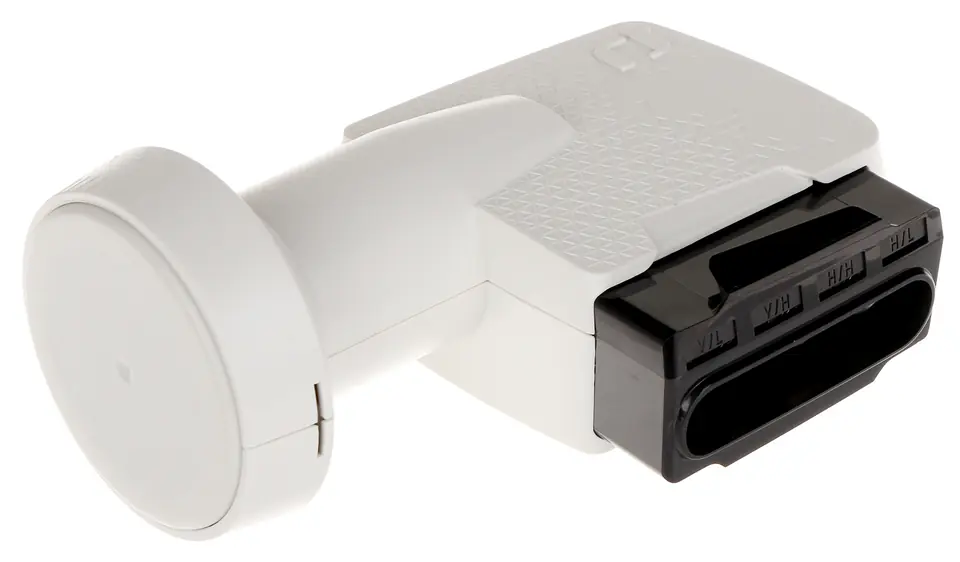

It enables reception of satellite TV and radio from one satellite and its distribution using a multiswitch to numerous set-top boxes.
Specification:
- Lower band - input: 10.7 GHz ~ 11.7 GHz
- Lower band - output: 950 MHz ~ 1950 MHz
- Bottom oscillator: 9.75 GHz
- Upper band - input: 11.7-12.75 GHz
- Upper band - output: 1100 - 2150 MHz
- Top oscillator: 10.6 GHz
- Own noise: 0.3dB (max. 0.7dB)
- Oscillator temperature drift: ± 3 MHz max.
- Phase noise: -80dBc / Hz. max
- VSWR: 2.5:1
- Current consumption: 200 mA max @ 11V DC - 20V DC
- Operating temperature: -30°~+60°C
- Weight: 243 g
