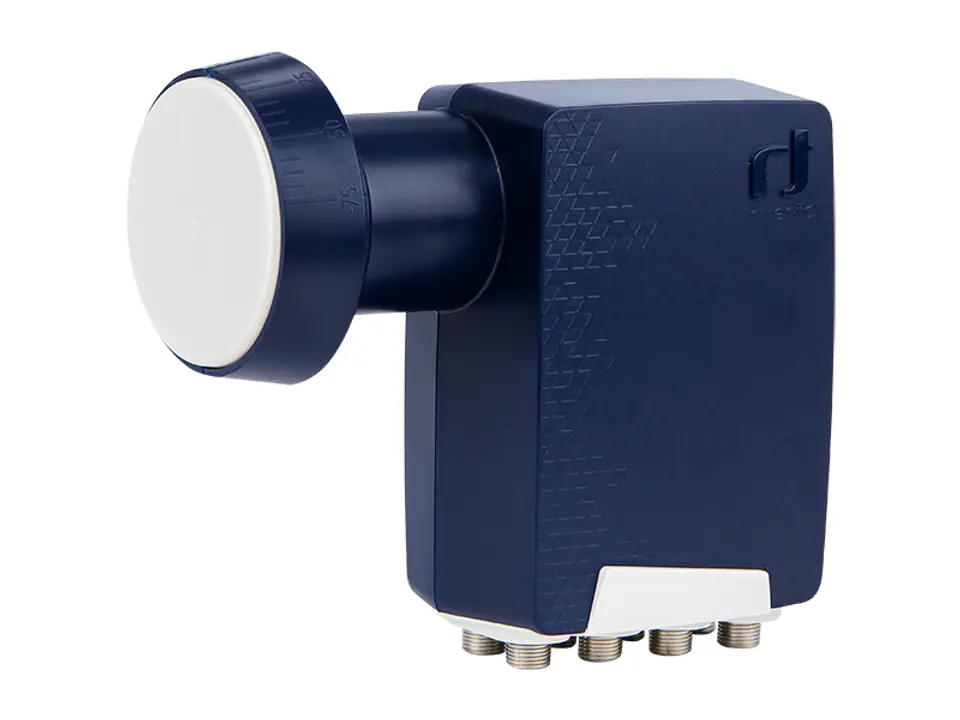

The specially designed converter responds to the global demand of the DTH market related to 4G and LTE. Octo Home Pro allows you to receive using the latest technology - it supports HD and UHD transmissions. It provides excellent performance with very low power consumption. It allows you to receive satellite TV from one satellite and distribute it to 8 set-top boxes (or four PVR with two tuners).
Features:- Low phase noise, compatible with DVB-S2 (HD & UHD)
- Low noise factor
- Low power consumption
- High cross polarization
- High frequency stabilization
Specification:
- Input frequency range: 10.7GHz~12.75GHz
- Output frequency range: 950MHz~1950MHz
- Low frequency band LO: 9.75 GHz
- LO high frequency band: 10.6GHz
- Noise level: 0.7 dB type. (max 1dB)
- Frequency accuracy: LO @ 25 ° C ± 500 kHz max.
- Temperature drift: ± 800 kHz max.
- LO phase noise at 10 kHz: -90dBc / Hz. max
- Conversion gain: 55 db. Min.
- Ripple gain: (bandwidth above 26 MHz) ± 0.6 dB
- Gain change (throughout the band): ± 4 dB
- Image rejection: 40 dB
- Cross-polarity isolation: 22 db min.
- VSWR: 2.3:1
- Current consumption: 210 mA max @ 11V DC - 20V DC
- Operating temperature: -30°~+60°C
- Weight: 299 g
