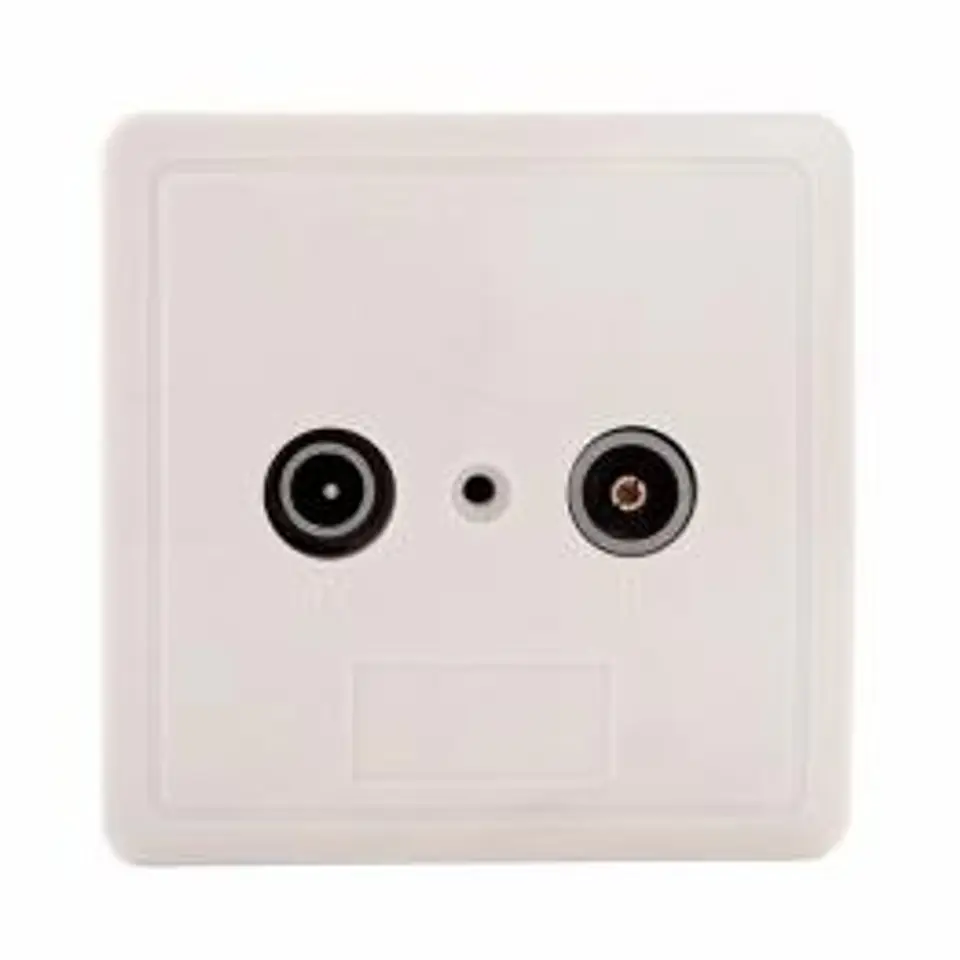

Antenna socket (standard line)
- Includes wall box, frame and lid
- Including housing for easy wall mounting
| Model: | TS1-T |
| Frequency range: | 5 - 1006 MHz |
| Branch method: | adapter |
| TV Output: | 47 / 85 - 1006 MHz |
| Return channel frequency: | 5 - 65 MHz |
| Attenuation: | 3.5 dB |
| Return channel attenuation: | 3.5 dB |
| TV/Radio Output: | 47 / 85 - 1006 MHz |
| Return channel frequency: | 5 -65 MHz |
| Attenuation: | 3.5 dB |
| Return channel attenuation: | 3.5 dB |
| Pass-through damping: | Final |
| Internal separation: | ≥ 22 db |
| Separation between outputs: | ≥ 30 db |
| Dimensions: | 70 mm x 76 mm x 32 mm |
