Manufacturer no : 10200044
The TEM platform scale will work well in warehouses, warehouses, sorting plants, at the post office, airport, in trade and wherever its exact indications are important.
The scale has been certified and legalized after rigorous testing. The legalization is certified by the M mark (black letter written in a square) on the nameplate. The device is supplied with the EU Declaration of Conformity and a unique serial number. Only legalized scales are approved for official use in trade.

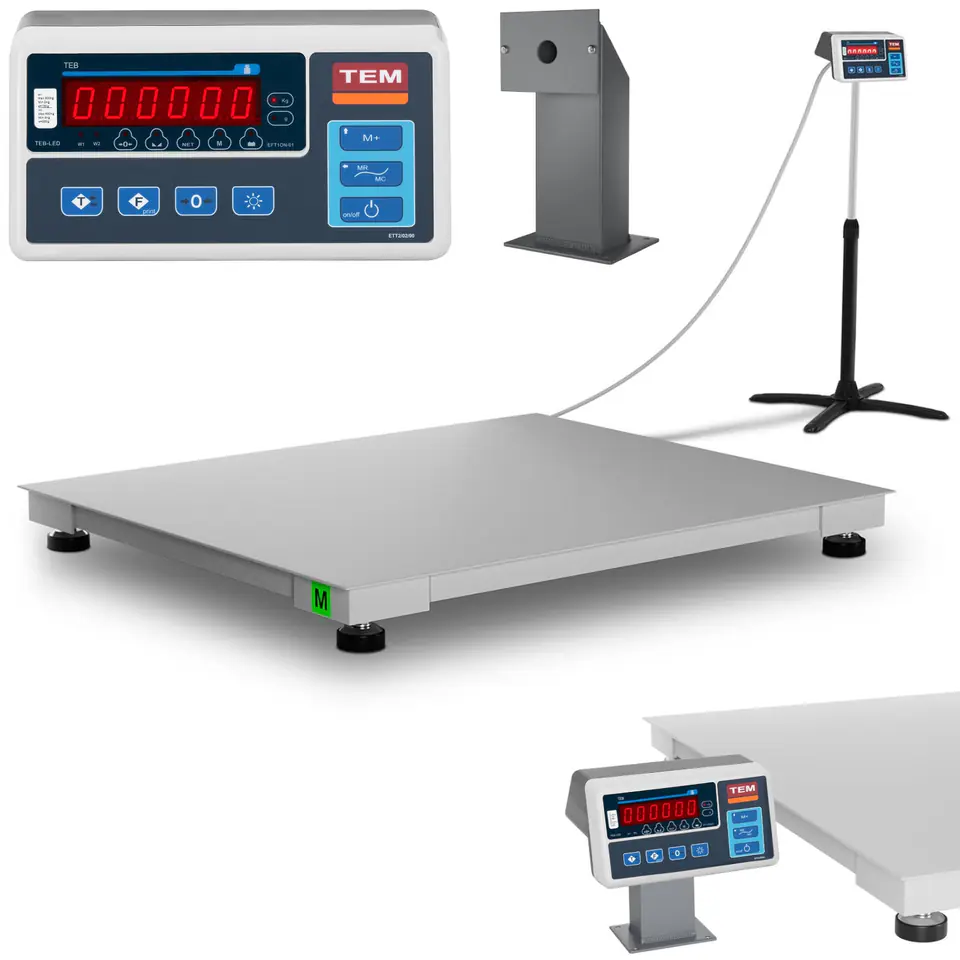

The lifting capacity of the weight is 600 kg with a precision of 200 g. Two weight ranges W1 were used to choose from : 2 kg - 300 kg with an accuracy of 100 g and W2: 4 kg - 600 kg with an accuracy of 200 g. The device is easy to use thanks to the intuitive control panel with buttons with legible symbols. The panel can be placed on an adjustable tripod (80-120 cm) or attached to the wall (stand and handle included). Good visibility of measurements is provided by the LED display. The controls indicate the selected settings. The RS232 interface allows you to conveniently connect the scale to the cash register or computer. The weighing platform is made of carbon steel with an antistatic coating and the display is made of hard ABS. Adjustable non-slip feet provide the weight with stability. The high-capacity battery of 6 V / 4.5 Ah allows the device to work up to 40 hours. The device has been calibrated (for a period of 2 years) and is suitable for use immediately after unpacking.
Product features:
- - Legalization - the right to trade with the EU declaration of conformity,
- - High precision - accuracy 100 g (300 kg), 200 g (600 kg),
- - Strength - carbon steel platform with antistatic coating (100 x 120 cm),
- - Readability - bright, 6-digit LED display,
- - Functionality - RS232 interface with communication protocols DIALOG 06, TEM, TISA, DELTA, NCI.
- - Model - AT1TA100X1200600M1-B1
- - Catalog No. - 10200044
- - Article status - New
- - Voltage - 230 V
- - Weighing range - 2-600 kg
- - Accuracy - 0.1 or 0.2 kg
- - Display - LED
- - Weighing surface material - Carbon steel with antistatic coating
- - Power supply - Power supply + battery
- - Battery life - Up to 40 hours
- - Weighing area - 1000 x 1200 mm
- - Calibration - Yes
- - Taring - Yes
- - Counting pieces - No
- - Saving - No
- - Zero - Yes
- - Stop the result - No
- - Summation - No
- - Change of units - No
- - Maximum permissible load - Do not exceed the maximum load
- - Power details - Battery: 6 V/4.5 Ah, Power supply: 7.8 V; 1.2 A
- - Digit height - 20 mm
- - Operating temperature - -10 to 40C
- - Graduation - 3000
- - Unit of weight - Kg
- - Power cord length - 5 m
- - Energy-saving mode - Yes
- - Overload warning - Yes
- - User Manual - Yes
- - Dimensions (LxWxH) - 120 x 100 x 10.5 cm
- - Weight - 70.5 kg
- - Shipping dimensions (LxWxH) - 154 x 110 x 38 cm
- - Shipping weight - 154 kg
- - Certified scale
- - Power supply
- - Wall mount
- - Portable tripod
- - Manual EN
