Manufacturer no: 10200047

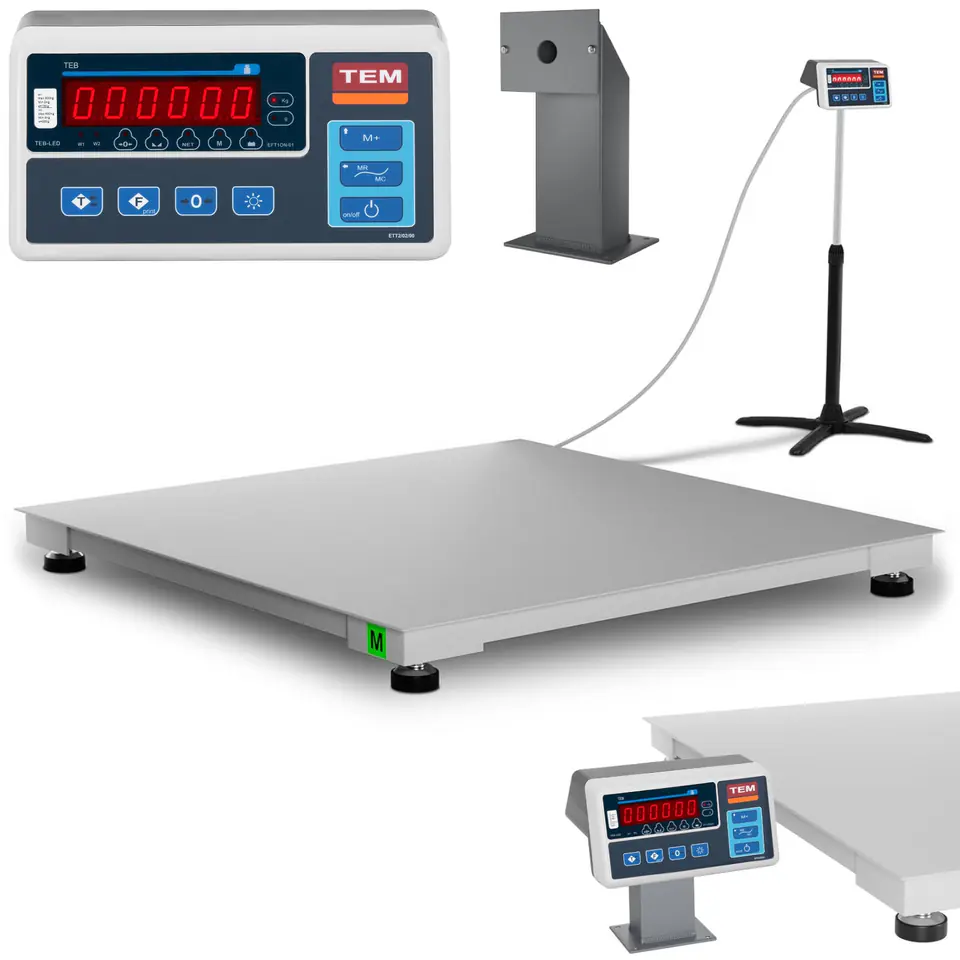

The TEM platform warehouse scale is perfect for use in warehouses, wholesalers, various types of shops, and even in ports or airports. The product meets the requirements of the IP20 standard. The scale has been legalized, has a unique serial number, CE marking and is supplied with the EU declaration of conformity. The scale has already been calibrated (for a period of 2 years) and can be used immediately after unpacking. Measurements are carried out in the following ranges: W1 - from 4 kg to 600 kg (accuracy 0.2 kg) and W2 - min. 10 kg, max. 1500 kg (accuracy 0.5 kg). The high performance of the battery (6 V, 4.5 Ah) allows you to work up to 40 hours. The RS232 port allows you to connect to a cash register or computer. Supported communication protocols are: DIALOG 06, TEM, TISA, DELTA, NCI. The equipment is equipped with 4 height-adjustable feet. The panel is made of hard ABS plastic, while the 120 x 120 cm platform is made of antistatic carbon steel.
Product features:
- - Energy-saving mode,
- - Overload warning,
- -Calibration
- - Taring,
- -Reset.
- - Approved by the "M mark indicating the legalization of the scale,
- - Two weighing ranges (W1 max. 600 kg, precision 0.2 kg; W2 max. 1500 kg, precision 0.5 kg),
- - LED display with space for six digits,
- - Carbon steel platform with antistatic coating (120 x 120 cm),
- - RS232 interface with DIALOG 06 / TEM / TISA / DELTA / NCI COMMUNICATION PROTOCOLS.
- - Model - AT1TA120X1201500M1-B1
- - Catalogue number - 10200047
- - Article status - New
- - Voltage - 230 V
- - Weighing modes - W1, W2
- - Weight range - W1: 4 kg - 600 kg / W2: 10 kg - 1500 kg
- - precision - W1: 0.2 kg / W2: 0.5 kg
- - Display - LED
- - Weighing surface material - Carbon steel with antistatic coating
- - Power supply - Power supply + battery
- - Battery life - Up to 40 hours
- - Weighing area - 1200 x 1200 mm
- - Calibration - Yes
- - Taring - Yes
- - Counting pieces - No
- - Save - No
- - Reset - Yes
- - Stop the result - No
- - Summation - No
- - Changing units - No
- - Maximum permissible load - Do not exceed the maximum load
- - Power details - Battery: 6V/4.5Ah | Power Supply: 7.8V; 1.2A
- - Digit height - 20 mm
- - Operating temperature - From -10 to 40C
- - Graduation - 3000
- - Power cord length - 5 m
- - Energy-saving mode - Yes
- - Overload warning - Yes
- - User manual - Yes
- - Dimensions (LxWxH) - 120 x 120 x 10.5 cm
- - Weight - 84 kg
- - Shipping dimensions (LxWxH) - 152,5 x 131 x 38 cm
- - Shipping weight - 167,5 kg
- - OIML certified scale,
- -Power supply
- - Wall mount,
- - Portable tripod,
- -Manual.
