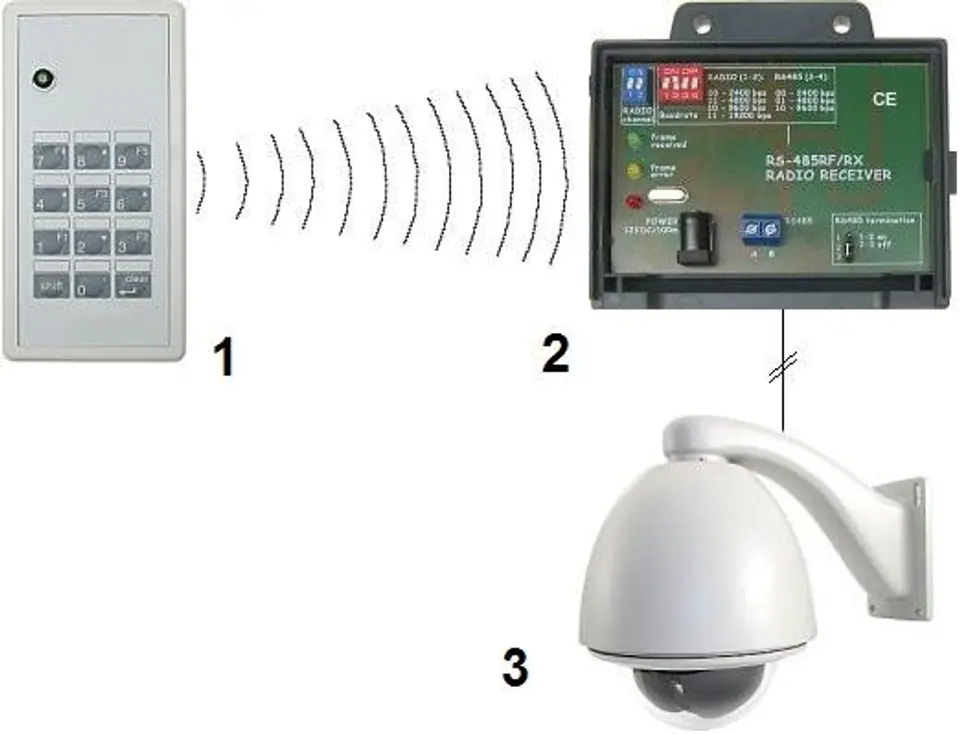

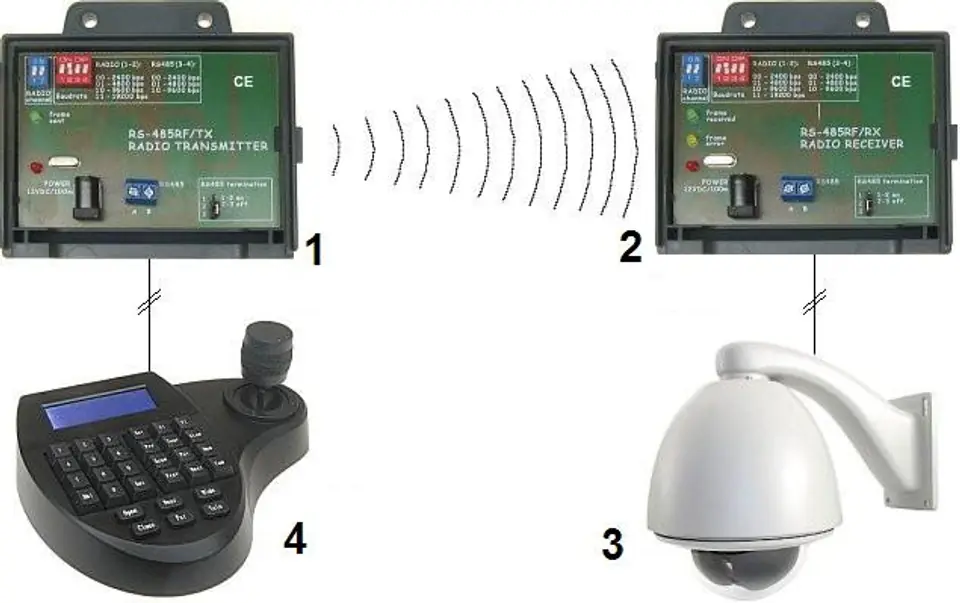

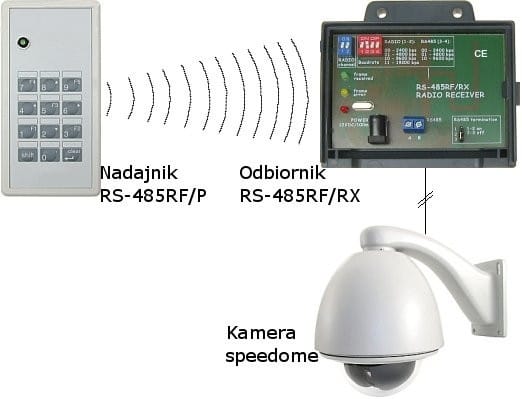

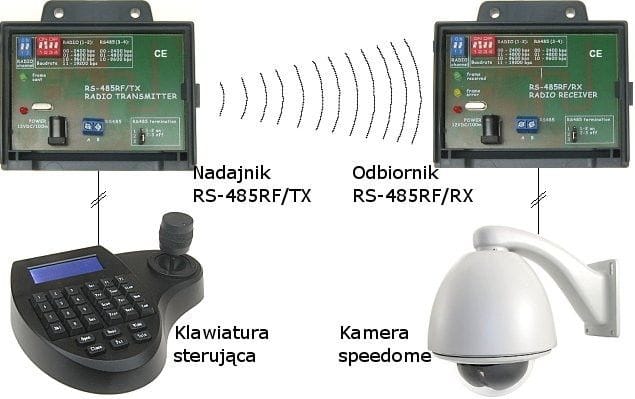

The device allows you to receive data by radio and forward them via a two-wire RS-485 mediumIn cooperation with the RS-485RF/P remote control, it allows you to control PAN/TILT/ZOOM/FOCUS ptz cameras, while with the RS-485RF/TX transmitter it allows you to transfer any RS-485 data at speeds of 2400, 4800, 9600bpsThis connection is completely transparent, it does not matter what data and in which system it is transmitted

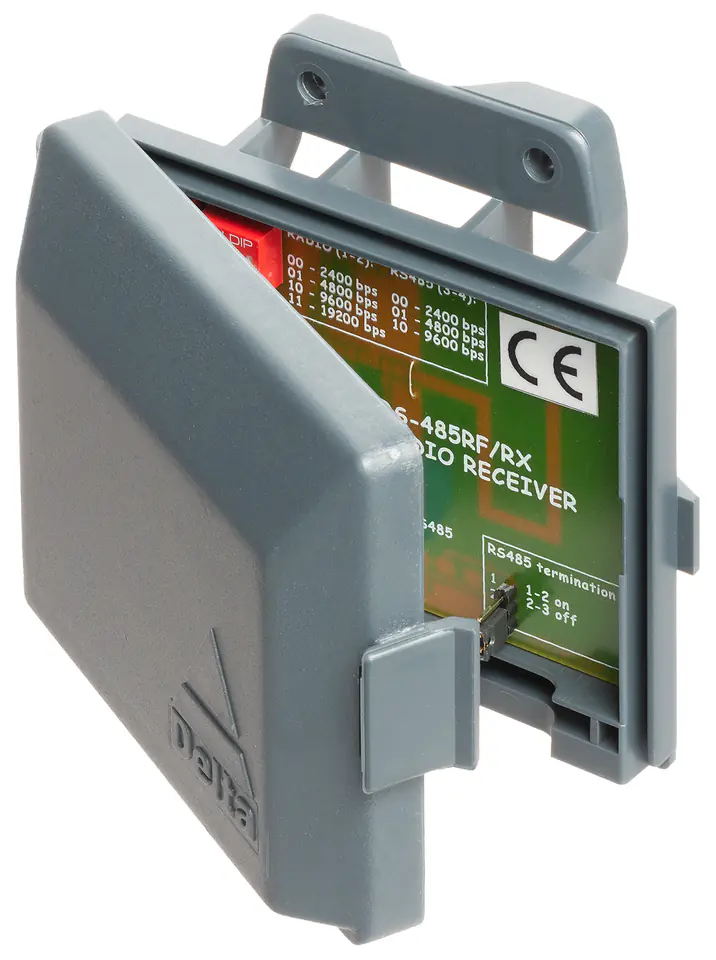

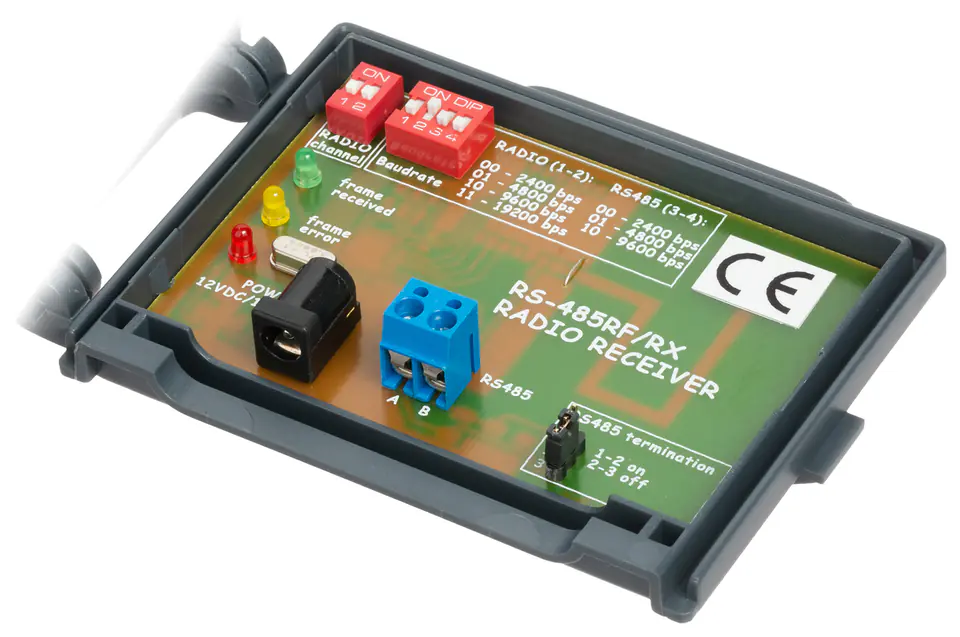

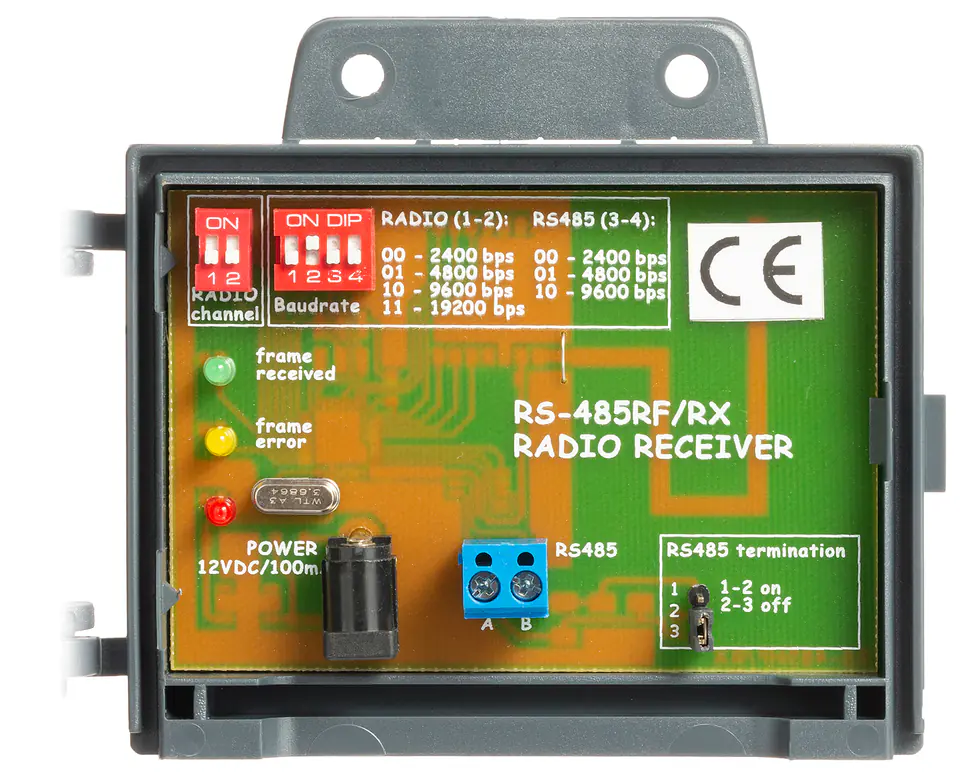

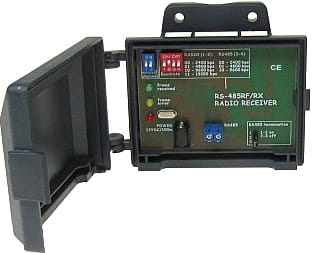

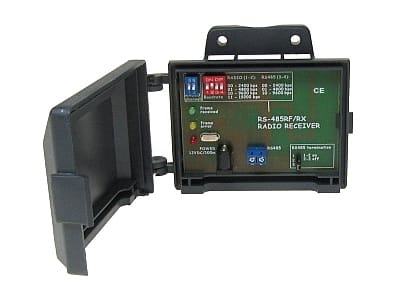

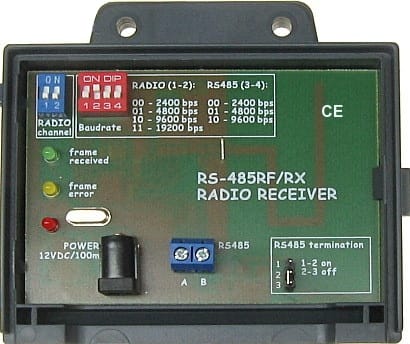

RS-485RF/RX RADIO RECEIVER
€39.96
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- RS-485RF/RX / 5902887016486
Share this product:
Specification
| 0.08 kg: | Scales: |
|---|---|
| 100 m in open area (for speed 4800bps): | Transmission range: |
| 112 x 37 x 91 mm: | Dimensions: |
| 12 vdc / 0.1 a: | Power: |
| 2.1/5.5 mm socket: | Power connection type: |
| 2400, 4800, 9600 bit/s: | RS-485 transmission speed: |
| 2400, 4800, 9600, 19200 bit/s: | Radio transmission speed: |
| 256: | Number of operated turntables: |
| 3 years: | Warranty: |
| 4 pcs.: | Number of channels: |
| 868 mhz: | Frequency range: |
| Delta: | Manufacturer / Brand: |
| Terminal block: | Control connection type: |
| Transparent device: | Available protocols: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
