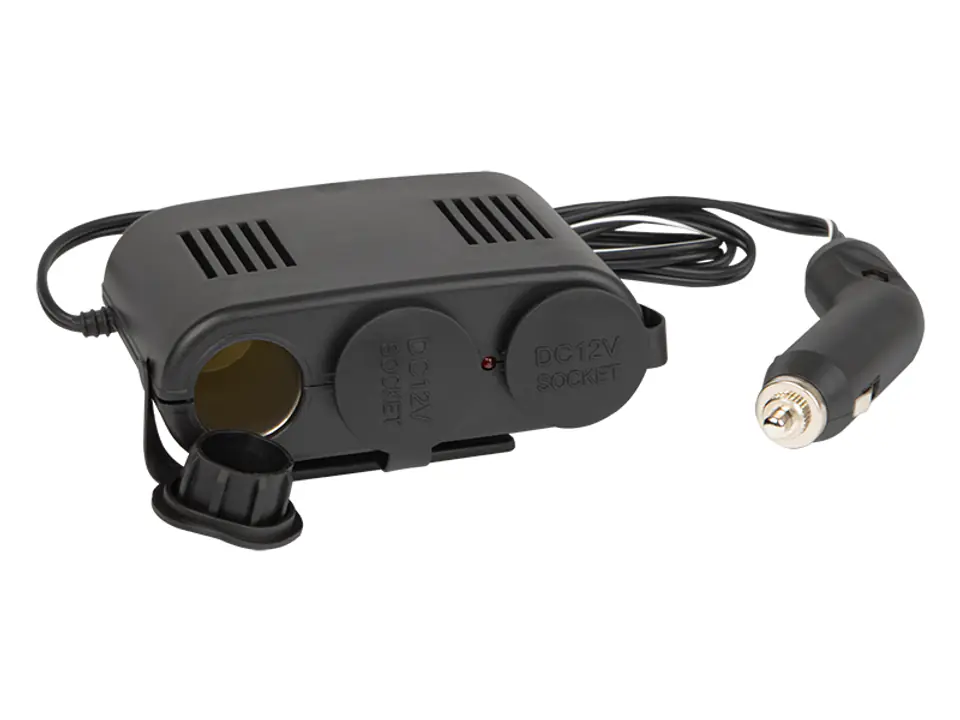

Car cigarette lighter splitter for 3 sockets on the CS-24 cable
A characteristic feature of the CS-24 splitter is the housing of the cigarette lighter sockets in metallic brown color, additionally equipped with a mounting plate with a latch. Splitter designed for car installation 12V
and 24V. The plug fits standard car cigarette lighter sockets with a diameter of 21 mm. The splitter has short-circuit protection in the form of a replaceable WTA quick glass fuse.
Product features:
- high quality of workmanship
- 3 sockets closed with rubber plugs
- socket housing in metallic brown color
- socket housing equipped with a snap-on mounting plate
- possibility of connecting several devices at the same time
- compatible with 12V and 24V car installations
- voltage indicator on the plug and socket housing in the form of a red diode
- thick resistant cable
- very easy to assemble
- compact dimensions and modern design
Technical parameters:
- voltage: 12V/24V
- maximum output current: up to 10A (total)
- protection: WTA glass tubular fuse Ø5 x 20 mm
- plug dimensions: Ø20 x 85 mm
- socket diameter: Ø21 mm
- dimension of the socket housing height width depth: 75 x 100 x 44 mm
- cable length approx.: 90 cm

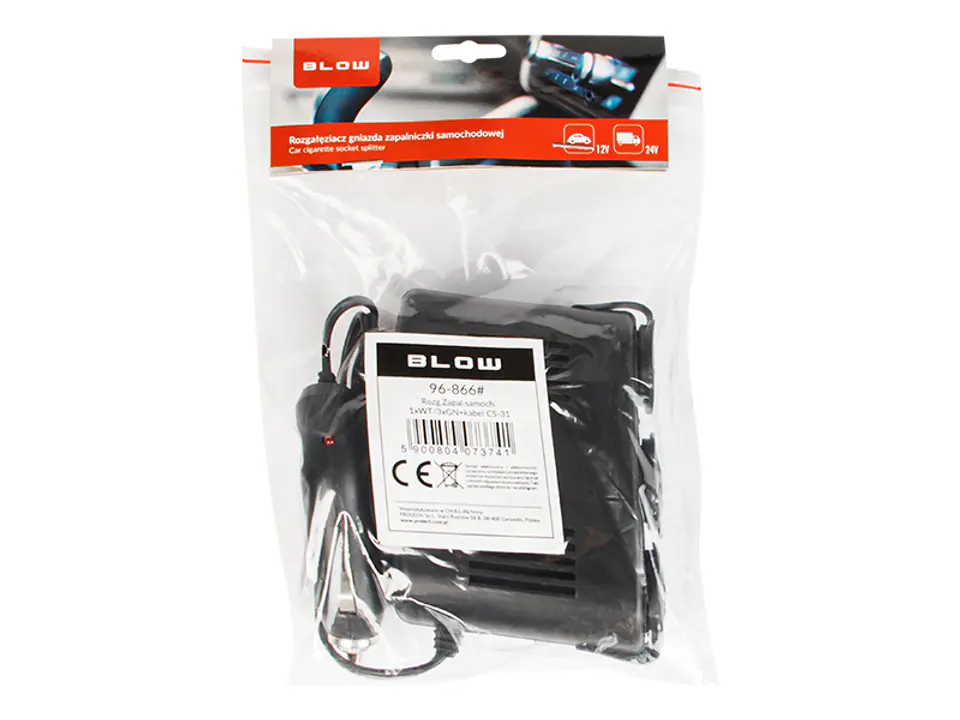

- packaging: blister with pendant
- package dimensions height x width: 200x170 mm
