3g: | No |
---|
3g/4g usb modem compatibility: | No |
---|
4g: | No |
---|
Ac adapter: | yes |
---|
Ac adapter included: | Yes |
---|
Antenna: | 2 external antennas |
---|
Antenna design: | External |
---|
Antenna type: | 2 x 5 dBi Omnidirectional Antenna |
---|
Antennas quantity: | 2 |
---|
Basic wi-fi standard: | Wi-Fi 4 (802.11n) |
---|
Baud: | 300 Mbps |
---|
Buttons: | WPS/Reset button |
---|
Cables: | LAN (RJ-45) |
---|
Cables included: | LAN (RJ-45) |
---|
Cabling technology: | 10/100Base-T(X) |
---|
Certificates: | FCC, CE, RoHS |
---|
Colour: | white |
---|
Communication standards: | IEEE 802.11g, IEEE 802.11b, IEEE 802.11n |
---|
Configuration and management: | yes |
---|
Dc output socket: | yes |
---|
Dc-in jack: | Yes |
---|
Ddns: | No-IP DynDNS Comexe |
---|
Depth: | 128 mm |
---|
Depth (mm): | 128 |
---|
Destiny: | WiFi, xDSL |
---|

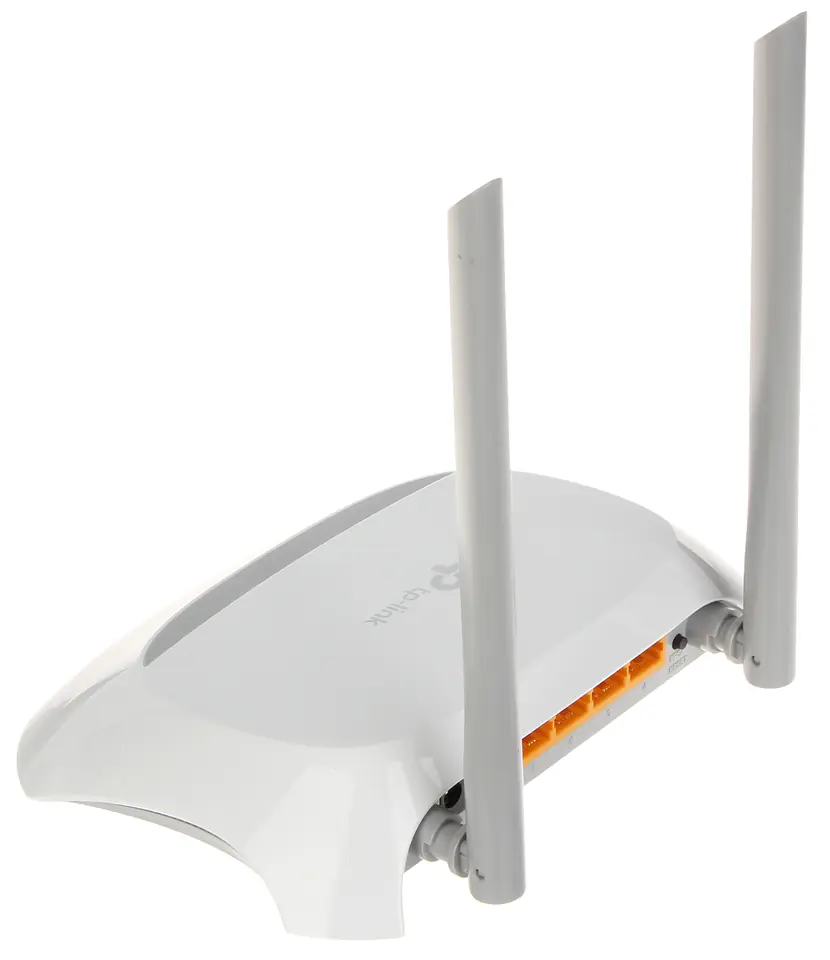

Device type: | Wireless router |
---|
Dhcp client: | Yes |
---|
Dhcp client: | yes |
---|
Dhcp server: | Yes |
---|
Dhcp server: | yes |
---|
Dimensions: | 182 x 128 x 35 mm |
---|
Dmz support: | Yes |
---|
Dos attack prevention: | Yes |
---|
Dsl wan: | No |
---|
Encryption / security: | 128-bit WEP, WPA, WPA2, 64-bit WEP, WPA2-PSK, WPA-PSK |
---|
Encryption and security: | WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
---|
Ethernet lan: | Yes |
---|
Ethernet lan (rj-45) ports: | 4 |
---|
Ethernet lan data rates: | 100, 10 |
---|
Ethernet lan data transfer speed: | 100 Mbit/s, 10 Mbit/s |
---|
Ethernet lan interface type: | Fast Ethernet |
---|
Ethernet lan ports (rj-45) quantity: | 4 |
---|
Ethernet wan: | Yes |
---|
Filtering: | Yes |
---|
Firewall: | Yes |
---|
Frequency range: | 2.4 GHz ... 2.4835 GHz |
---|
Further reading: | Certificates: CE, RoHS |
---|
Height: | 35 mm |
---|
Height (mm): | 35 |
---|
Lan connectors: | 4x 10/100 Mbps |
---|
Lan ports: | 1 x 10/100 Mbps - WAN, 4 x 10/100 Mbps - LAN |
---|
Led indicators: | LAN, Power, WLAN |
---|
Led lights: | Power, WiFi, LAN, INTERNET, WPS |
---|
Leds: | LAN, Power, WLAN |
---|
Line: | no |
---|
Linux operating systems supported: | Yes |
---|
Mac address filtering: | Yes |
---|
Mac compatibility: | Yes |
---|
Mac compatible: | yes |
---|
Management by website: | yes |
---|
Management interface: | Web browser |
---|
Manufacturer's warranty: | 36 months |
---|
Memory card slot(s): | No |
---|
Network standards and protocols: | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
---|
Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b |
---|
Number of antennas: | 2 |
---|
Number of rj45 (lan) connectors: | 4x RJ-45 10/100Mbps LAN |
---|
Operating frequency: | 2.4 GHz |
---|
Operating modes: | Router |
---|
Operating relative humidity (h-h): | 10 - 90% |
---|
Operating temperature: | 0 °C ... 40 °C |
---|
Operating temperature (t-t): | 0 - 40 °C |
---|
Operating voltage: | 9 volts |
---|
Other parameters: | Wireless transmission switch |
---|
Output: | 0.6 A |
---|
Output current: | 0.6 A |
---|
Output voltage: | 9 V |
---|
Permissible relative ambient humidity: | 10 % ... 90 % (non-condensing) |
---|
Permissible relative humidity: | 5 - 90% |
---|
Port usb: | no |
---|

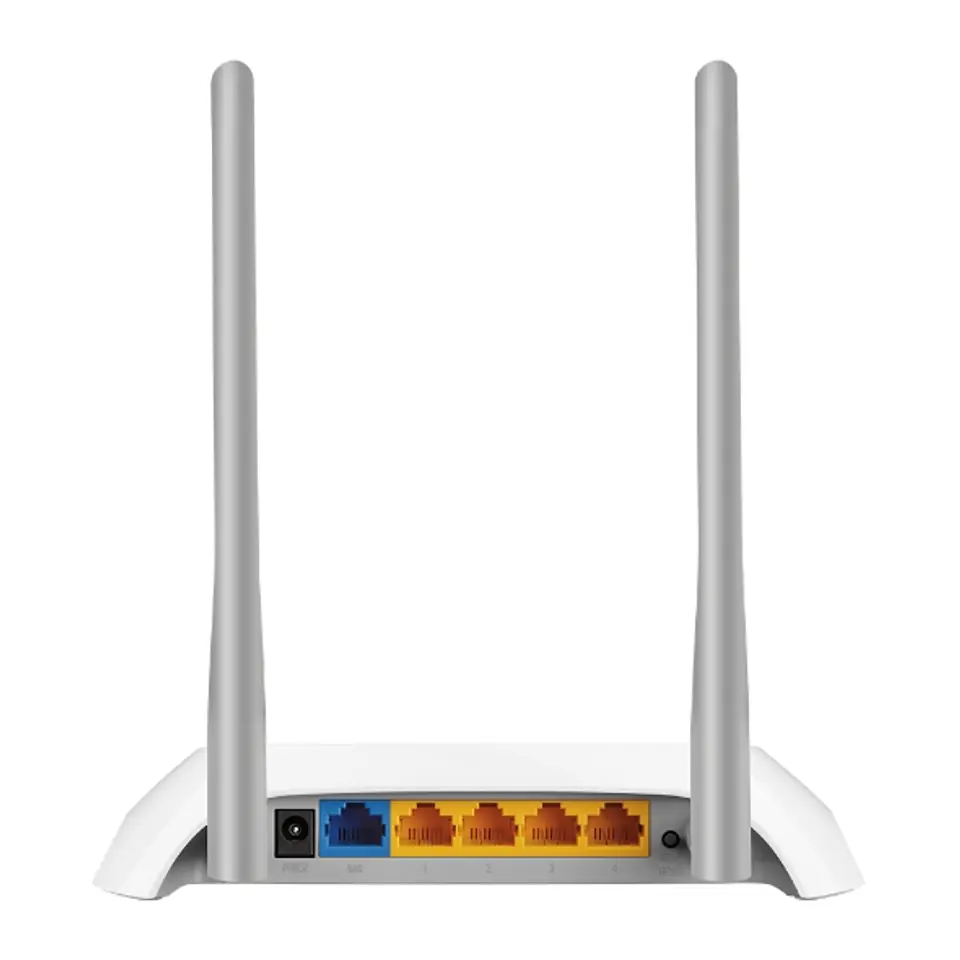

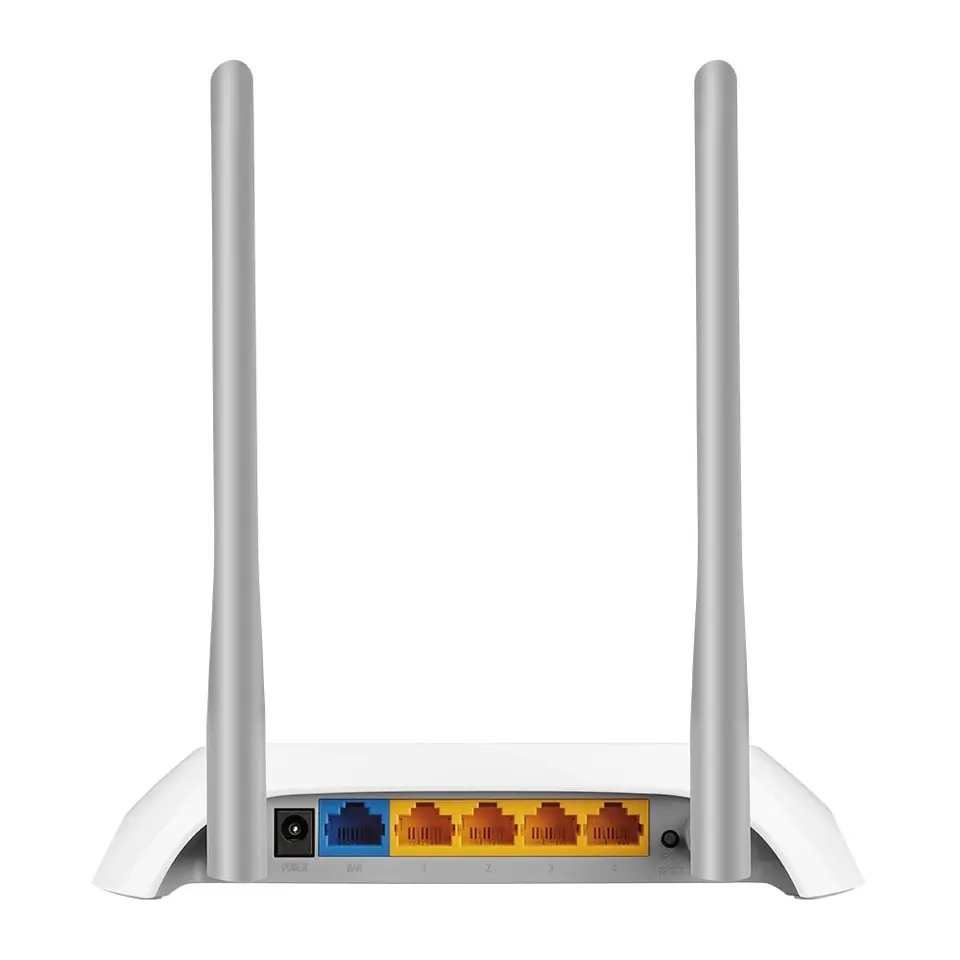

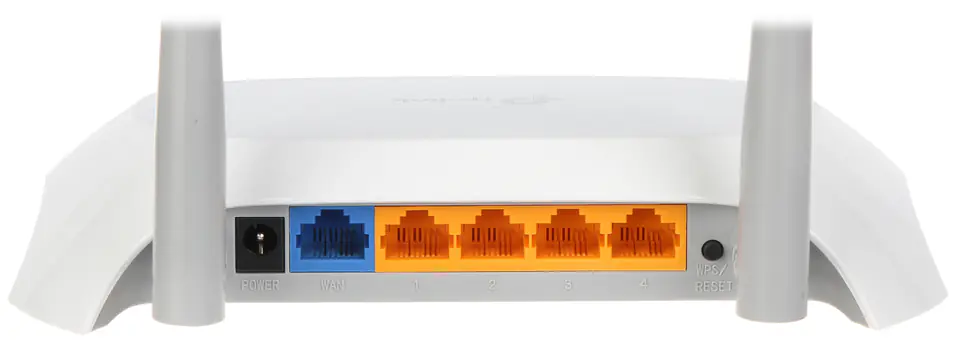

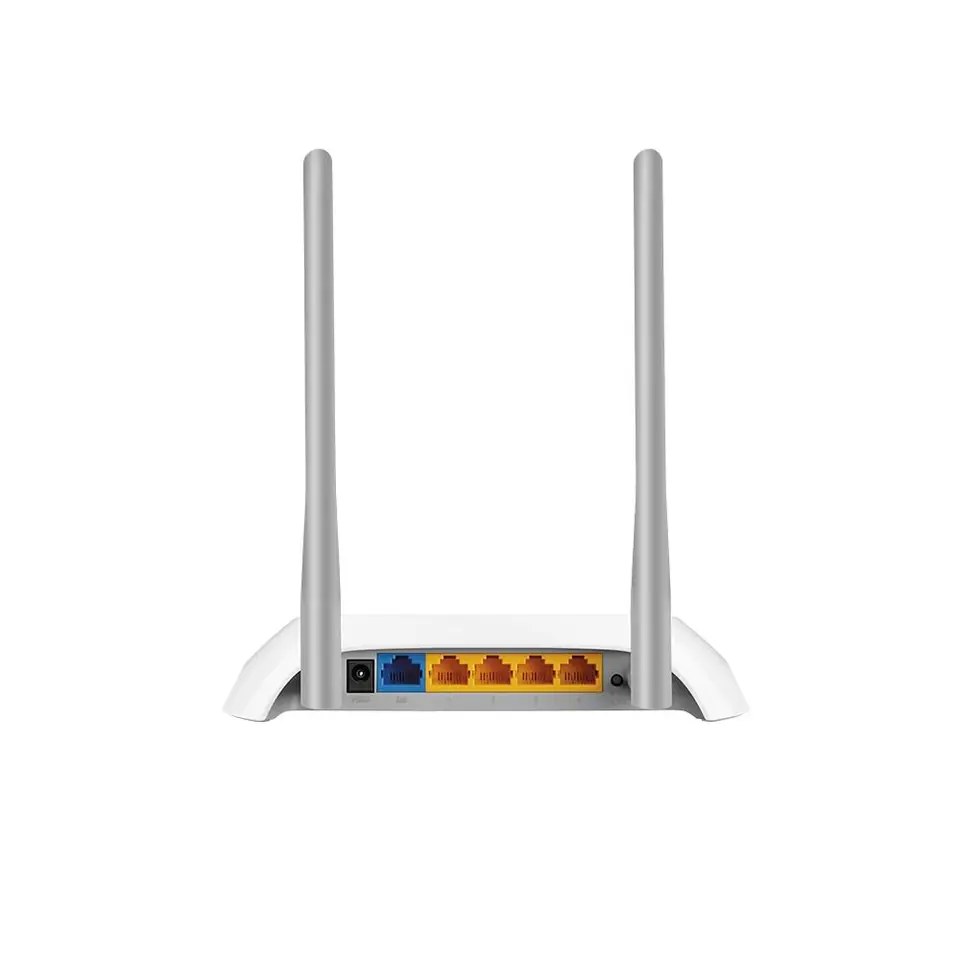

Ports: | 4x RJ-45 10/100Mbps LAN | 1x RJ-45 10/100Mbps WAN |
---|
Power: | 9 V DC / 0.6 A (power adapter included) |
---|
Power source type: | DC |
---|
Power type: | DC |
---|
Prevention of dos attacks: | yes |
---|
Producer / brand: | TP-Link |
---|
Product colour: | White, Grey |
---|
Product depth: | 128 mm |
---|
Product height: | 35 mm |
---|
Product type: | Tabletop router |
---|
Product width: | 182 mm |
---|
Quality of service (qos) support: | Yes |
---|
Quick installation guide: | Yes |
---|
Quick installation guide: | yes |
---|
Relative humidity range: | 10 - 90% |
---|
Reset button: | Yes |
---|
Scales: | 0.18 kg |
---|
Security: | WEP 64/128-bit, WPA/WPA2, WPA-PSK/WPA2-PSKOnup protection against DoW attacksSPI address filteringIP address filteringHardware IP+MAC address binding at the port level |
---|
Security algorithms: | WPA-PSK, 128-bit WEP, WPA2-PSK, 64-bit WEP, WPA2, WPA |
---|
Security measures applied: | IP address filtering, WEP, WPA, WPA2, WPA2-PSK, MAC address filtering, SPI firewall, DoS protection |
---|
Selected features: | RESET button WPS button Built-in 4-port switch Guest network - separate and secure 2x2 MIMO guest network Smooth HD transmission - IGMP Proxy/Snooping, Bridge VLAN, Tag VLAN functions contribute to optimal IPTV transmission Enabling/disabling Bridge WDS wireless network QoS Statistics : WMM (Wi-Fi Multimedia), Bandwidth Control Static/Dynamic WAN Routing : PPPoE, PPTP, L2TP Access Control Remote Management - TR-069 DHCP Client List DMZ MAC Address Cloning Firewall Parental Control IPv4/IPv6 Port Forwarding |
---|
Signalling diodes: | yes |
---|
Sim card slot: | No |
---|
Standards: | IEEE 802.11 b/g/n |
---|
Storage relative humidity (h-h): | 5 - 90% |
---|
Storage temperature (t-t): | -40 - 70 °C |
---|
Supported linux operating systems: | yes |
---|
Supported network protocols: | IPv4, IPv6 |
---|
Supported windows operating systems: | Windows 10 Enterprise x64, Windows 7 Home Basic, Windows 8, Windows Vista Enterprise x64, Windows 8.1 Enterprise x64, Windows 10, Windows Vista Business, Windows Vista Home Basic, Windows Vista Ultimate x64, Windows 7 Professional, Windows 8.1, Windows Vista Home Premium, Windows Vista Home Basic x64, Windows 8.1 x64, Windows 7 Home Premium x64, Windows 7 Starter, Windows 7 Ultimate, Windows 8 Pro x64, Windows 8.1 Pro, Windows XP Home x64, Windows 10 Home, Windows 7 Home Basic x64, Windows 10 Home x64, Windows 7 Ultimate x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Starter x64, Windows Vista Enterprise, Windows 8.1 Enterprise, Windows 8.1 Pro x64, Windows Vista Business x64, Windows 10 Enterprise, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows 10 Education, Windows XP Home, Windows XP Professional, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Premium, Windows 10 Education x64, Windows XP Professional x64, Windows 7 Professional x64, Windows 8 Pro, Windows 2000, Windows 7 Enterprise, Windows Vista, Windows 7 x64, Windows 8 Enterprise, Windows Vista x64, Windows 2000 Professional, Windows 8 Enterprise x64, Windows 7, Windows 7 Enterprise x64 |
---|
Supports vpn: | PPTP, L2TP, IPSec |
---|
Temperature range (operation): | 0 - 40 °C |
---|
Temperature range (storage): | -40 - 70 °C |
---|

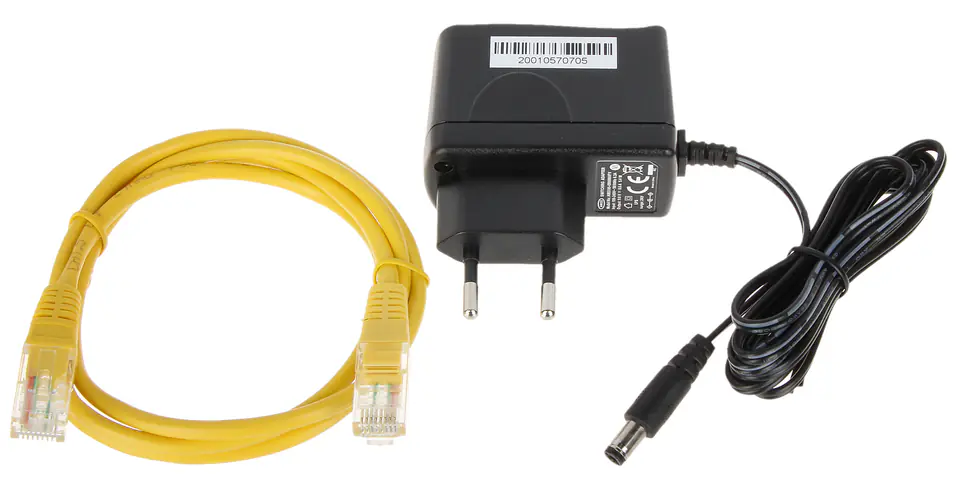

The set includes: | Power adapter, RJ45 Ethernet cable, Quick Setup Guide |
---|
Top wi-fi standard: | Wi-Fi 4 (802.11n) |
---|
Transmitter power: | .max. 20 dBm |
---|
Universal plug and play (upnp): | Yes |
---|
Usb 3g/4g connection: | no |
---|
Usb port: | No |
---|
Wan connectors: | 1x 10/100 Mbps |
---|
Warranty: | 3 years |
---|
Web-based management: | Yes |
---|
Wi-fi band: | Single-band (2.4 GHz) |
---|
Wi-fi frequency: | Single frequency (2.4 GHz) |
---|
Wi-fi standards: | 802.11g, Wi-Fi 4 (802.11n), 802.11b |
---|
Width: | 182 mm |
---|
Width (mm): | 182 |
---|
Windows operating systems supported: | Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 8 x64, Windows Vista Business x64, Windows 10 Education, Windows XP Professional, Windows Vista Home Premium, Windows XP Home, Windows Vista Enterprise, Windows 8.1 Enterprise, Windows 7 Professional, Windows 7, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows Vista x64, Windows XP Professional x64, Windows Vista Enterprise x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 2000 Professional, Windows 8 Pro x64, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 Enterprise x64, Windows Vista Home Basic, Windows 10 Home x64, Windows 8, Windows 10 Pro x64, Windows 8 Enterprise, Windows Vista Home Basic x64, Windows 7 Professional x64, Windows Vista Home Premium x64, Windows 10 Education x64, Windows XP Home x64, Windows 10, Windows Vista Ultimate x64, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 10 Home, Windows 7 Starter x64, Windows Vista Business, Windows 8.1, Windows Vista Ultimate, Windows 7 Ultimate x64, Windows Vista, Windows 7 x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 2000 |
---|
Wired lan: | yes |
---|
Wireless networking: | yes |
---|
Wireless networking standards: | IEEE 802.11n |
---|
Wiring technology: | 10/100Base-T(X) |
---|
Wlan data transfer indicator (first band): | 300 Mbit/s |
---|
Wlan data transfer indicator (max): | 300 Mbit/s |
---|
Wlan data transfer rate (first band): | 300 Mbit/s |
---|
Wlan data transfer rate (max): | 300 Mbit/s |
---|
Wps button: | yes |
---|
Wps push button: | Yes |
---|
