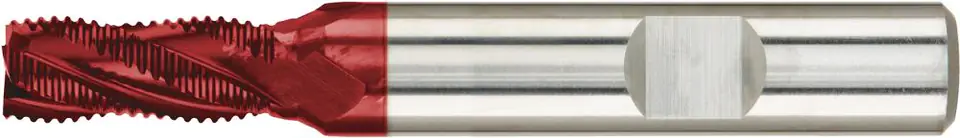

Roughing cutter, 4-6 blade, HR type, short execution, HSS-E PM, Fire coating
Design: up to 25mm diameter suitable for drilling.
HSS-E PM is characterized by high ductility (greater edge stability and resistance to abrasive wear) and longer durability.
It works well in unstable conditions.
Application: designed for roughing steel with a strength of up to 1000 N/mm2.
Roughing cutter DIN844 HSSE-PM FIRE,type NRf 10mm GÜHRING
€59.17
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9036600100000 / 4031093385121
Share this product:
Specification
| Aluminium > 8% silicon: | 150 |
|---|---|
| Cast iron gg/gts: | 60 |

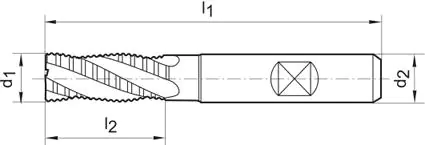

| Cutting part length l2: | 22 mm |
| Diameter d1 = k12: | 10 mm |
| Ggg cast iron: | 48 |
| Inox austenite.: | 28 |
| Inox duplex: | 22 |
| Inox ferrite./martenz.: | 35 |
| Number of blades: | 4 |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 64 |
| Steel < 1000 n/mm2 fz: | 0.053 mm/rev. |
| Steel < 1400 n/mm2: | 51 |
| Steel < 700 n/mm2: | 80 |
| Titanium > 850 n/mm2: | 30 |
| Total length l1: | 72 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
