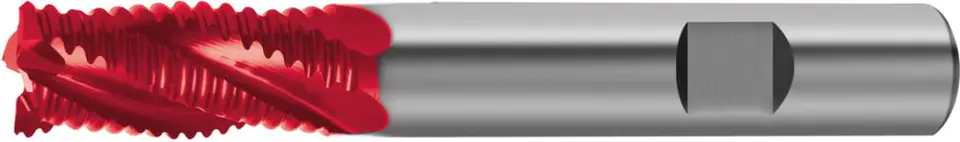

Roughing cutter, HSS Co8, type NR, 4-blade, Fire coating
Execution: with center blade, suitable for drilling.
Application: for circumferential and face milling.
Roughing cutter DIN844 HSSCo8 FIRE,type NR,6mm GÜHRING
€40.01
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9036900060000 / 4031093386579
Share this product:

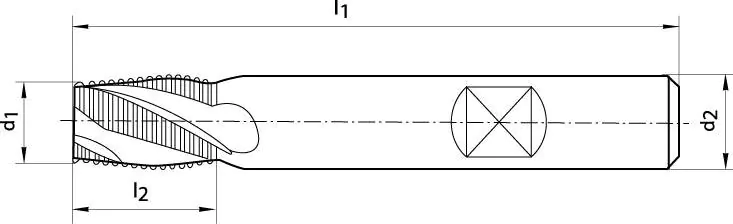

Specification
| Aluminium > 8% silicon: | 110 |
|---|---|
| Cutting part length l2: | 13 mm |
| Diameter d1 = k12: | 6 mm |
| Inox duplex: | 35 |
| Number of blades: | 4 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 44 |
| Steel < 1400 n/mm2: | 35 |
| Steel < 1400 n/mm2 fz: | 0.028 mm/rev. |
| Steel < 700 n/mm2: | 55 |
| Titanium > 850 n/mm2: | 22 |
| Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
