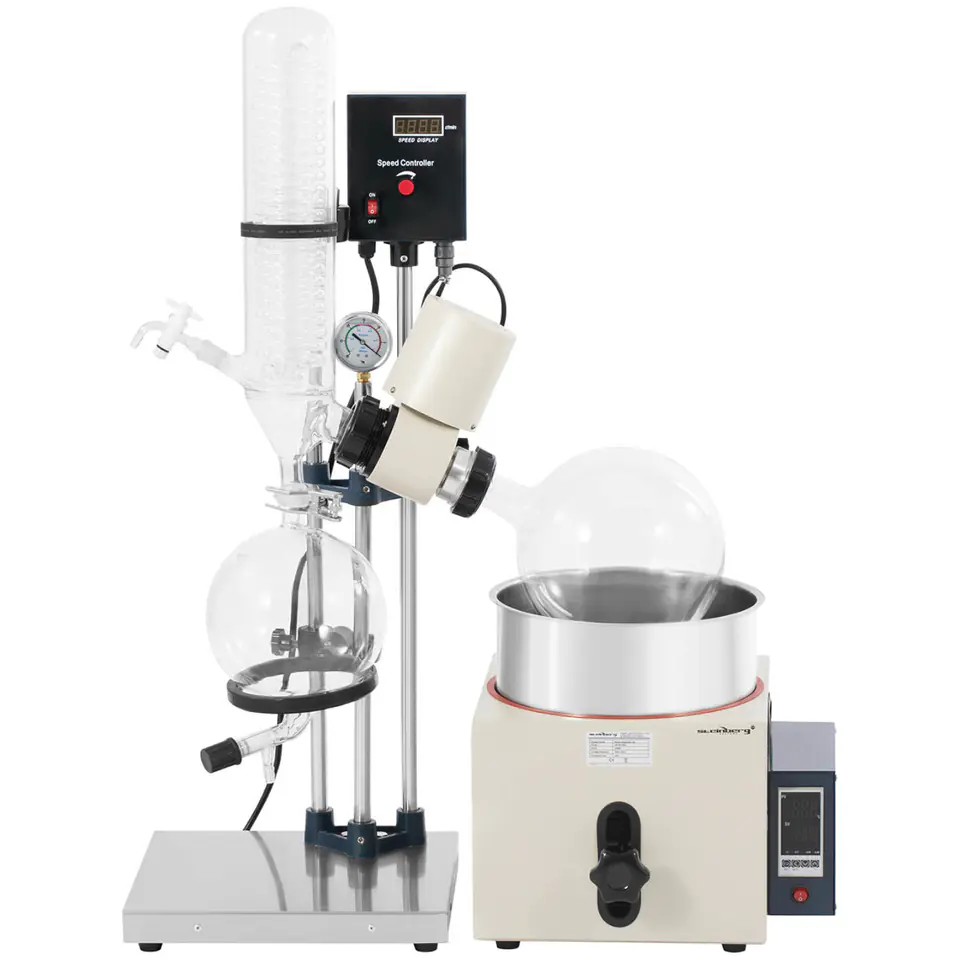

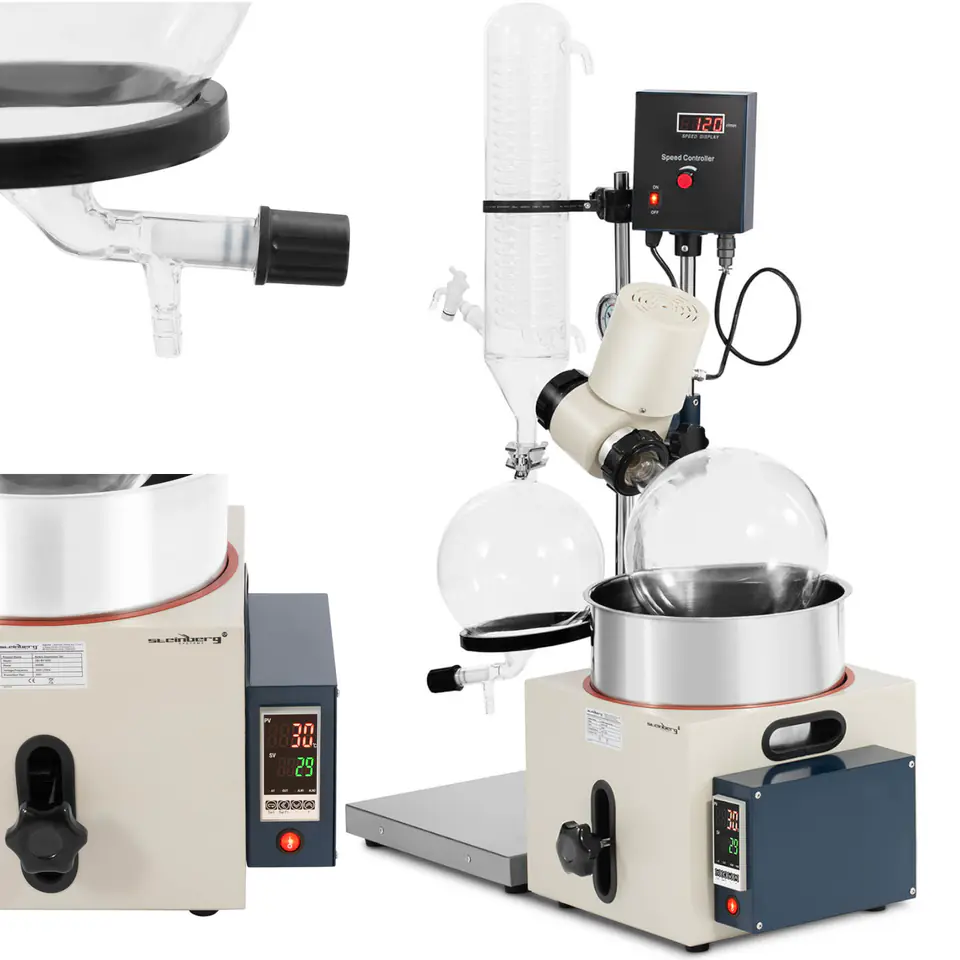

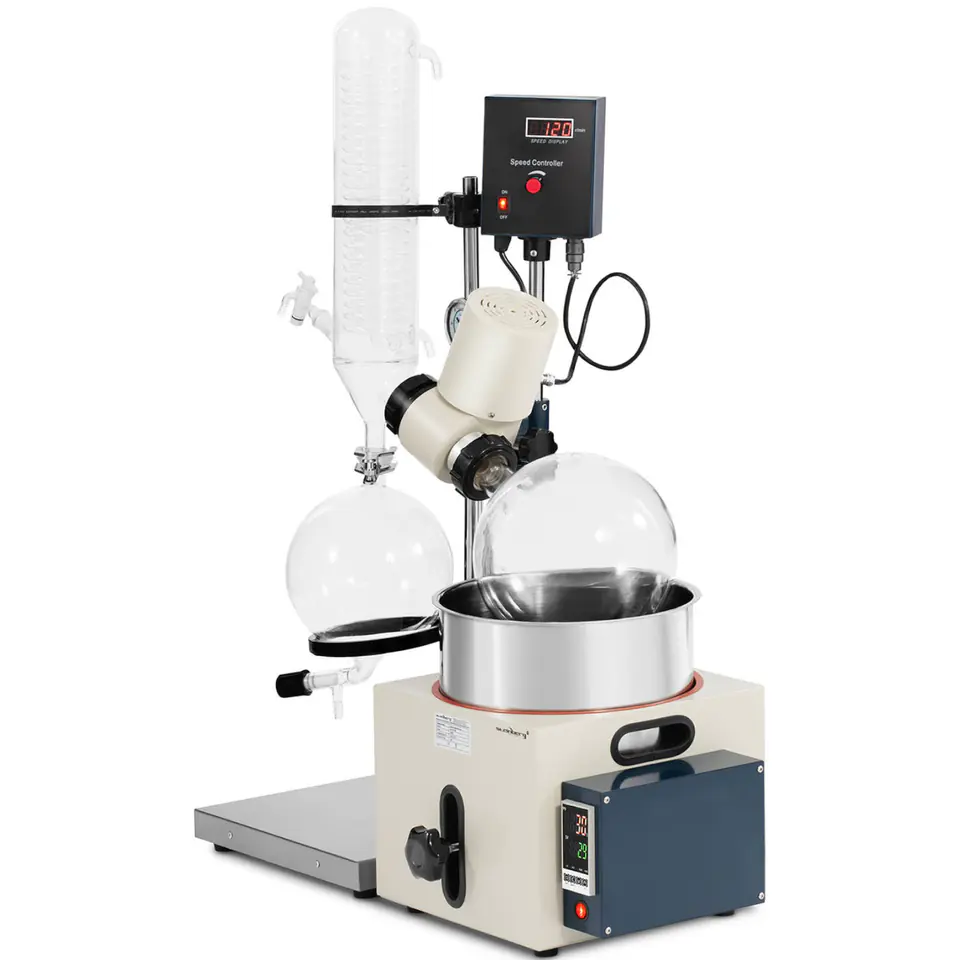

10030662 Chonberg Systems vacuum evaporator for concentration and purification of easily decomposing denatured biological productsHigh vacuum level - 0.098 MPain control 0-99C with accuracy +/-1CscreatorCyfrowic displays Adjustable immersion angle5 l ergonomic handles handheld lift40 WProduct specifications:
- - Efficiency - a large amount of distillate thanks to the receiving stock with a capacity of 2 l,
- - Accuracy - precise temperature setting,
- - Strength - powerful motor ensures smooth operation,
- - Precision - constant rotational speed for optimal results,
- -Speed of action - evaporates up to 1.5 l/h.
- - Voltage [V] - 230
- - Temperature accuracy [C] - +/-1
- - Temperature range [C] - 0-99
- - Rotational speed [rpm] - 120
- - Material - SS304 bath material, combined bath and Teflon material + GG-17 glass
- - Frequency [Hz] - 50
- - Engine power [W] - 40
- - Receiving flask [l] - 2
- - Rotary flask [l] - 5
- - Bath power [W] - 1500
- - Bath capacity [l] - 5
- - Evaporation rate [l / h] - 44317
- - Lifting [mm] - 120
- - Vacuum level [MPa] - 0.098
- - Dimensions (LxWxH) [cm] - 80 x 40 x 100
- - Weight [kg] - 33
- - Shipping dimensions (LxWxH) [cm] - 99 x 62 x 47
- - Shipping weight [kg] - 40.35
- - Vacuum evaporator
- - Main bracket - set
- - Engine - set

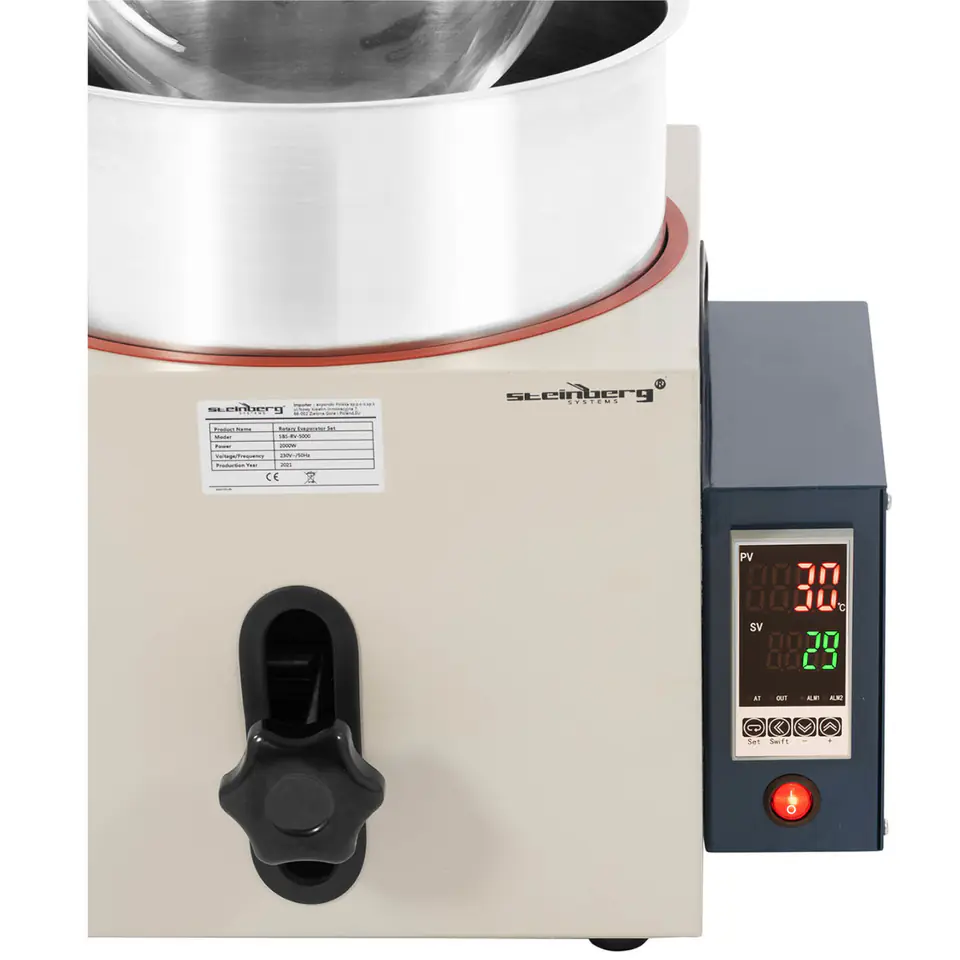

- - Water bath - set

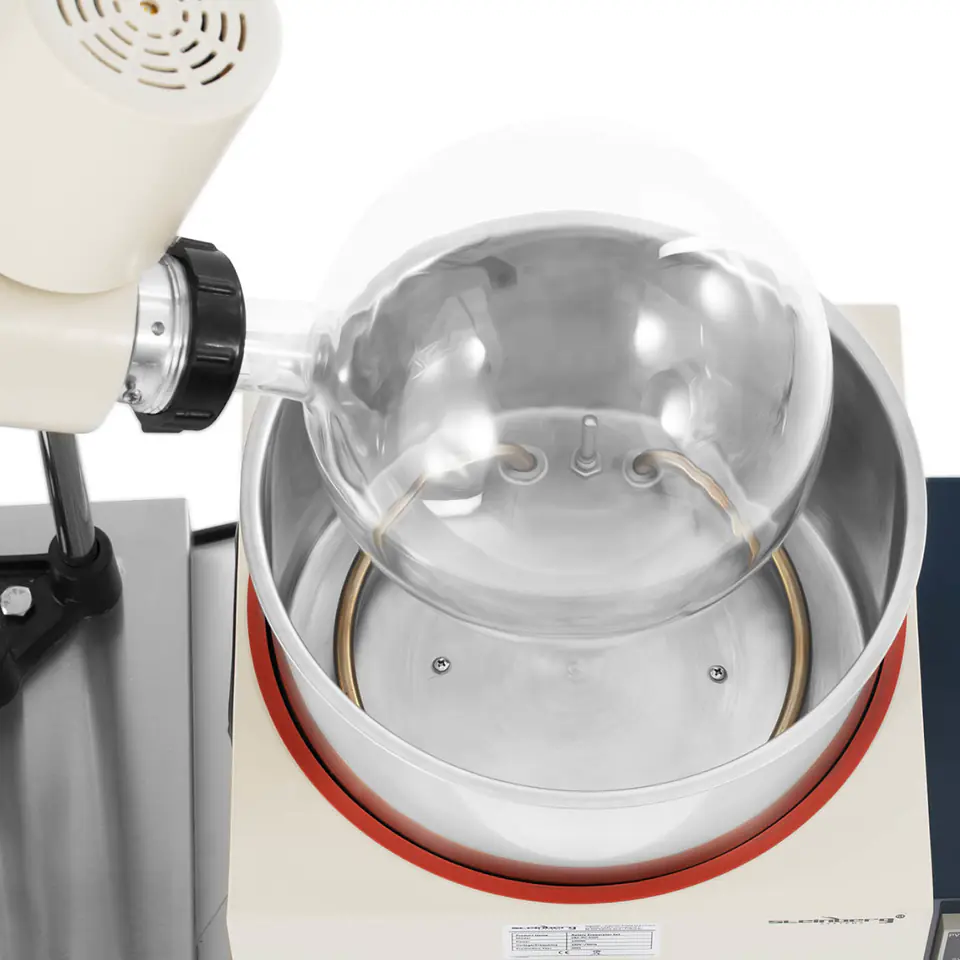

- - Swivel stock 5 l

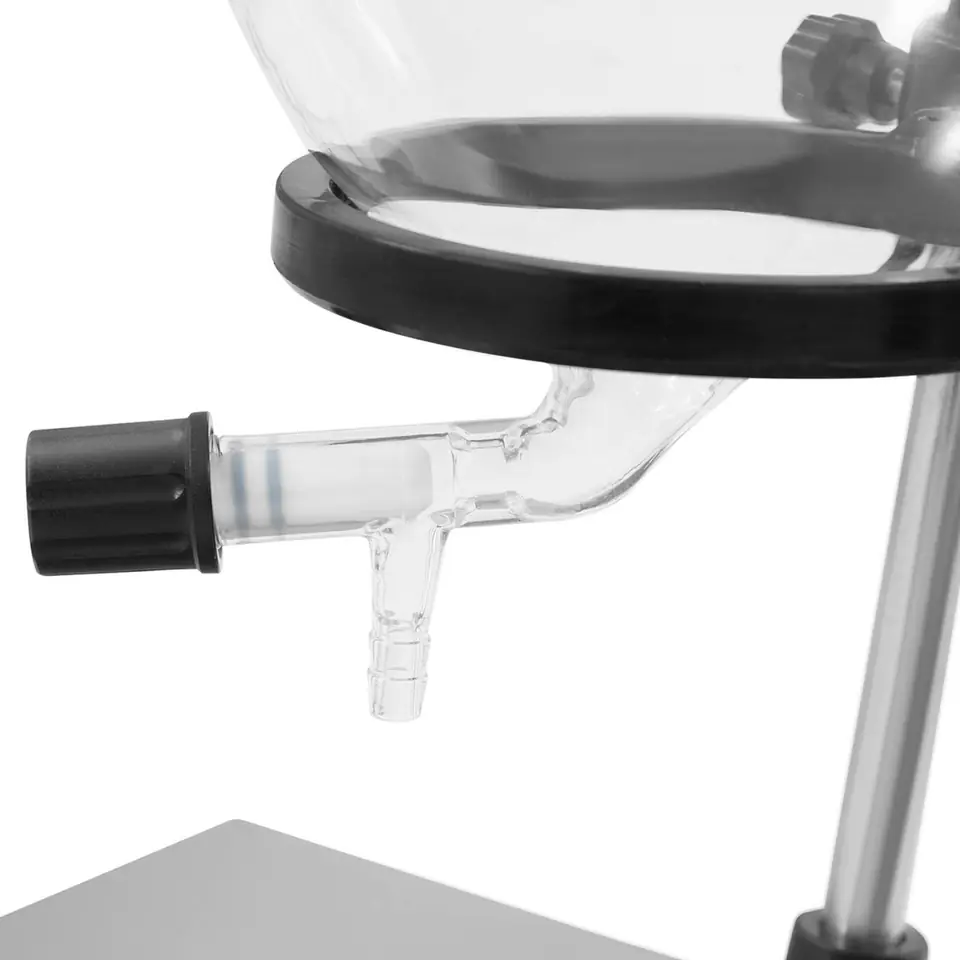

- - Receiving flask 2 l
- - Main condenser Ø85 x 460 mm
- - Supply valve
- - Holder for receiving stock

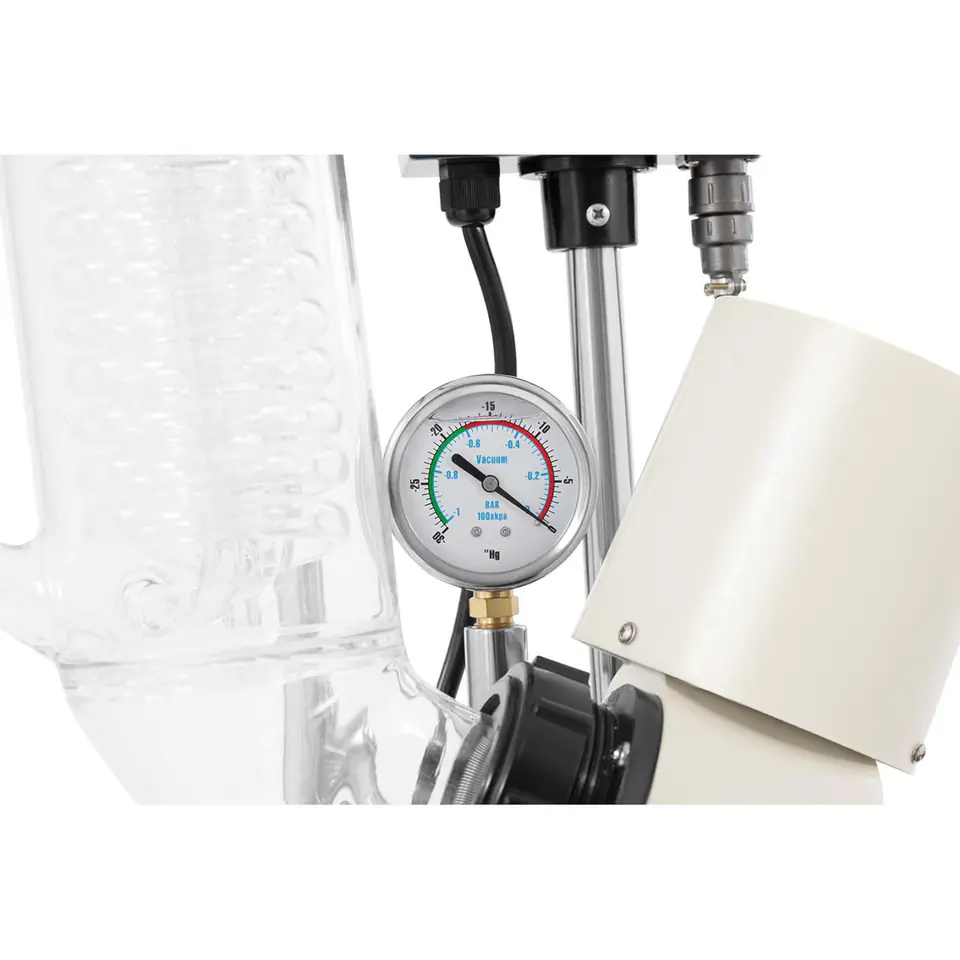

- - Vacuum meter - set

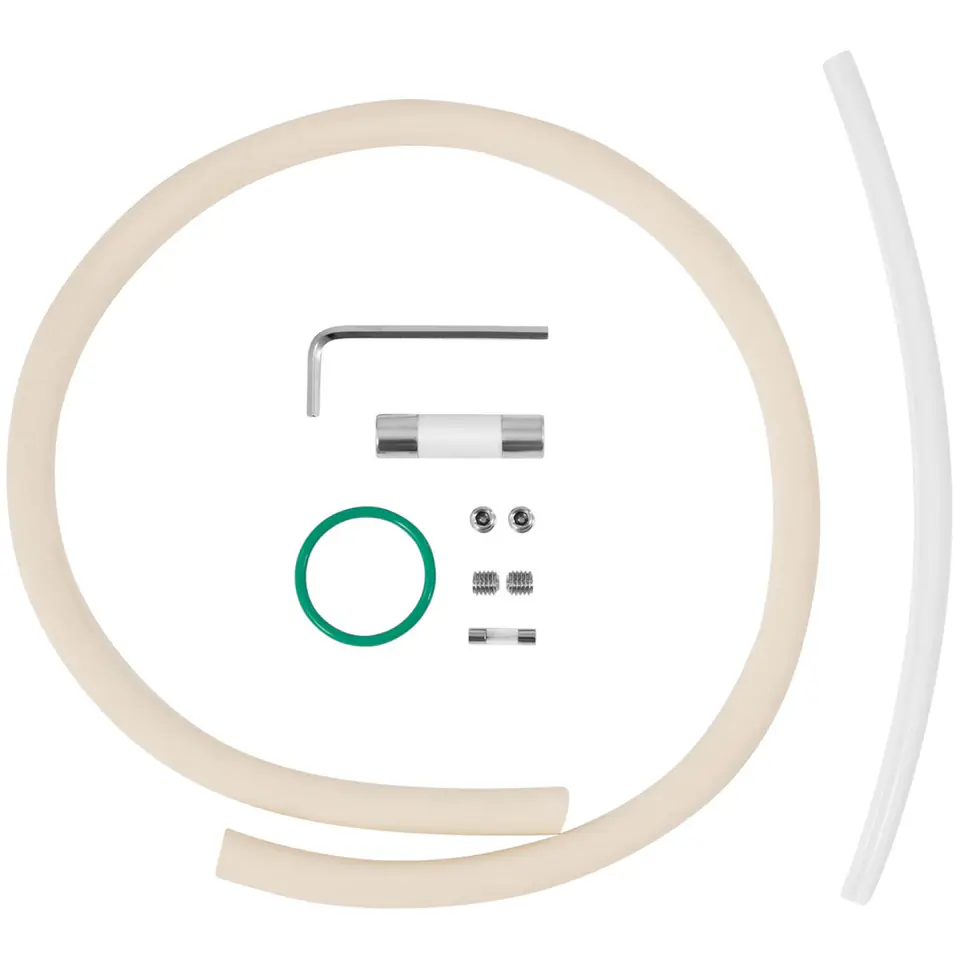

- - PTFE cable 20 cm (Ø8 x 6)
- - Clip for ball mill

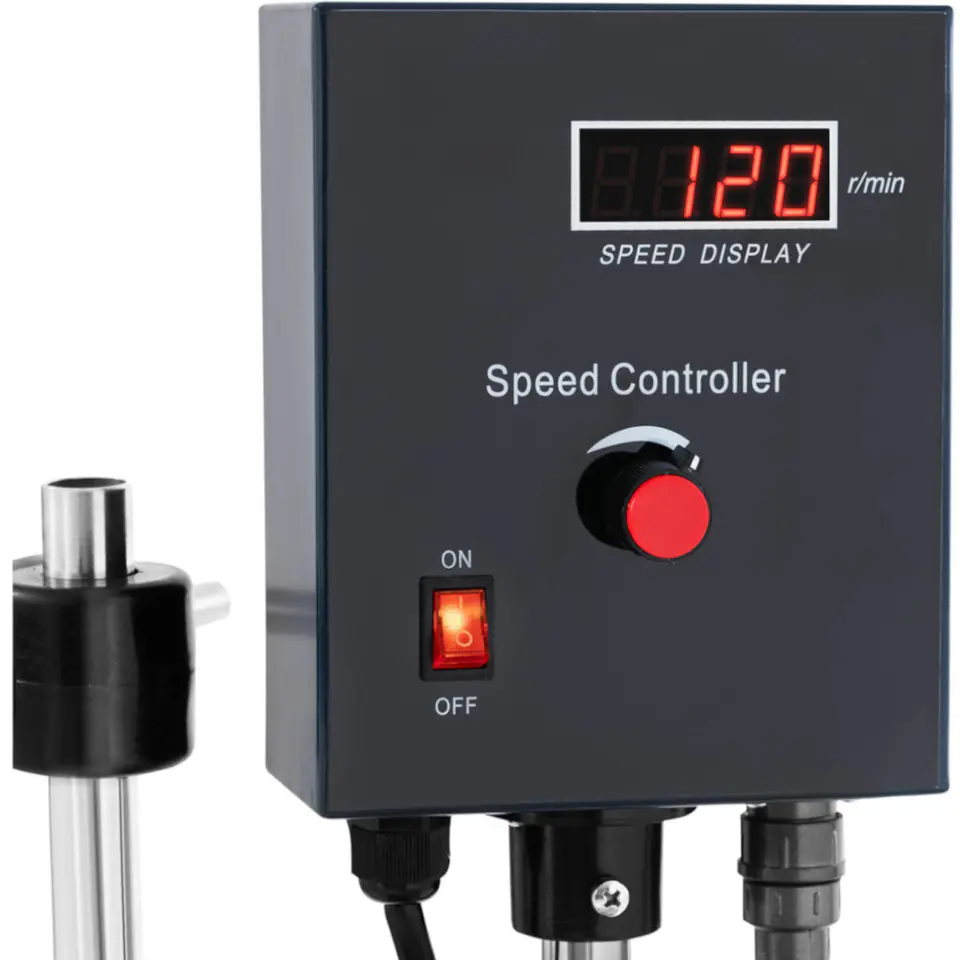

- - Regulator
- - O-ring 43 mm
- - Key
- - Fuses - 5 pcs. Manual
