Manufacturer no: 10030663

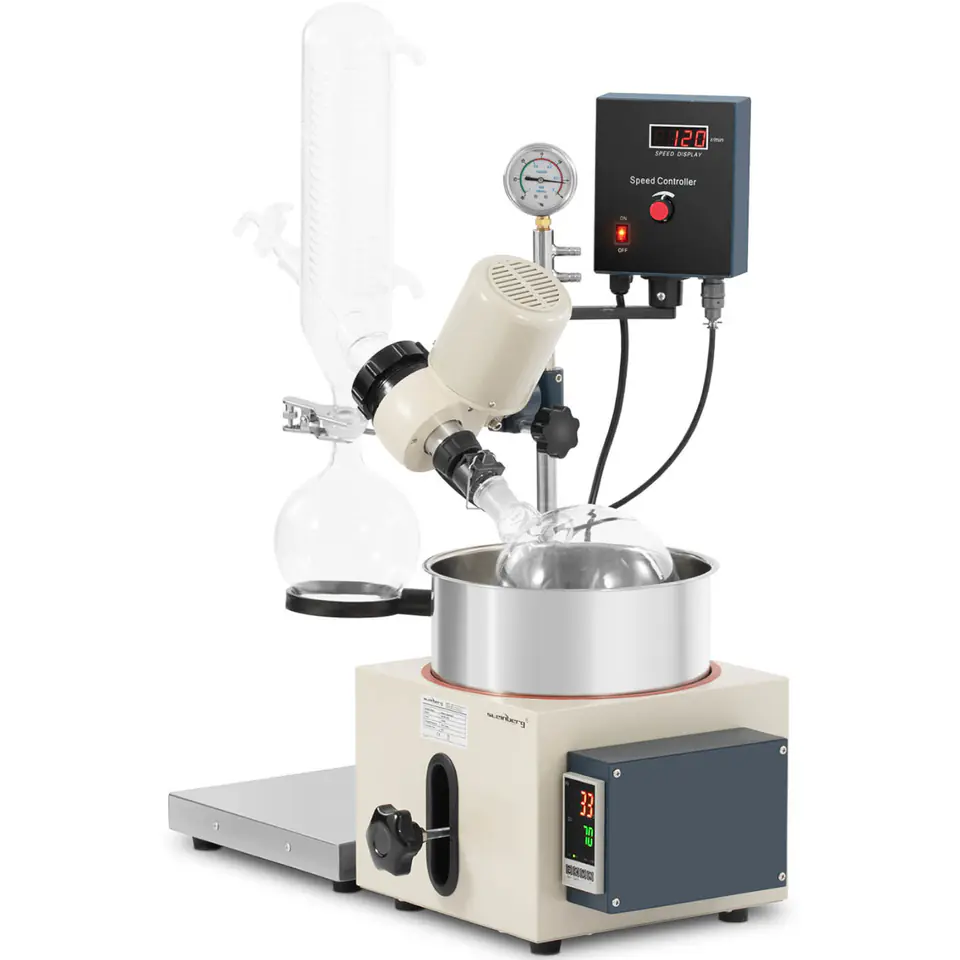

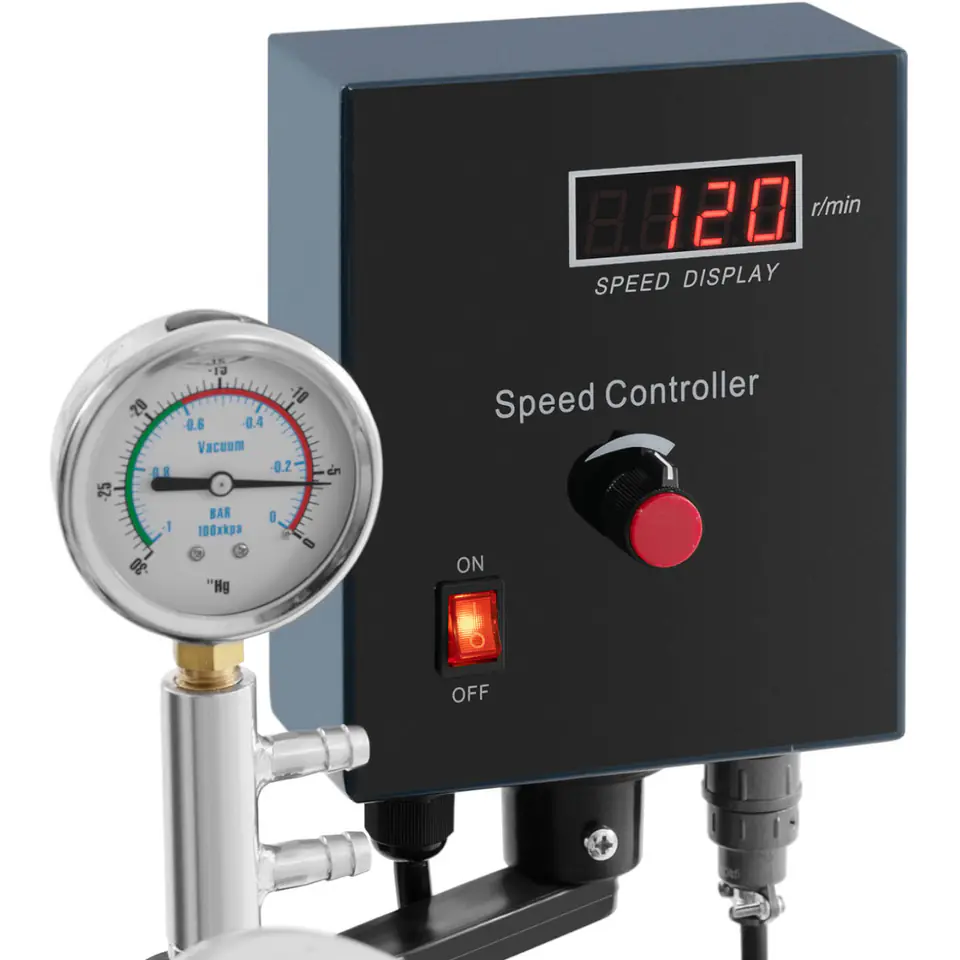

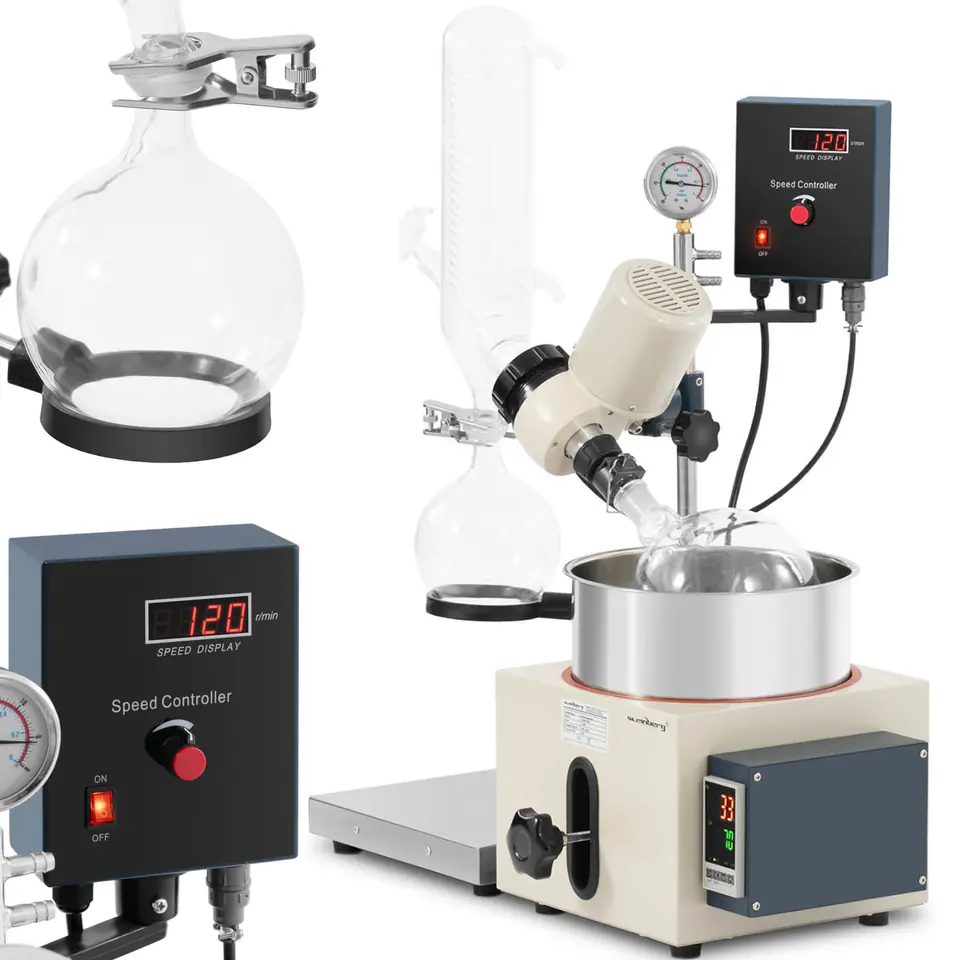

The Steinberg Systems vacuum evaporator is ideally suited in the laboratory, in the chemical, pharmaceutical or scientific research industries for evaporation of solvent by heating under reduced pressure. It is particularly suitable for the concentration and purification of easily decomposing denatured biological products that do not react easily with various substances. High vacuum level - 0.098 MPa ensures high performance of the equipment. The device is equipped with a vacuum controller. The temperature range is 0-99C with an accuracy of +/-1C. The operation of an efficient condenser translates into a high recovery rate. The digital displays operate at rotational speed (0-120 rpm) and heating bath temperature, which facilitates control of the distillation process. The evaporator has a temperature limiter. The supply valve can use continuous power supply, which provides a large condensation area. The bathhouse is equipped with ergonomic carrying handles, as well as a manual lift for precise positioning of the stocks. The 40 W motor is compact in size. It has an overload protection function. The stainless steel bath tank facilitates the operation and maintenance of the vacuum evaporator.
Product features:
- - Efficiency - a large amount of distillate thanks to a 1 l receiving flask,
- - Accuracy - precise temperature setting,
- - Strength - powerful motor ensures smooth operation,
- - Precision - constant rotational speed for optimal results.
- - Model - SBS-RV-2000
- - Voltage [V] - 230
- - Temperature accuracy [C] - +/-1
- - Temperature range [C] - 0-99
- - Rotational speed [rpm] - 120
- - Material - SS304 bath material, combined bath and Teflon material + GG-17 glass
- - Frequency [Hz] - 50
- - Engine power [W] - 40

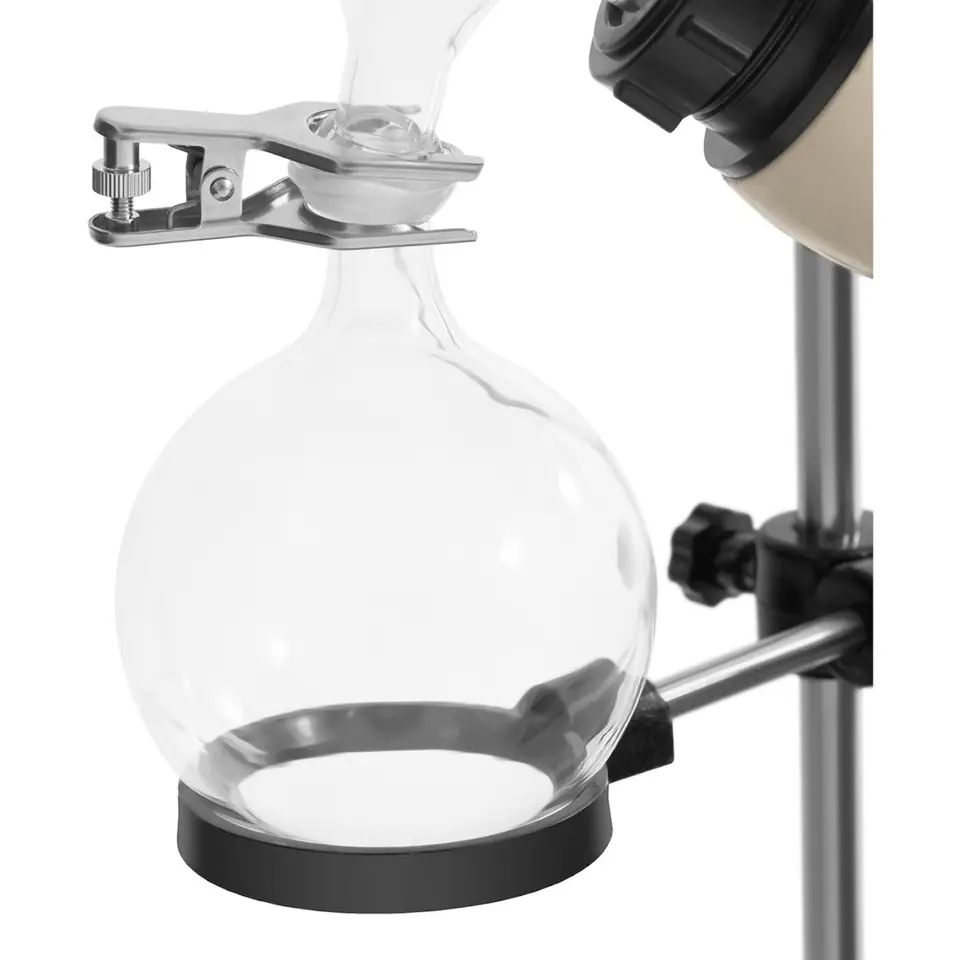

- - Receiving flask [l] - 1
- - Rotary flask [l] - 5
- - Bath power [W] - 1500
- - Bath capacity [l] - 5
- - Evaporation rate [l/h] - N/A
- - Lifting [mm] - 120
- - Vacuum level [MPa] - 0.098
- - Air pipe - Length 678 mm, OD = 14.5 mm, ID = 8.5 mm
- - Dimensions (LxWxH) [cm] - 73 x 33 x 100
- - Weight [kg] - 25
- - Shipping dimensions (LxWxH) [cm] - 63 x 49 x 55
- - Shipping weight [kg] - 32
- - Vacuum evaporator
- - Main bracket – set
- - Engine - set

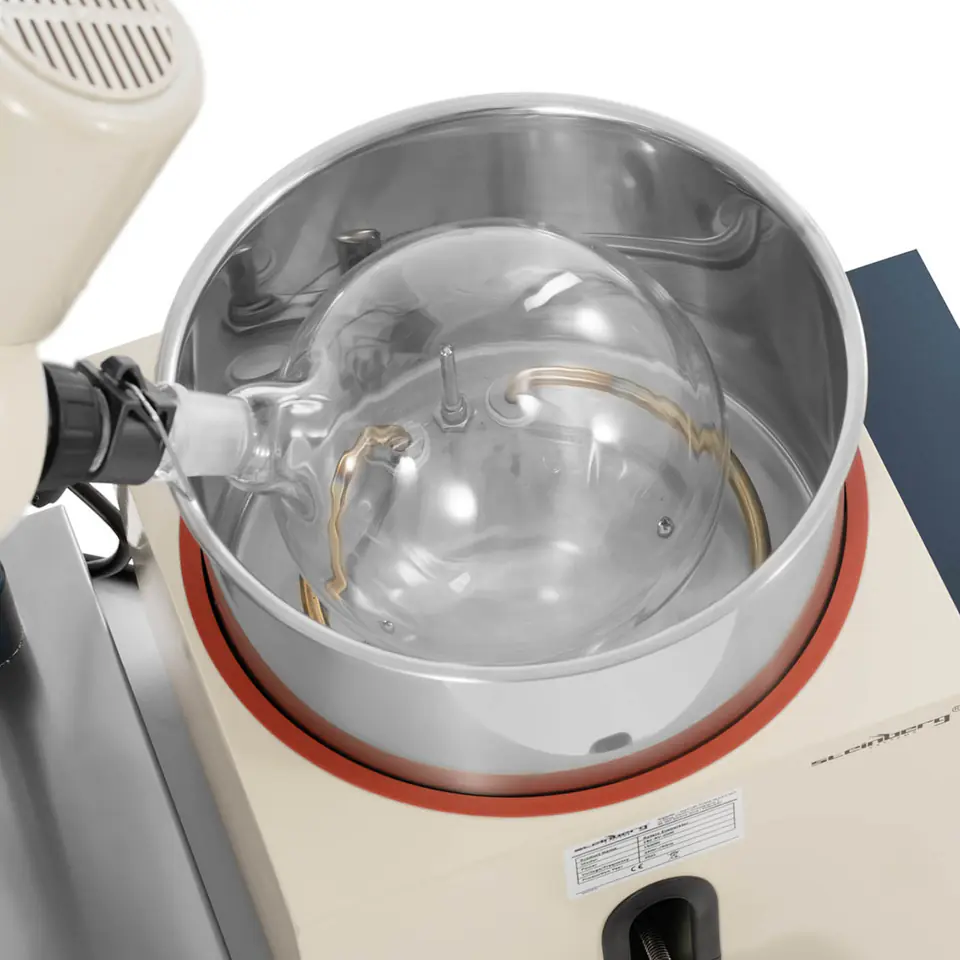

- - Water bath - set
- - Rotary flask 5 l
- - Receiver flask 1 l
- - Glass wire
- - Supply valve 19 #

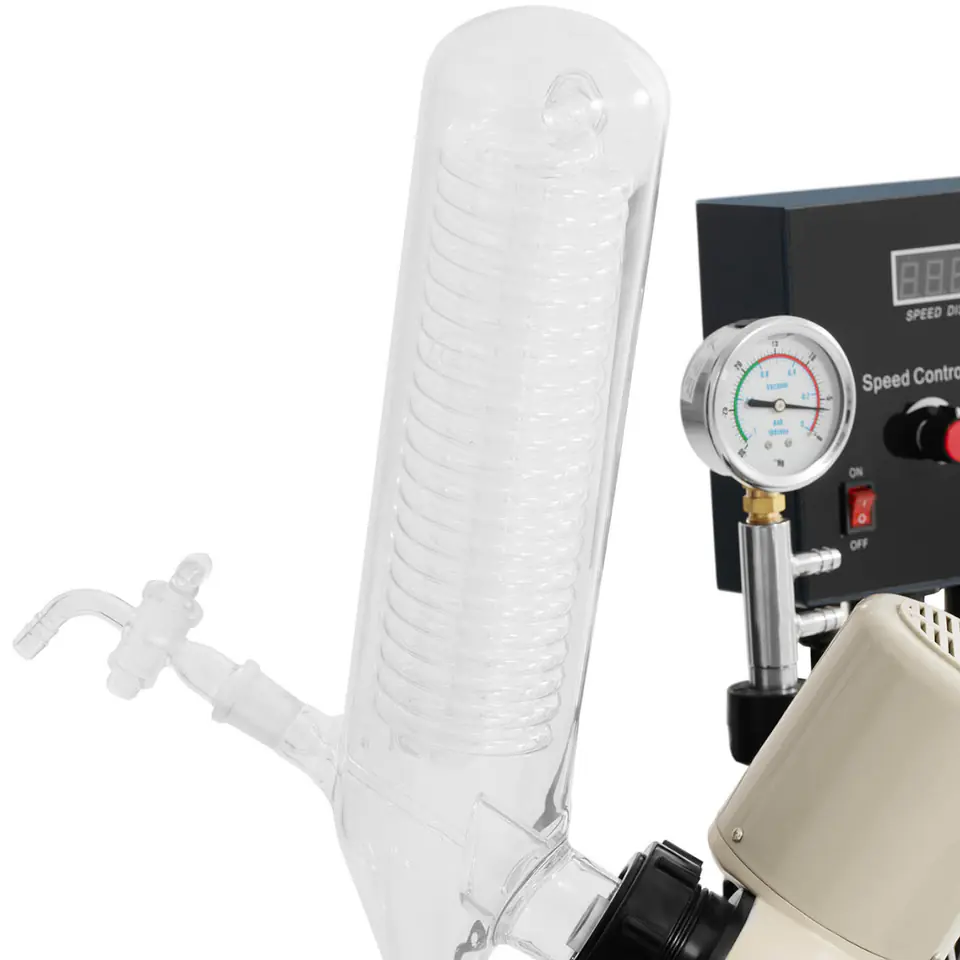

- - Main condenser Ø85 x 460 mm / ball mill clip
- - Oil seal Ø25 mm - set
- - Small PTFE washer Ø50 mm
- - Vacuum meter
- - Vacuum tube
- - Swivel washer - set
- - Receiver stock holder
- - PTFE cable - set
- - Condenser clip - set
- -Regulator
- - O-ring 43 mm
- - Hex wrench
- - Fuses - 2 pcs. (16 A and 3 A)
- - Screws - 5 pcs.
- -Manual
