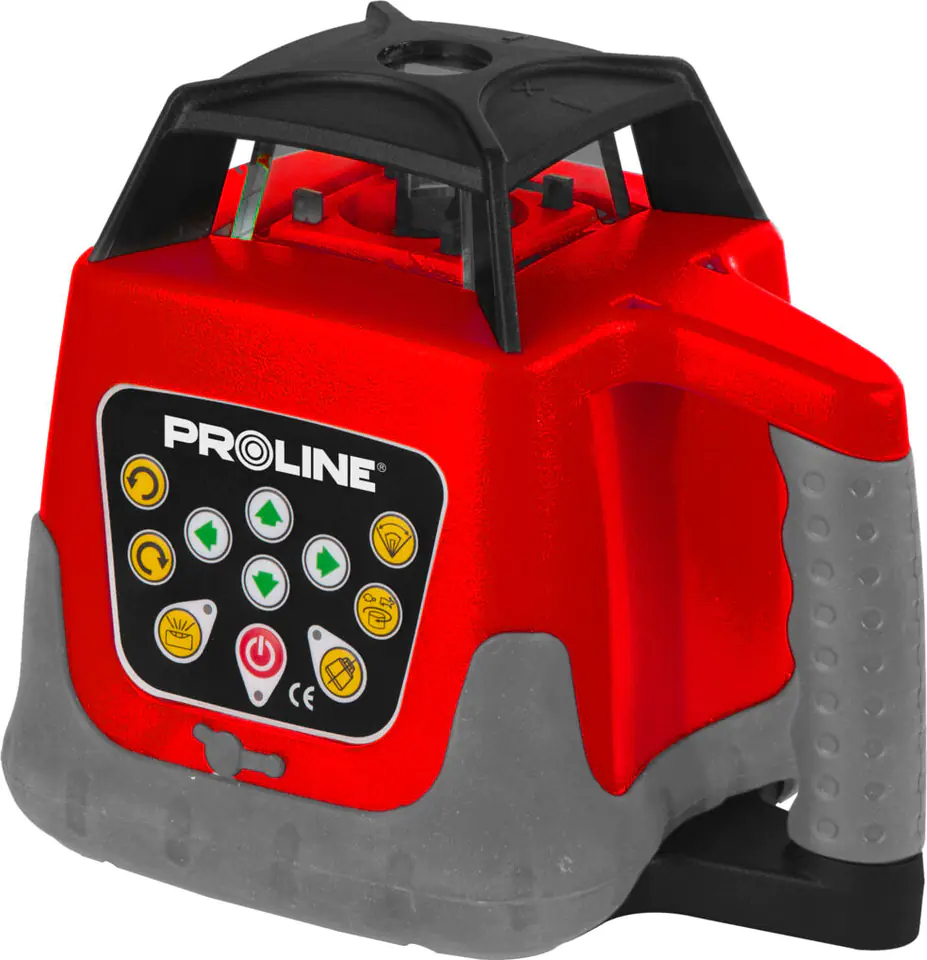

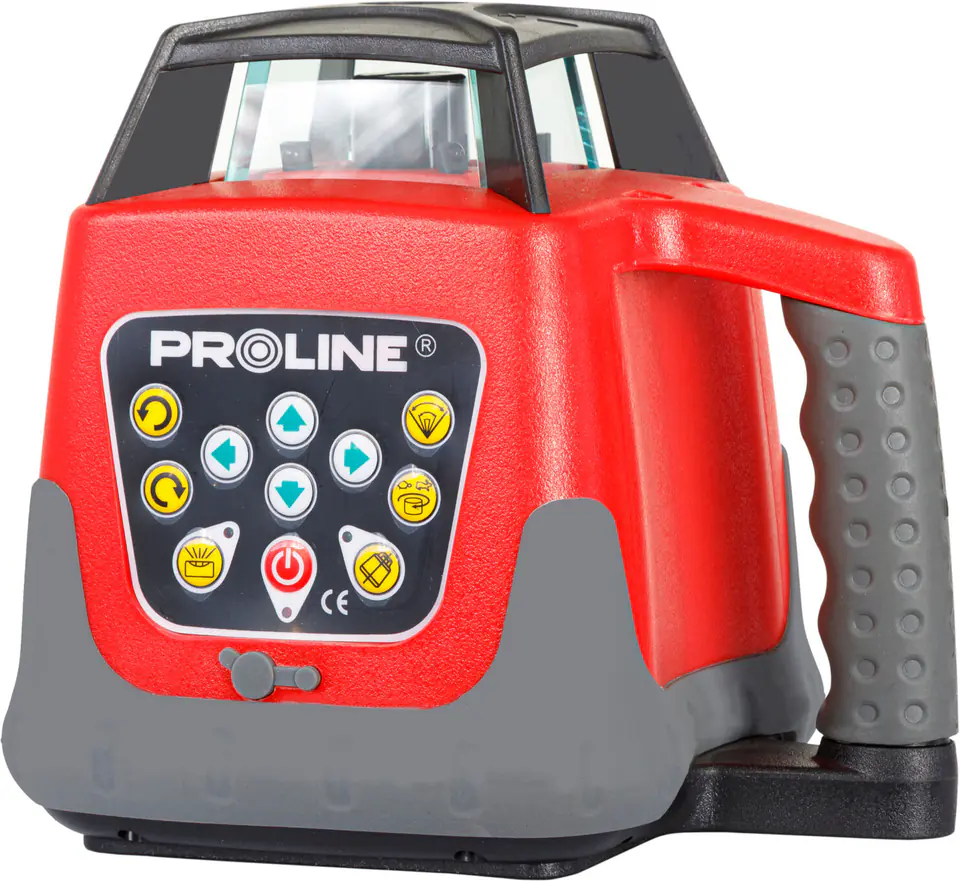

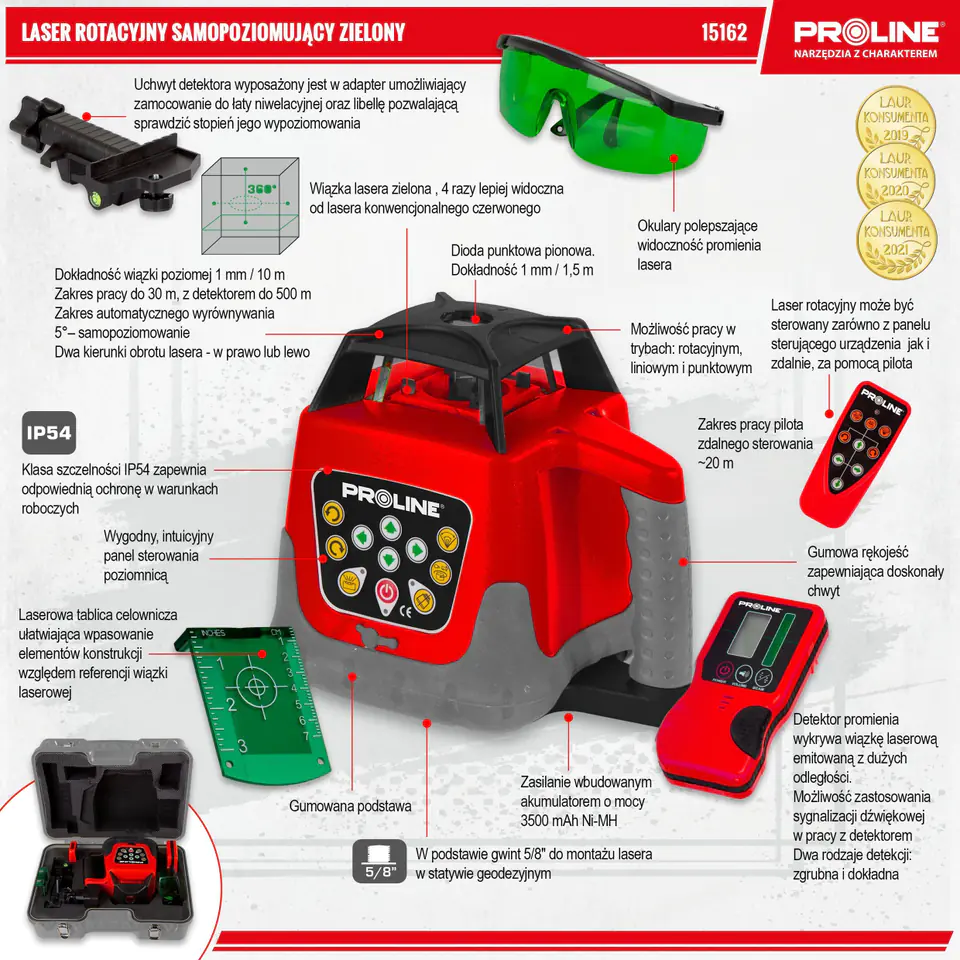

Rotary self-leveling laser green up to 500m Proline 15162
Proline rotary laser is a versatile and multifunctional tool for indoor work and for work in open spaces.
The green beam used in the laser is 4 times better visible than a conventional red laser.
The rotary laser can be controlled both from the control panel of the device and remotely, using a remote control. Remote control operating range ~20 m. The ray detector detects a laser beam emitted from long distances. Two types of detection: rough and accurate. The detector holder is equipped with an adapter that allows attachment to the leveling patch and a libella to check the degree of its leveling. IP54 rating provides adequate protection under operating conditions.

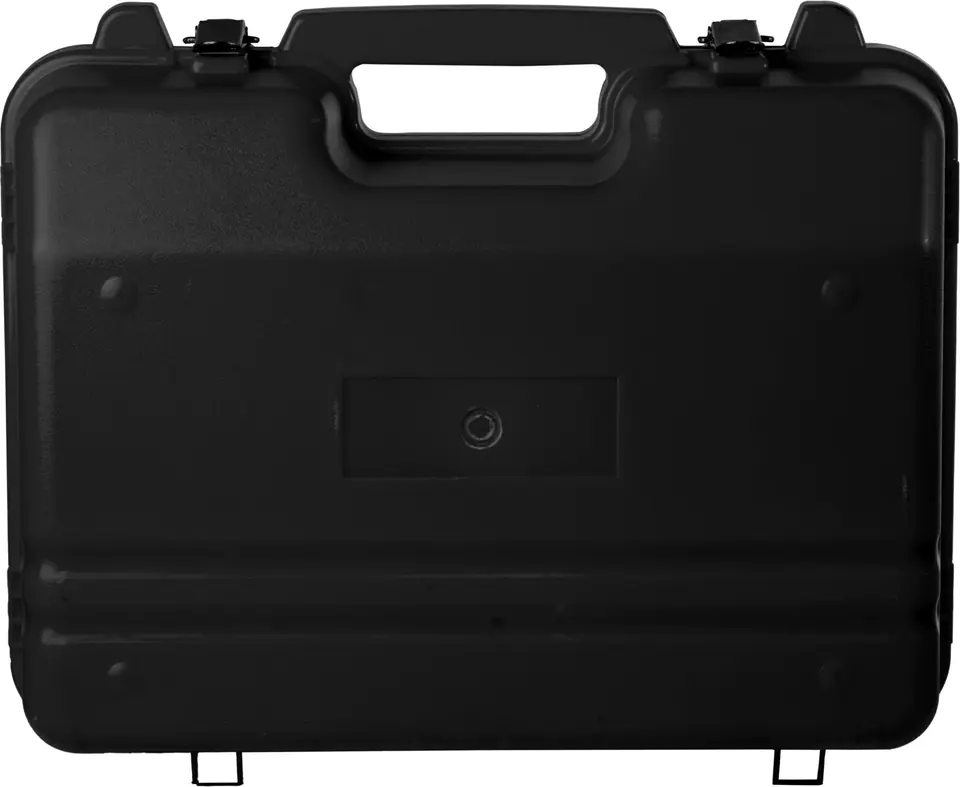

In the base there is a 5/8" thread for mounting the laser in a geodetic tripod. Convenient suitcase for easy transport and protection against damage.
Technical parameters:
- Horizontal beam accuracy 1 mm/10 m.
- Accuracy of vertical spot laser 1 mm/1.5 m.
- Operating range up to 30 m, with detector up to 500 m.
- Laser power = <1Mw.
- Laser wavelength 520 nm.
- Laser class 3R.
- Automatic alignment range 5° – self-leveling.
- Powered by a built-in 3500 mAh Ni-MH rechargeable battery.
- Adjusting the position of the laser pointer in manual operation mode changes the inclination of the working plane.
- Anti-shock protection eliminates measurement errors caused by shocks or movement of the device.
- Two directions of rotation of the laser - right or left.
- Ability to work in rotational, linear and point modes.
Operating modes:
- Rotation mode - recommended when using a laser receiver; the user can choose different rotational speeds.
- Rotational speeds: 60, 120, 300, 600 rpm.
- Linear mode - the variable laser beam moves in a limited angle of the opening of the laser beams, which improves its visibility; it is possible to choose between different working angles. Selectable opening angle: 10°, 45°, 90°, 160°.
- Point mode - the most visible laser beam; point mode will work, e.g. with simple height transfer or setting control in one axis (line). Opening angle 0°. Rotational speed 0 rpm.

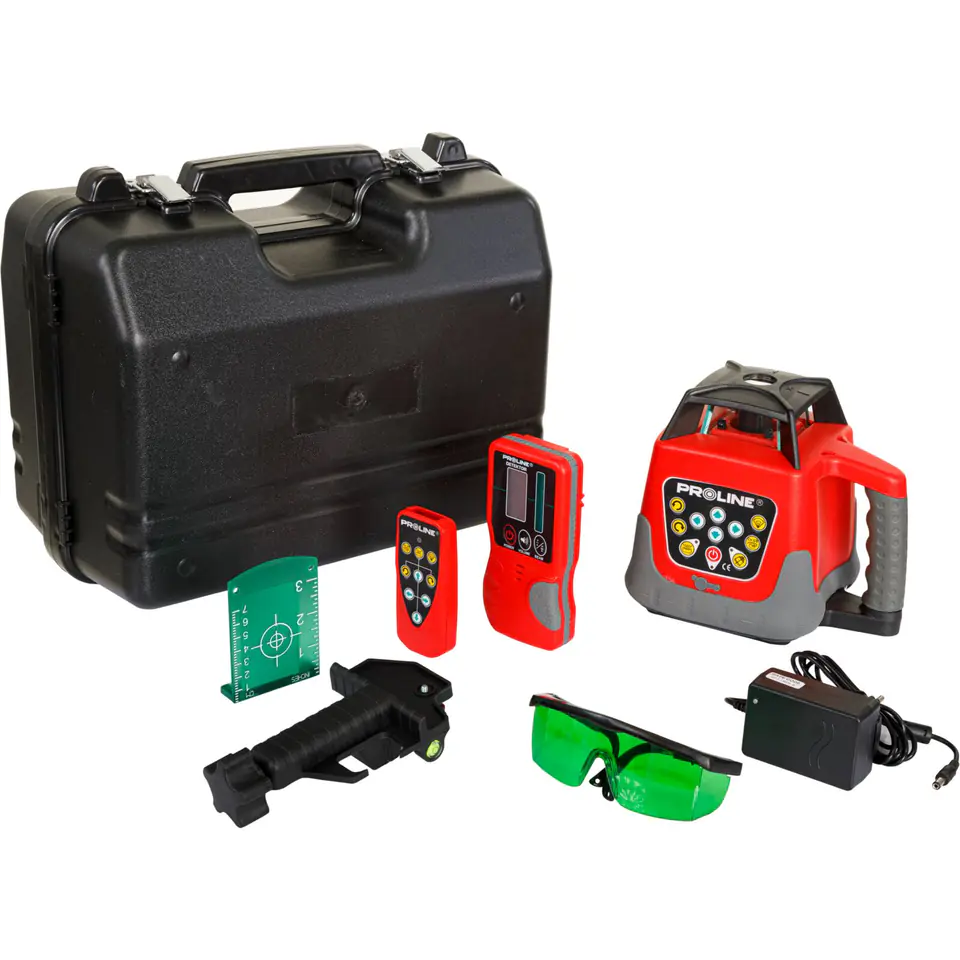

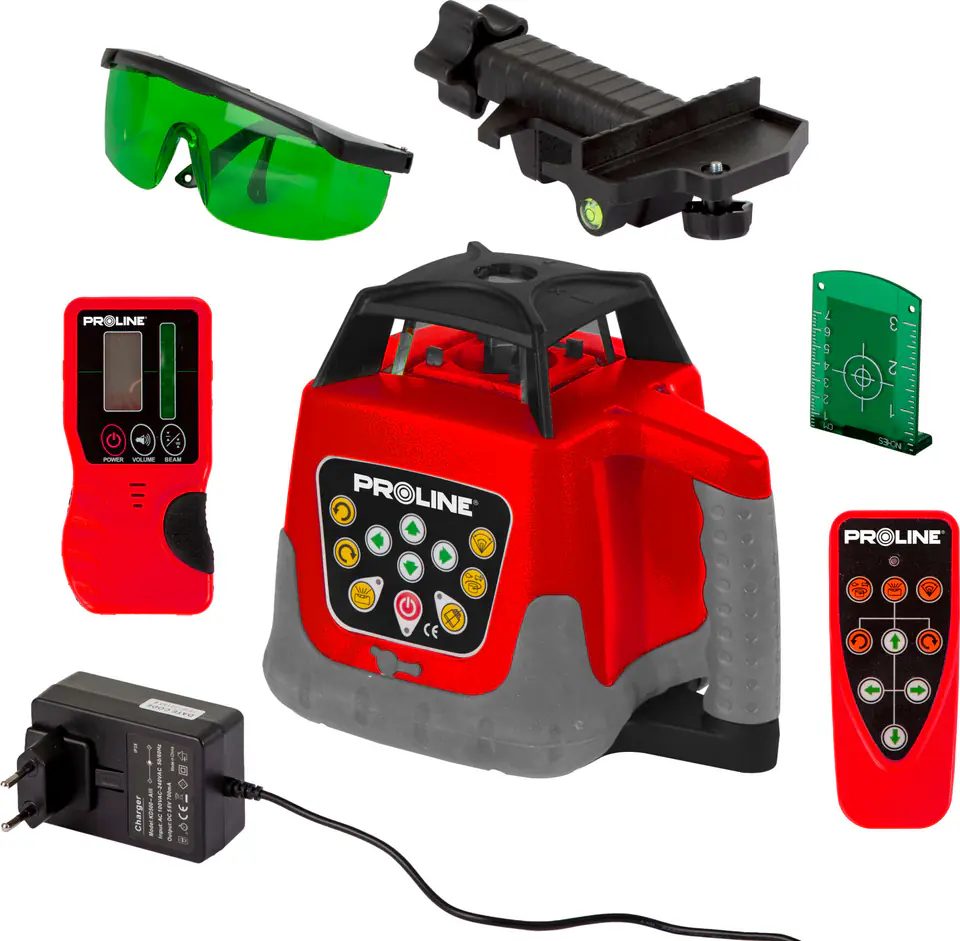

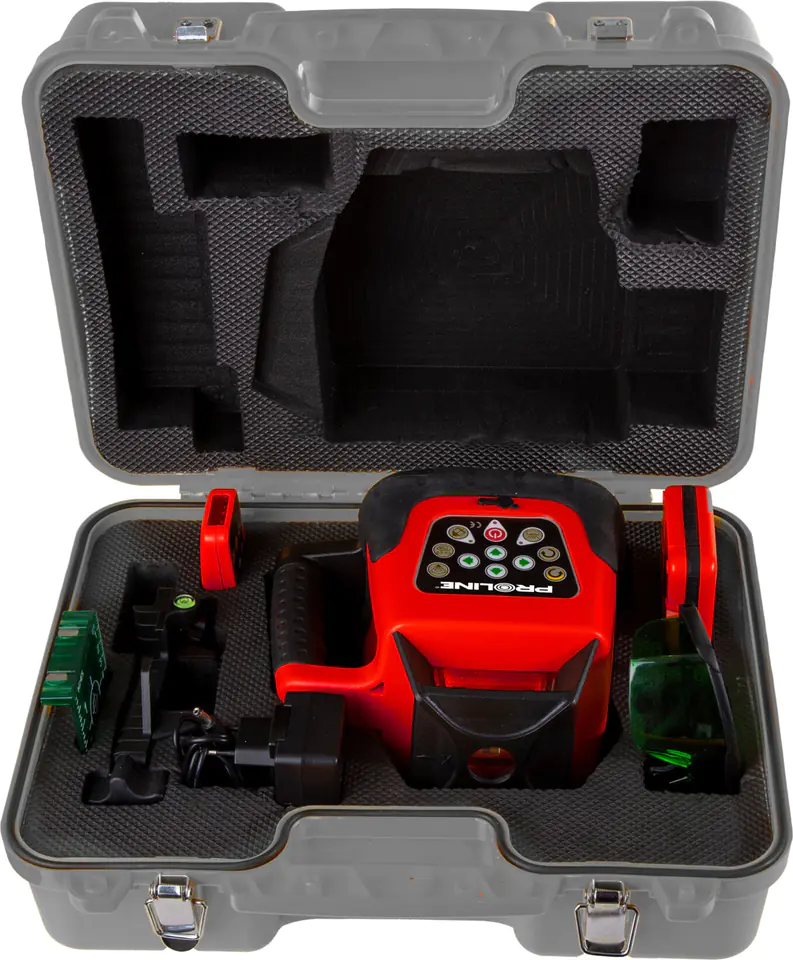

Including:

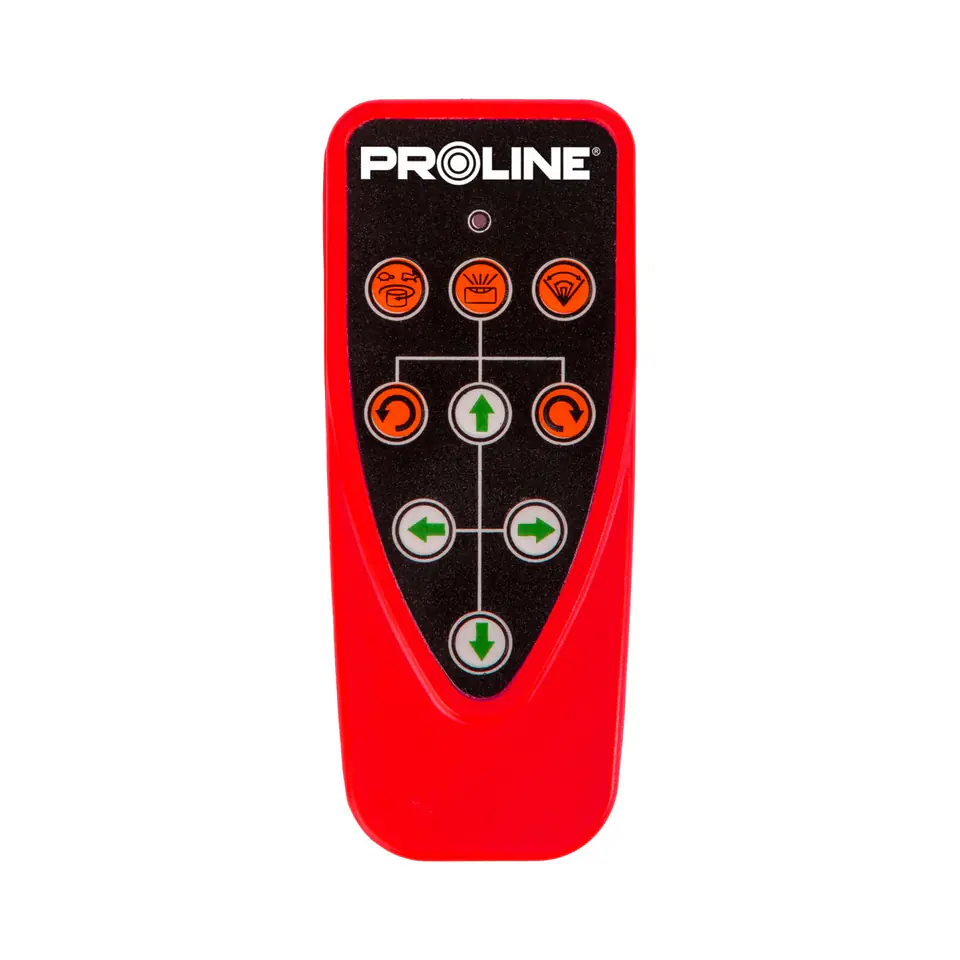

- remote control,

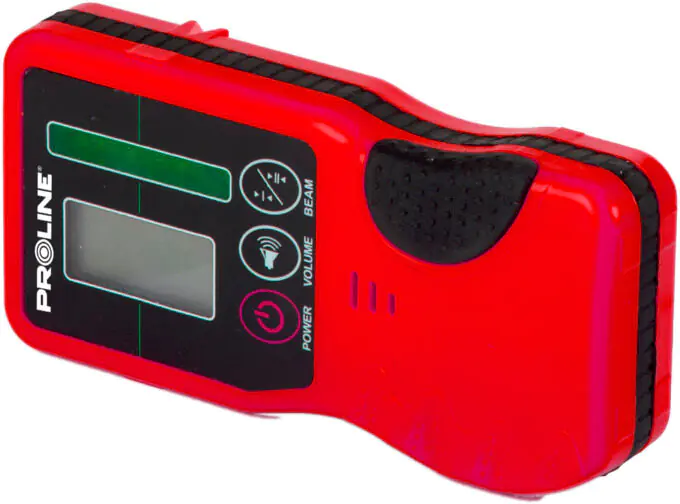

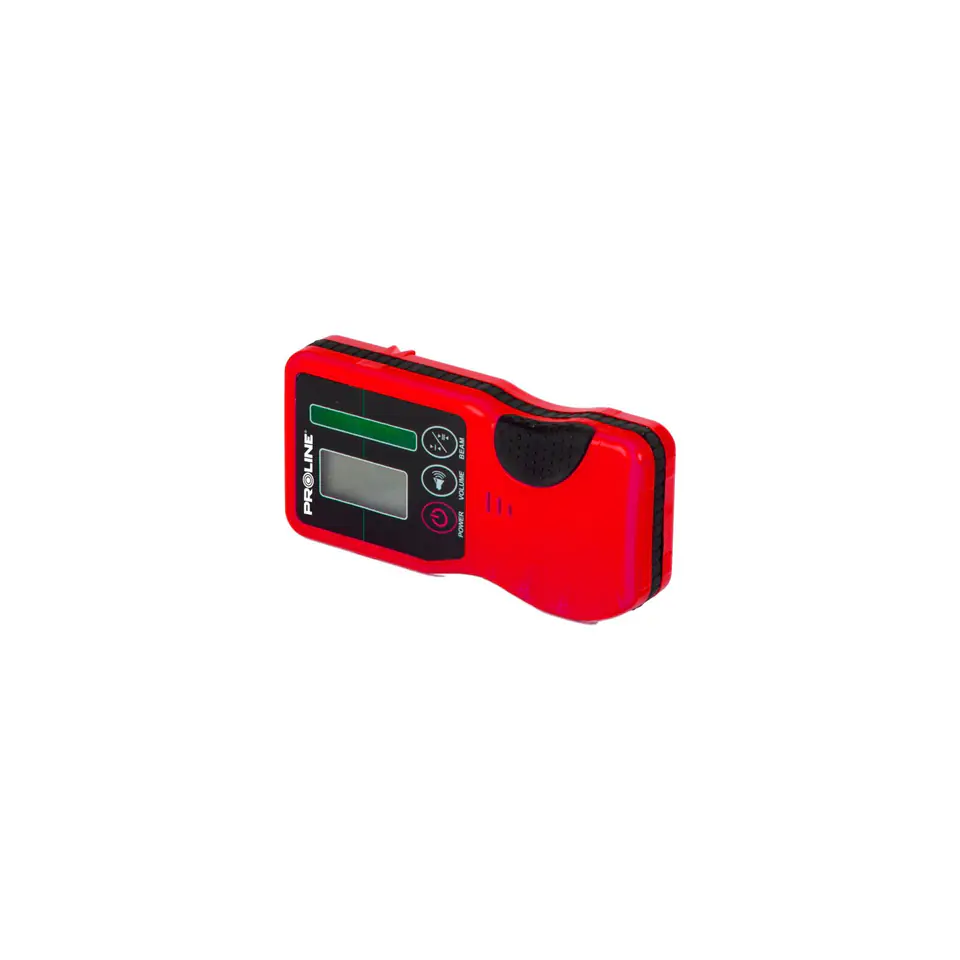

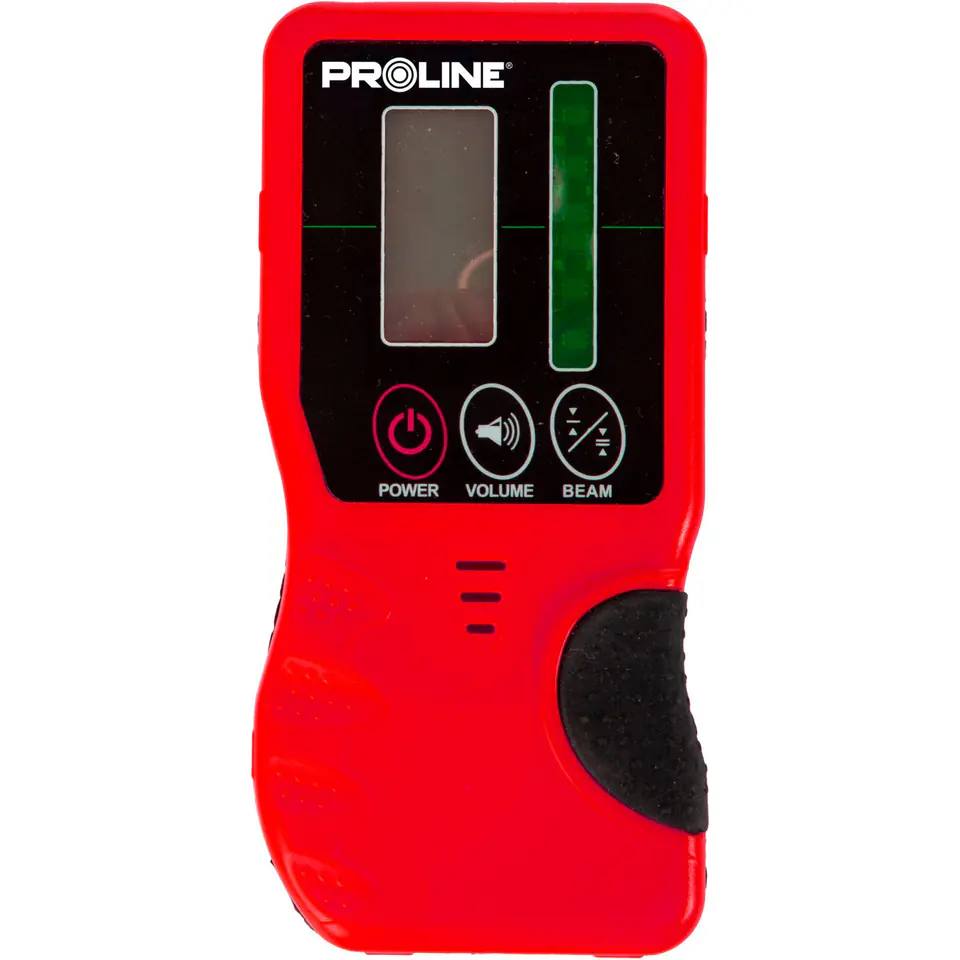

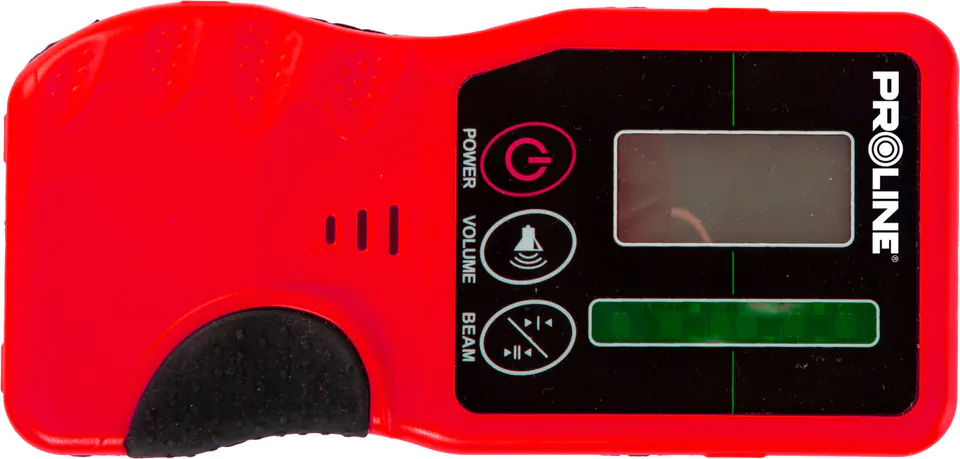

- laser beam detector,

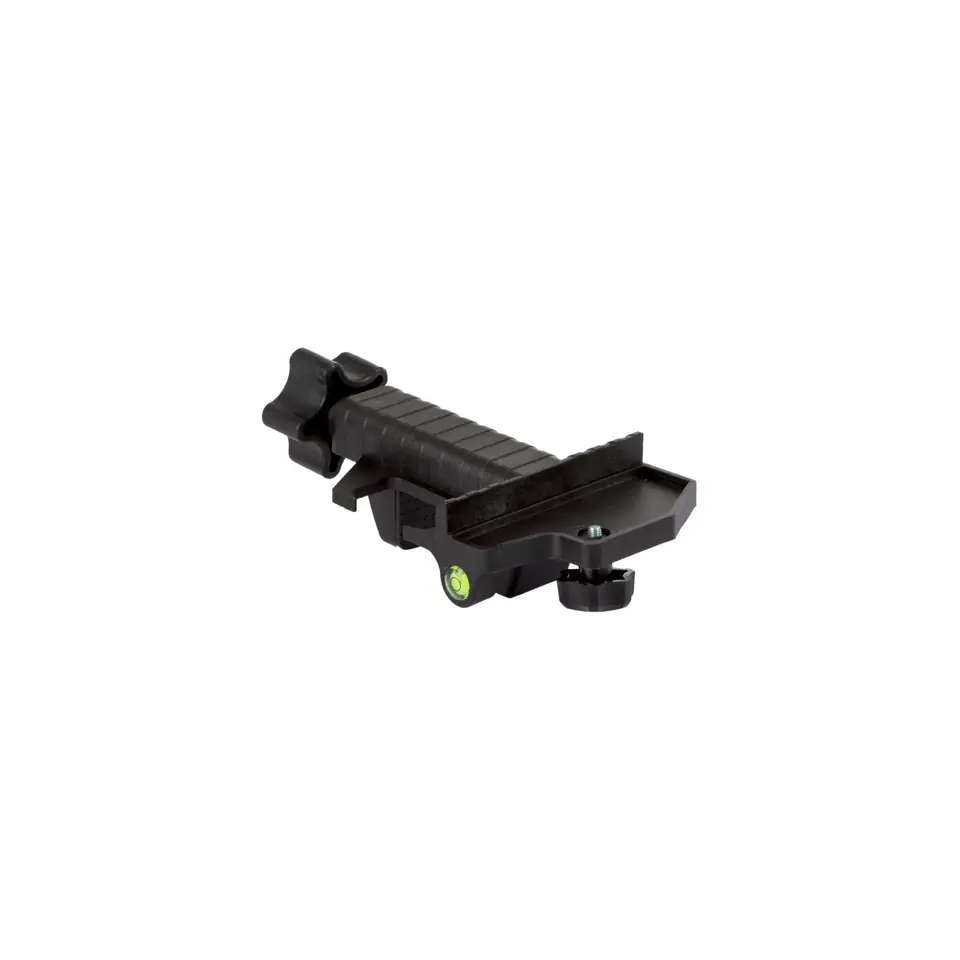

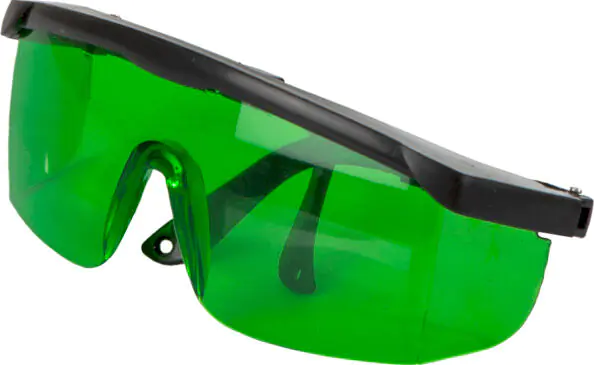

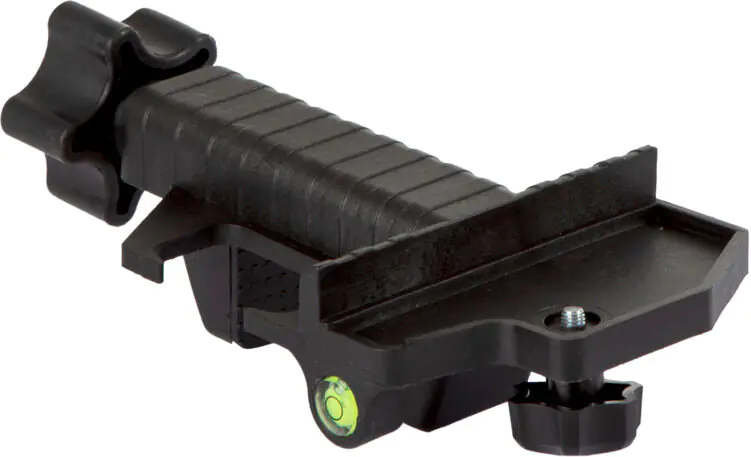

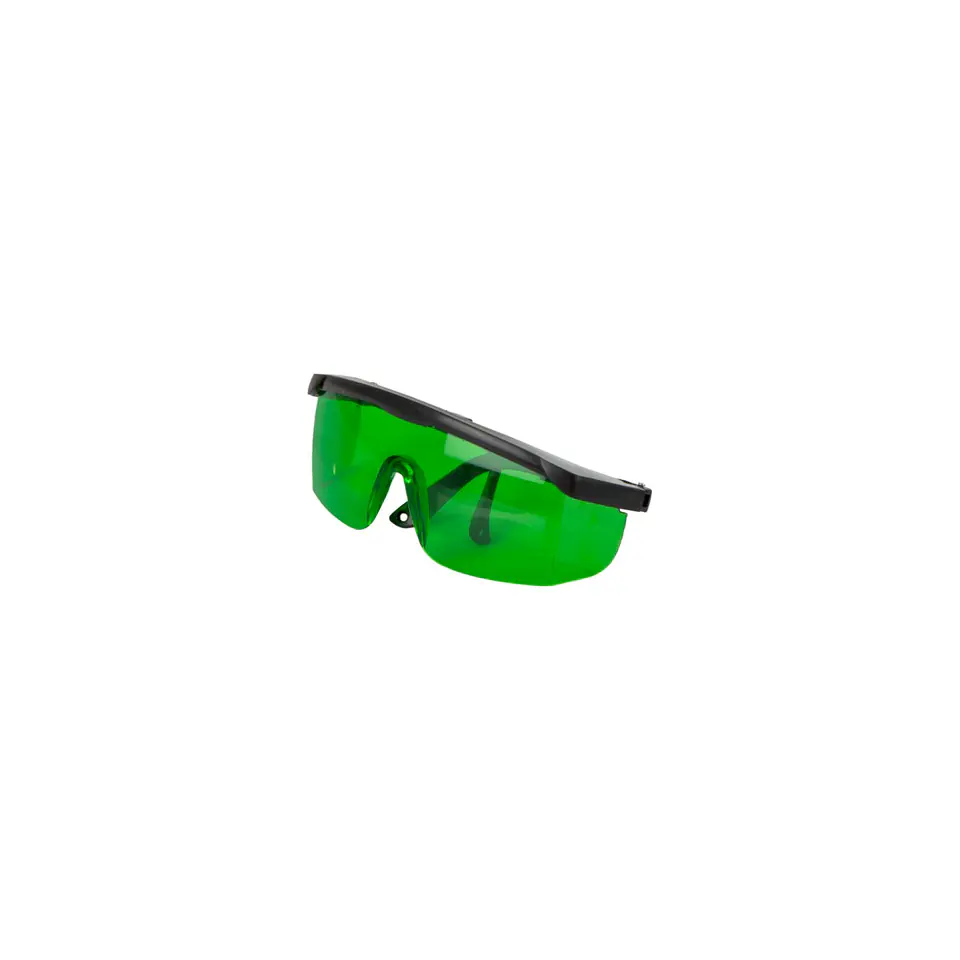

- detector holder, glasses improving the visibility of the laser beam,

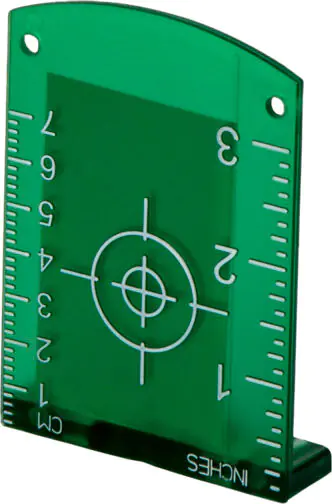

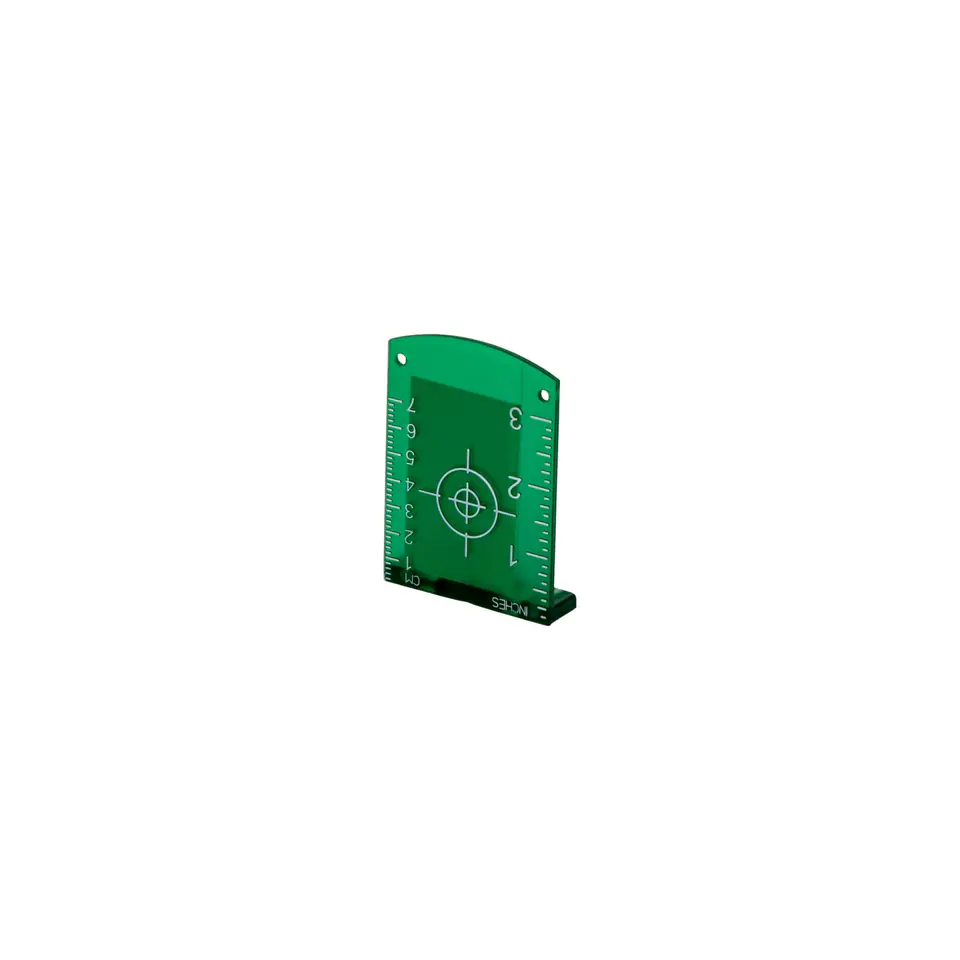

- laser aiming board (facilitating the fitting of structural elements in relation to the laser beam reference),

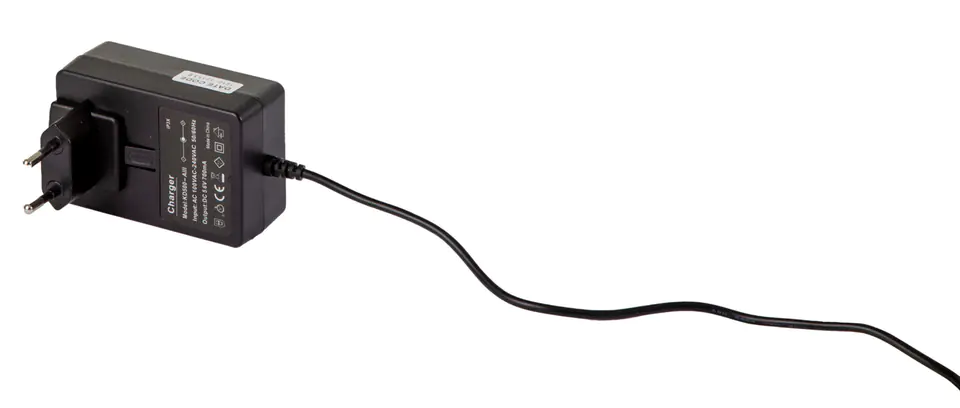

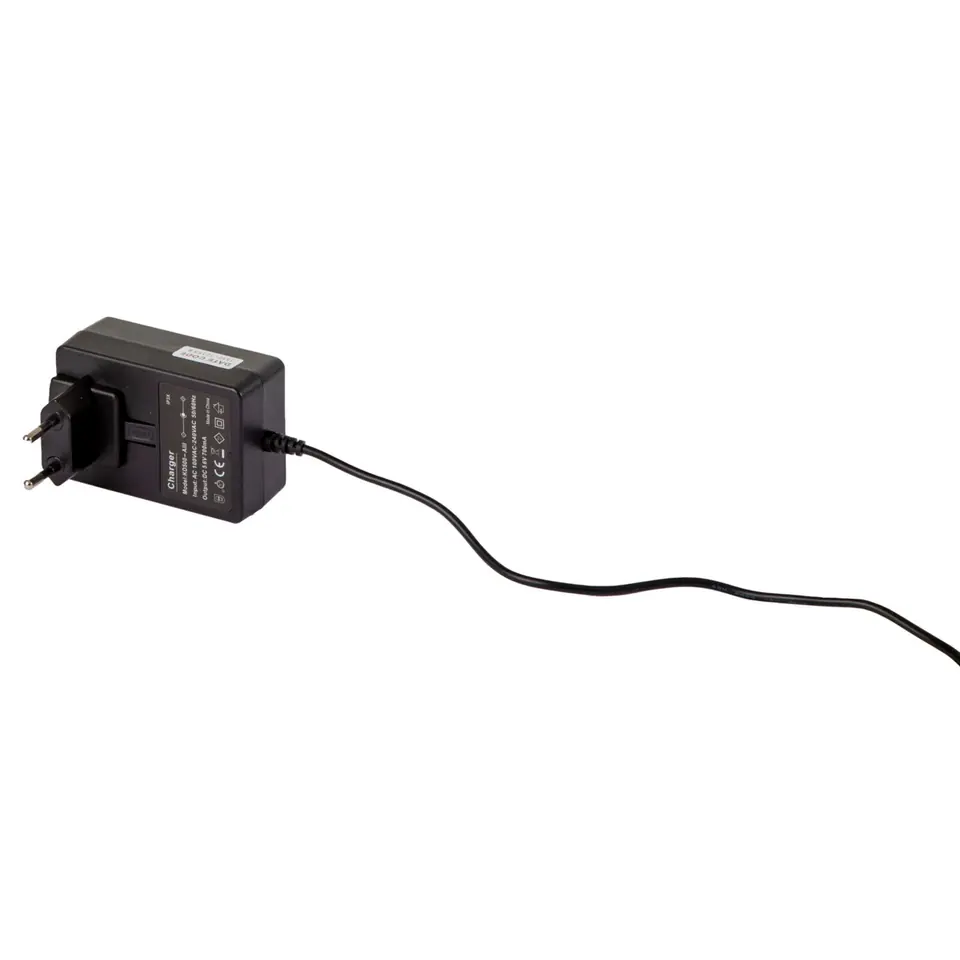

- battery charger
