Technical data:
Laser diode635 nm, < 1 mW nm
Operating temperature-10 – 50 °C
Storage temperature-20 – 70 °C
Laser class2
Working range20 m
Working range with receiver400 m (Diameter)
Operating range without receiver, value20 m (Diameter)
Leveling accuracy? 0.08 mm/m
Scope of automatic leveling? 8% (? 5°)
Leveling time15 S
Protection against dust and waterIP 56
Rotational speed600 rpm
Power
2 batteries 1.2 V HR20 (D) (9 Ah),
2 x 1.5V LR20 (D) batteries,
Max. battery gun operation time (NiMH) 30 h
Tripod thread5/8"-11
Weight, approx. 1.8 kg
Length183 mm
Width170 mm
Height188 mm
Color of the laser beamred

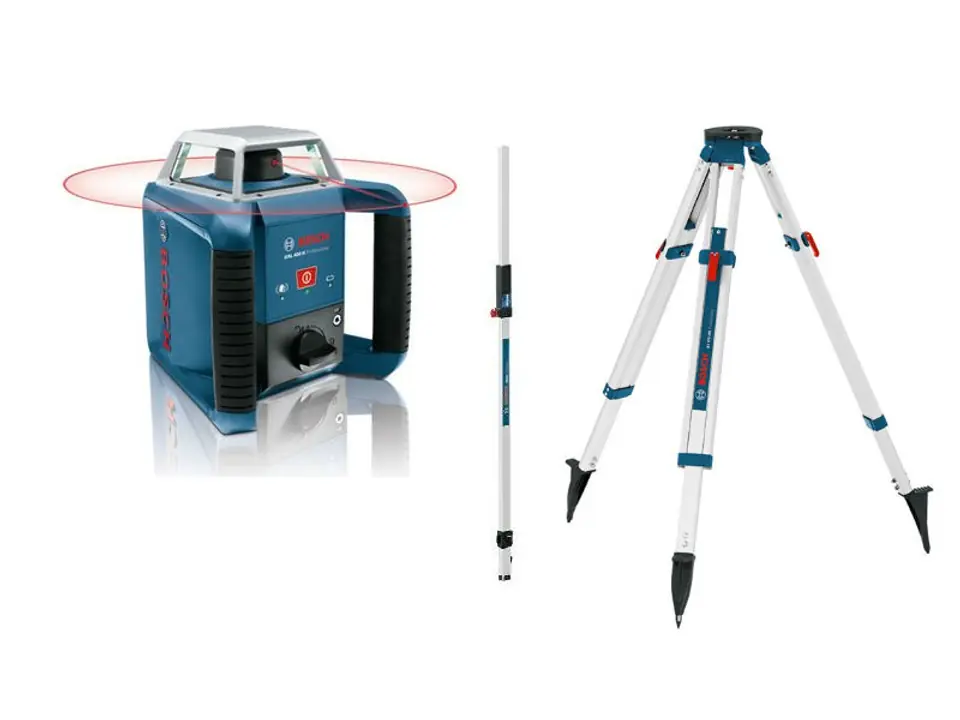

ROTARY LASERS GRL 400 H Easy-to-use rotary laser for field work
Easy operation: one button and intuitive display Automatic leveling up to 8% (? 5°) at horizontal position
Automatic shock warning function prevents leveling errors in case of vibration or laser movement Long range up to 400 m (diameter)
Durable housing and protection against dust and water IP 56 Battery compartment (1 609 203 M02)
Holder (1 608 M00 05A)
Charger with adapter Laser receiver LR 1 Professional (0 601 015 400) 1 NiMH battery (ET No. 1 608 M00 05G)
Product Benefits
Easy operation: one button and intuitive display
Automatic levelling up to 8% (? 5°) at horizontal position
Automatic shock warning function prevents levelling errors in case of vibration or laser movement
Long range up to 400 m (diameter)
Robust housing and protection against dust and water IP 56
Scope of delivery
Battery compartment (1 609 203 M02),
Handle (1 608 M00 05A),
Charger with adapter,
Laser receiver LR 1 Professional (0 601 015 400),
1 NiMH battery (ET no. 1 608 M00 05G),
2 batteries 1.2 V HR20 (D) (9 Ah),
2 x 1.5V LR20 (D) batteries,
