Technical data:
Rated power 1100 W
Tool holder type SDS-MAX
Speed idling 250-500 rpm
Frequency of idling strokes 1450 - 2900 /min
Energy will be single. Stroke: 8.0 J
Max. drilling diameter in concrete: lace 105mm
Max. drilling diameter in concrete: drill bit 40 mm
Dimensions (L x W x H) 479 x 106 x 263 mm
Weight 6.8 kg
Package weight 13.0 kg
AVT system - the vibration level has been further reduced by completely separating the machine part with the handle from the parts with the motor and transmission
System Soft no Load
2 operating modes: impact drilling and forging
24-position chisel adjustment
Full periodic electronics and soft start system
Precise selection of impact frequencies using the setting knob
LED indicating the need to replace carbon brushes
Signal lamp indicating damage to the switch or cable
Sliding quick-release handle
Easy-to-use mode change lever located at the top of the housing
Separate button for continuous chiselling

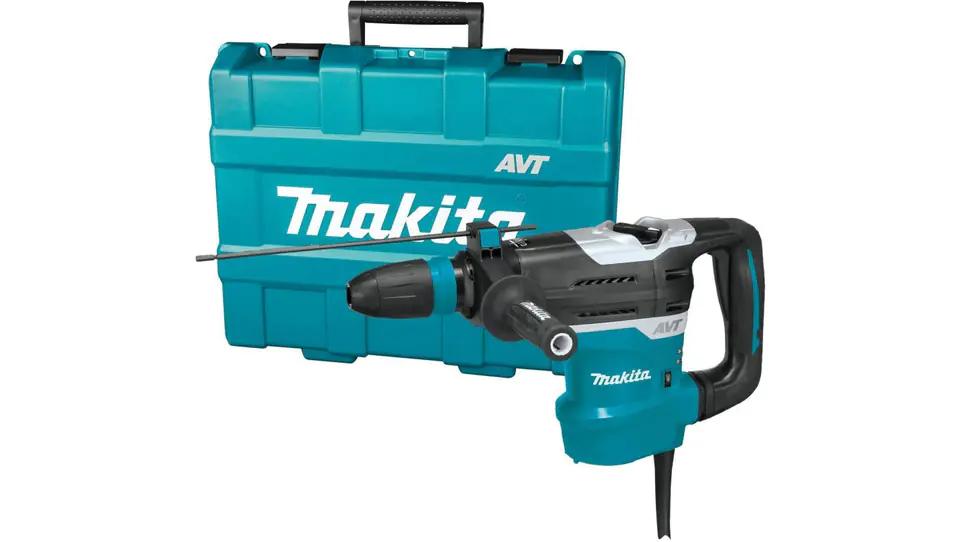

Suitcase:196531-6
Side rod holder: 123138-5
Drill grease and chisel:194683-7
Side bracket: 196792-8
Depth limiter: 331955-1
Cloth
**
