Technical data:
Voltage, electric: 230 V
Packing (L/W/H): 480 x 360 x 130 mm
Nominal capacity: 900 W
Impact energy, max.: 4.2 J
Number of strokes at nominal speed: 0 &ndash 3.600 min-1
Nominal speed: 0 &ndash 800 min-1
Weight: 4.7 kg
Tool mounting system: SDS-plus
Drilling range:
Drilling diameter for concrete hammer drills: 6 &ndash 32 mm
Optimal drilling range for concrete hammer drills: 14 &ndash 25 mm
Max. drilling diameter in masonry with drilling crowns: 90 mm
Max. drilling diameter in steel: 13 mm
Max. drilling diameter in wood: 32 mm
Features:
- Run right/left
- Electronic System
- Overload clutch
- Bosch SDS system.
Description:

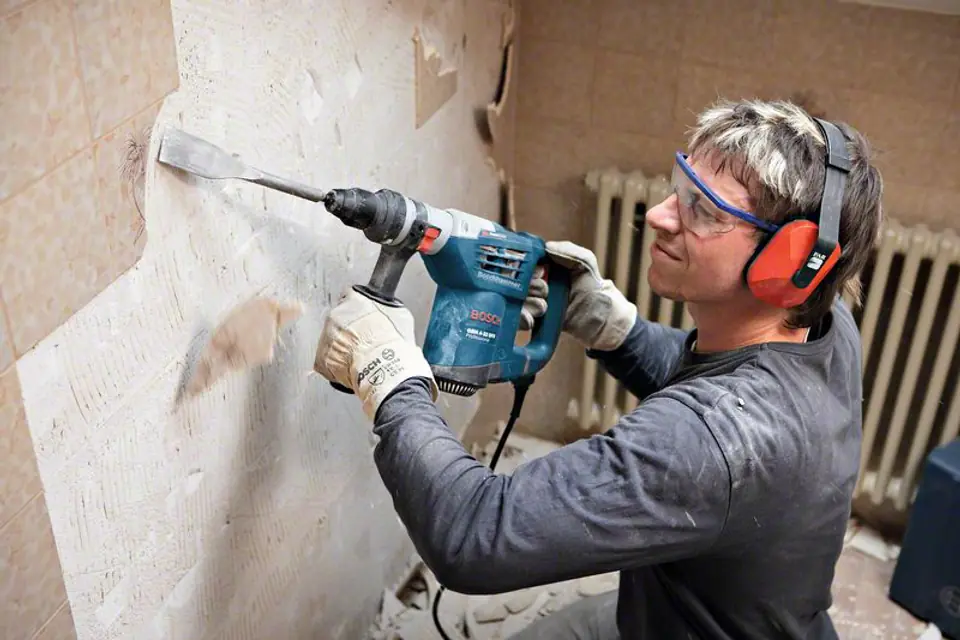

- Versatile use in chiselling and drilling work and in drilling crowns
- Drills up to 30% faster (fi 25mm) than other devices in this class
- Low vibration level - only 10 m/s2 thanks to Bosch Vibration Control, which ensures less tiring work
- Exceptional durability due to durable aluminum gear housing
- Instant replacement of the SDS-plus chuck with a quick-release chuck for drilling in wood and metal with cylindrical drill bits
- Compact design for convenient operation.
Standard equipment:

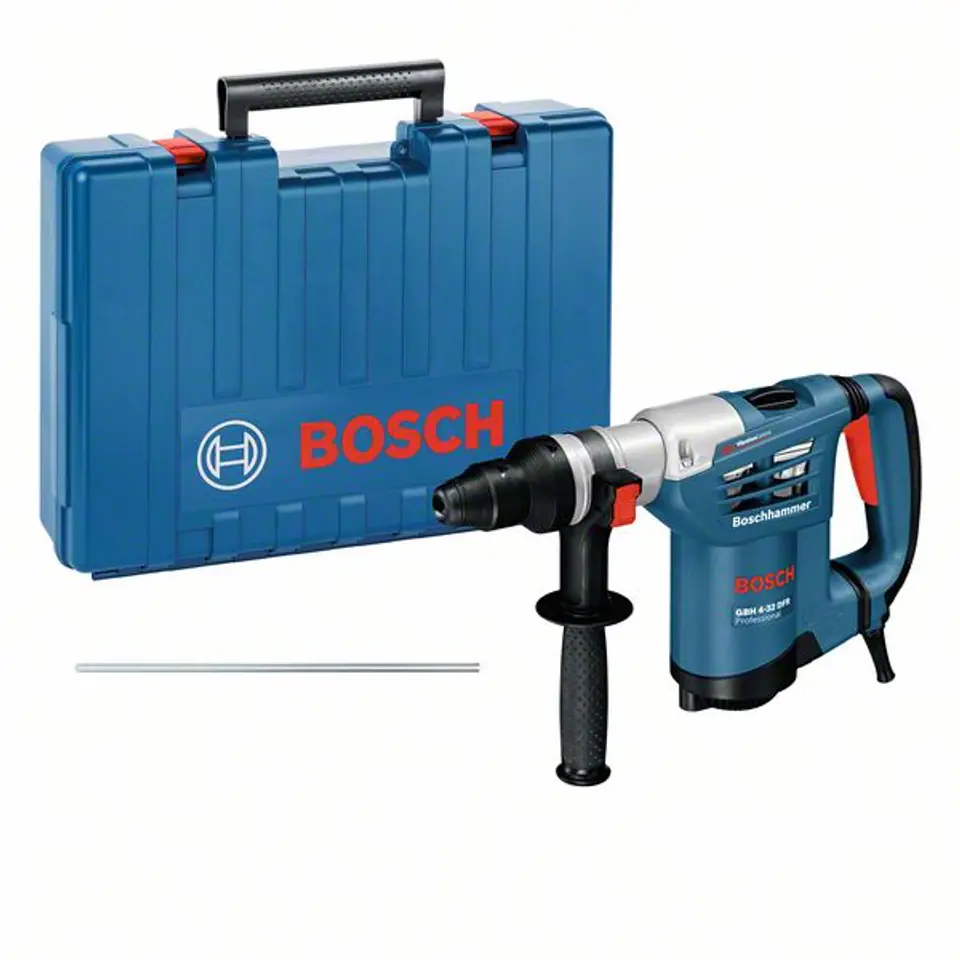

- Tool case (2 605 438 651)
- Additional handle (2 602 025 176)
- Depth limiter 310 mm (1 613 001 003)
