Technical data:
Rated power: 1050W
Speed idling: 0 - 840rpm
Frequency of idling strokes: 0 - 4500/min
Impact Energy (EPTA): 3.9J
Max. drilling diameter in steel: 13mm
Max. drilling diameter in wood: 32mm
Max. drilling diameter in concrete: drill bit: 30mm
Max. drilling diameter in concrete: lace: 80mm
Max. drilling diameter in concrete: diamond crown: 80mm
Tool holder type: SDS-PLUS
Dimensions (total length): 386mm
Weight (EPTA): 4,5 – 4,7kg
Type of stroke: electropneumatic

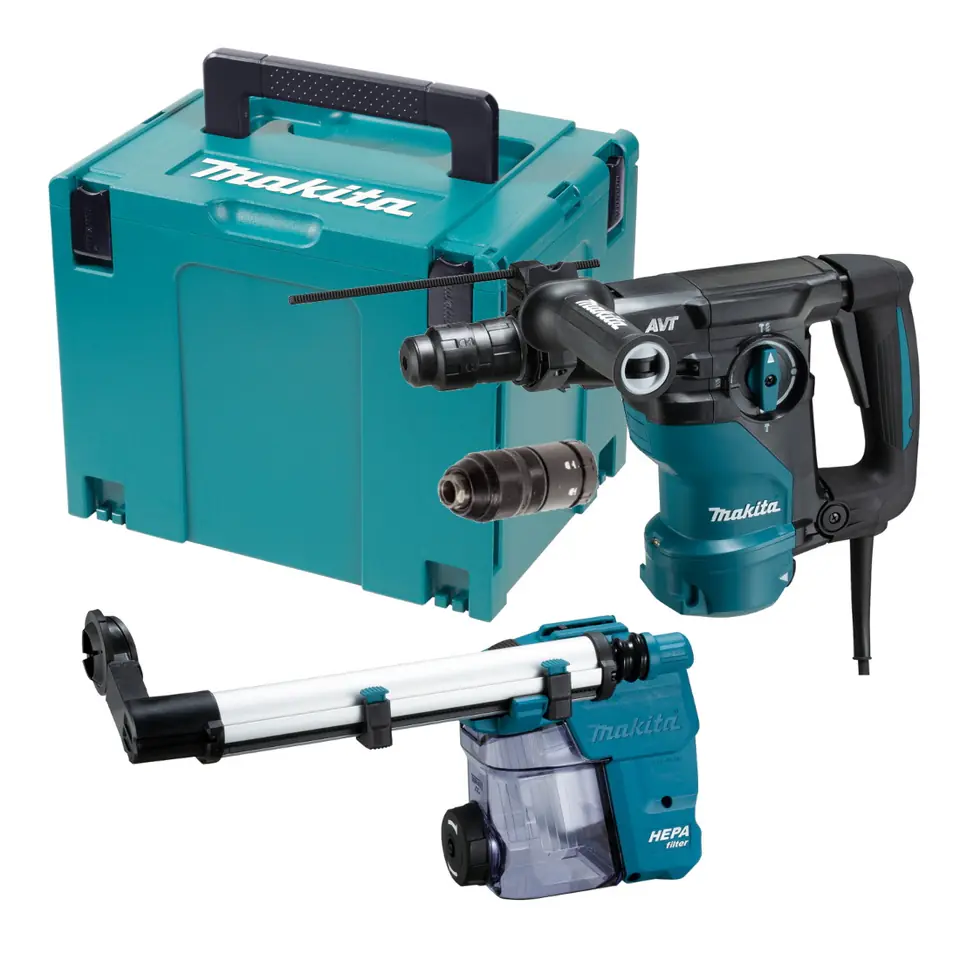

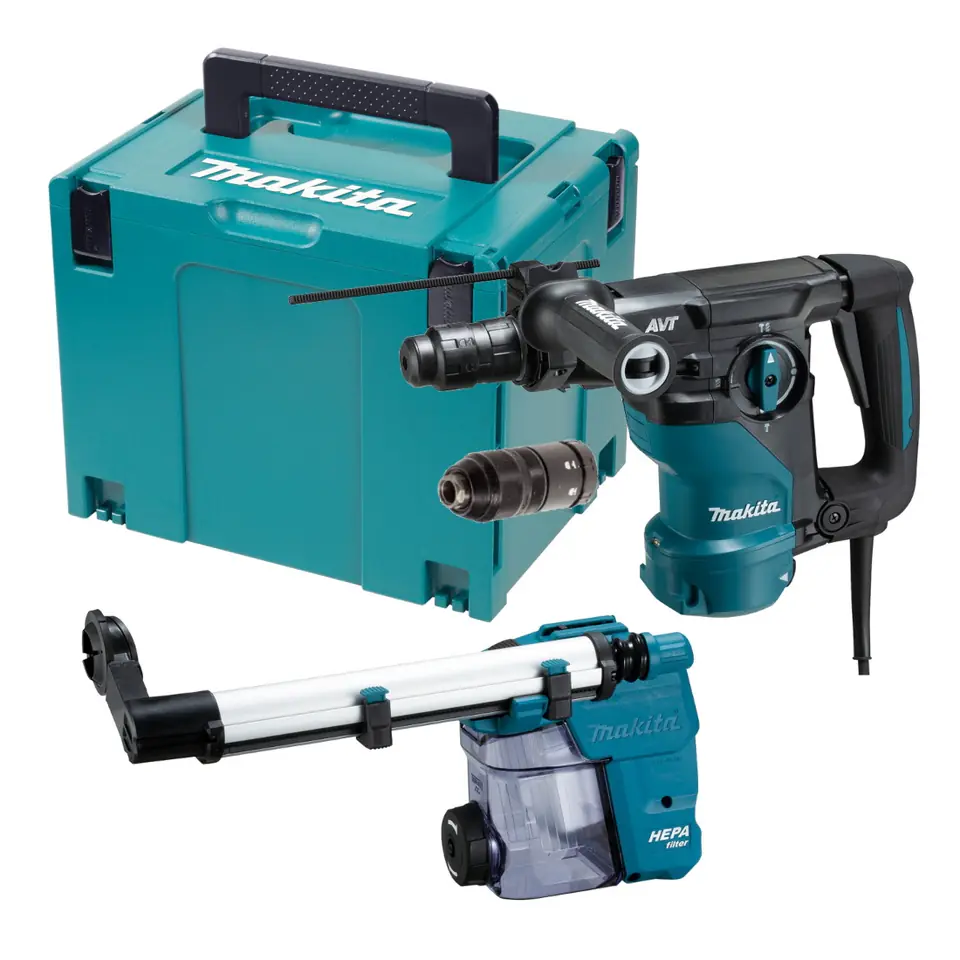

Network rotary hammer with SDS-Plus chuck, 1050 W
3 operating modes: drilling, impact drilling and forging
AVT Anti-Vibration Technology
Improved drilling performance due to upgraded impact mechanism
Infinitely control the speed and frequency of shocks with the switch trigger
Equipped with right and left rotations
Maintaining a constant rotational speed under load
Friction clutch protects the user when the drill is locked
Ergonomic elastomer-coated vibration-absorbing rear handle and anti-vibration side handle
Equipped with 2 different counterweight mechanisms:
- counterweight eliminating the vibrations of the device created as a result of forging
- counterweight to eliminate vibrations caused by rotation of the crankshaft
Quickly replaceable tool holders for SDS-Plus and cylindrical drill bits
LED illuminating the working area
Supplied in Makpac system case with DX11 dust extraction and collection system
STANDARD EQUIPMENT
ANTI-VIBRATION SIDE HANDLE 126882-3
QUICK-CHANGE CYLINDER CHUCK 191F46-4
QUICK-CHANGE HANDLE TYPE SDS-PLUS 191F47-2
DUST EXTRACTION AND COLLECTION SYSTEM DX11191G00-4
DEPTH LIMITER 331886-4
MACPAC SYSTEM CASE TYPE 4821552-6
MAKPAC SUITCASE INSERT
DUST COVER (5 pcs.)
**
