Technical data:
Rated power: 1050W
Speed idling: 0 - 840rpm
Frequency of idling strokes: 0 - 4500/min
Impact Energy (EPTA): 3.9J
Max. drilling diameter in steel: 13mm
Max. drilling diameter in wood: 32mm
Max. drilling diameter in concrete: drill bit: 30mm
Max. drilling diameter in concrete: lace: 80mm
Max. drilling diameter in concrete: diamond crown: 80mm
Tool holder type: SDS-PLUS
Dimensions (total length): 369mm
Weight (EPTA): 4,4 – 4,8kg
Type of stroke: electropneumatic

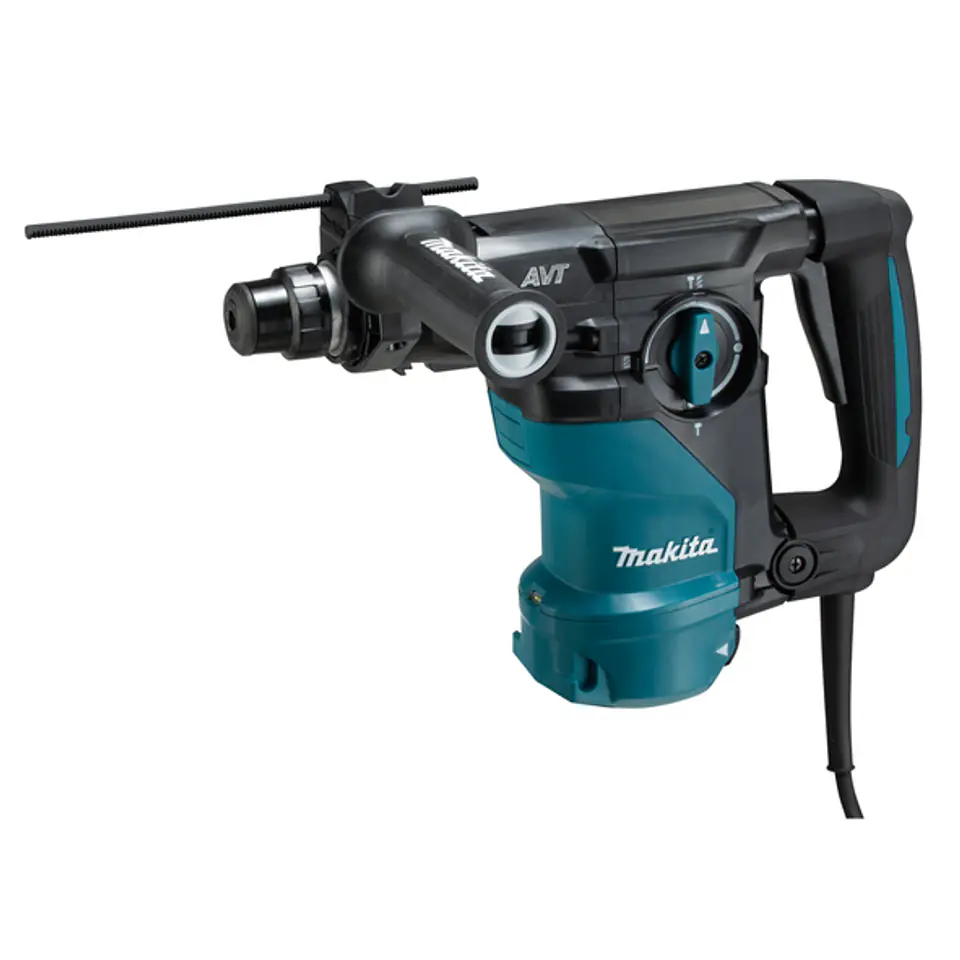

Network rotary hammer with SDS-Plus chuck, 1050 W
3 operating modes: drilling, impact drilling and forging
AVT Anti-Vibration Technology
Improved drilling performance due to upgraded impact mechanism
Infinitely control the speed and frequency of shocks with the switch trigger
Equipped with right and left rotations
Maintaining a constant rotational speed under load
Friction clutch protects the user when the drill is locked
Ergonomic elastomer-coated vibration-absorbing rear handle and anti-vibration side handle
Equipped with 2 different counterweight mechanisms:
- counterweight eliminating the vibrations of the device created as a result of forging
- counterweight to eliminate vibrations caused by rotation of the crankshaft
LED illuminating the working area
Supplied in a Makpac system case
STANDARD EQUIPMENT
ANTI-VIBRATION SIDE HANDLE 126882-3
DEPTH LIMITER 331886-4
MACPAC SYSTEM CASE TYPE 4821552-6
MAKPAC SUITCASE INSERT
**
