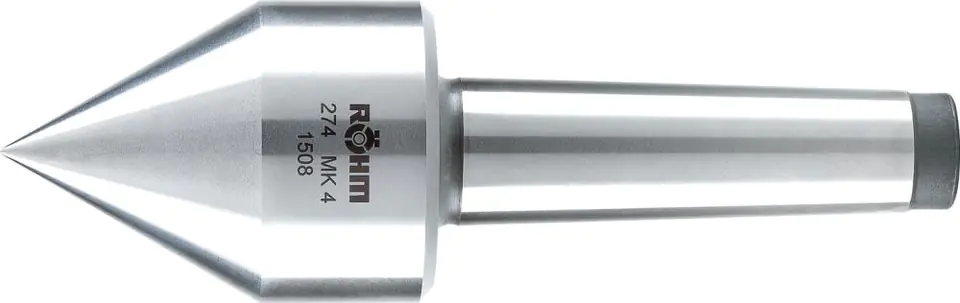

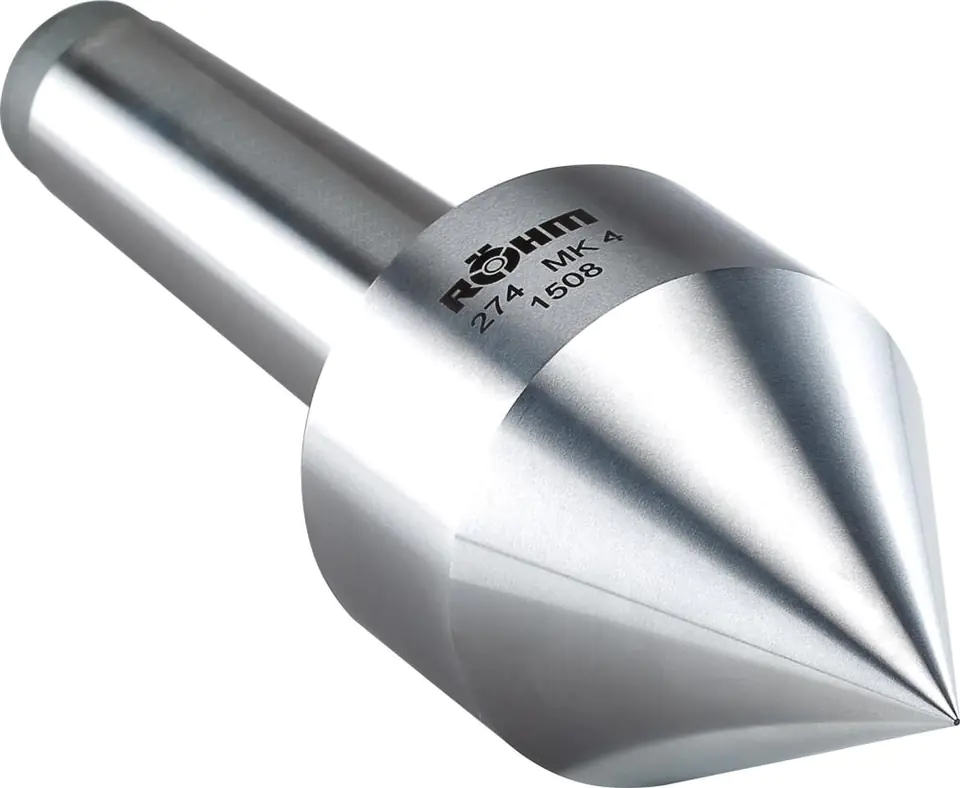

Rotary centering tusk
Design: mounting grip, body and hardened cone. Cone pointed, 60°, stable bearing.
Application: as centering tusk for hollow elements and centering tusk for processing ordinary elements.

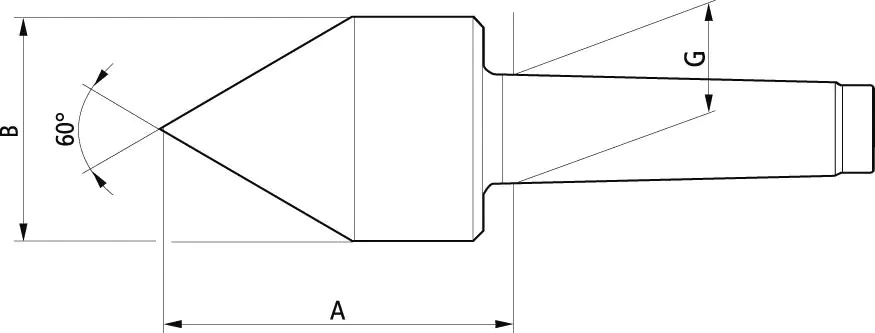

Dimension a: | 100 mm |
---|---|
Dimension b: | 64 mm |
Dimension g: | 31.267 mm |
Max. radial runout tolerance: | 0.008 mm |
Max. workpiece weight: | 800 kg |
Mount: | 4 Morse cone |
Size: | 274 |
Rotary centering tusk
Design: mounting grip, body and hardened cone. Cone pointed, 60°, stable bearing.
Application: as centering tusk for hollow elements and centering tusk for processing ordinary elements.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
