Manufacturer Name: MSW PROLIFTOR 1000

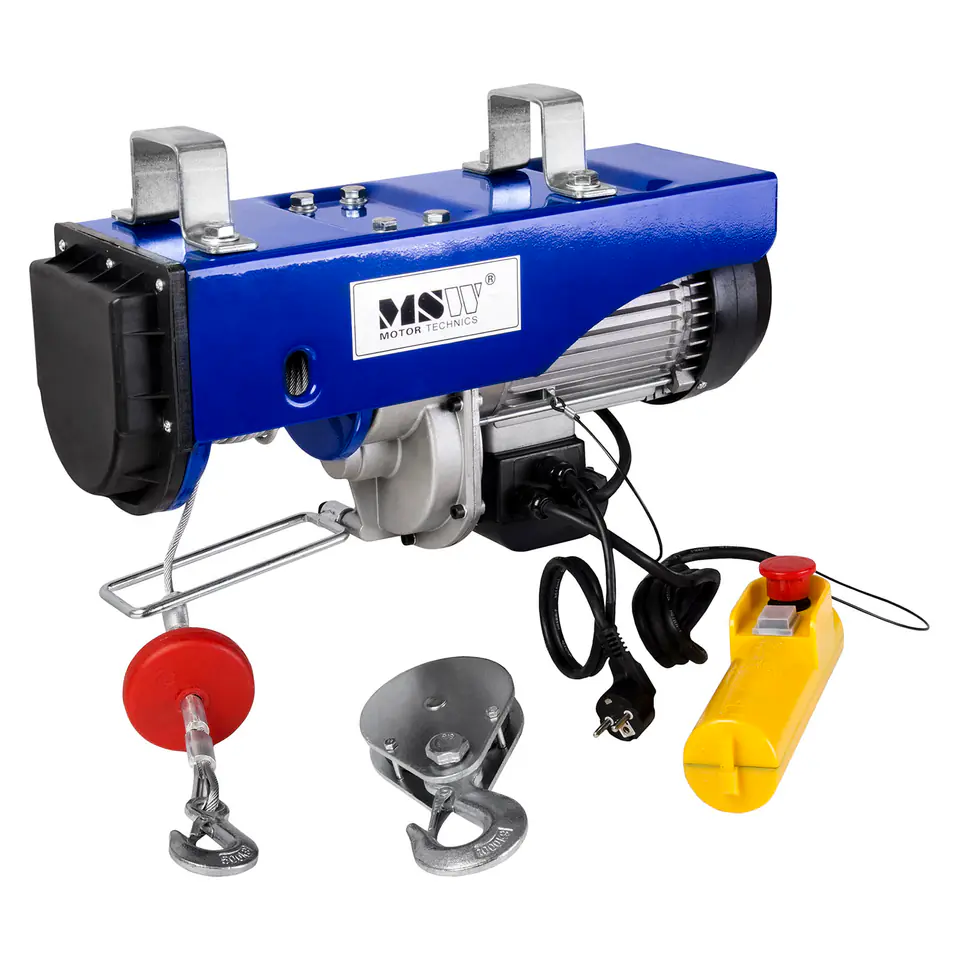

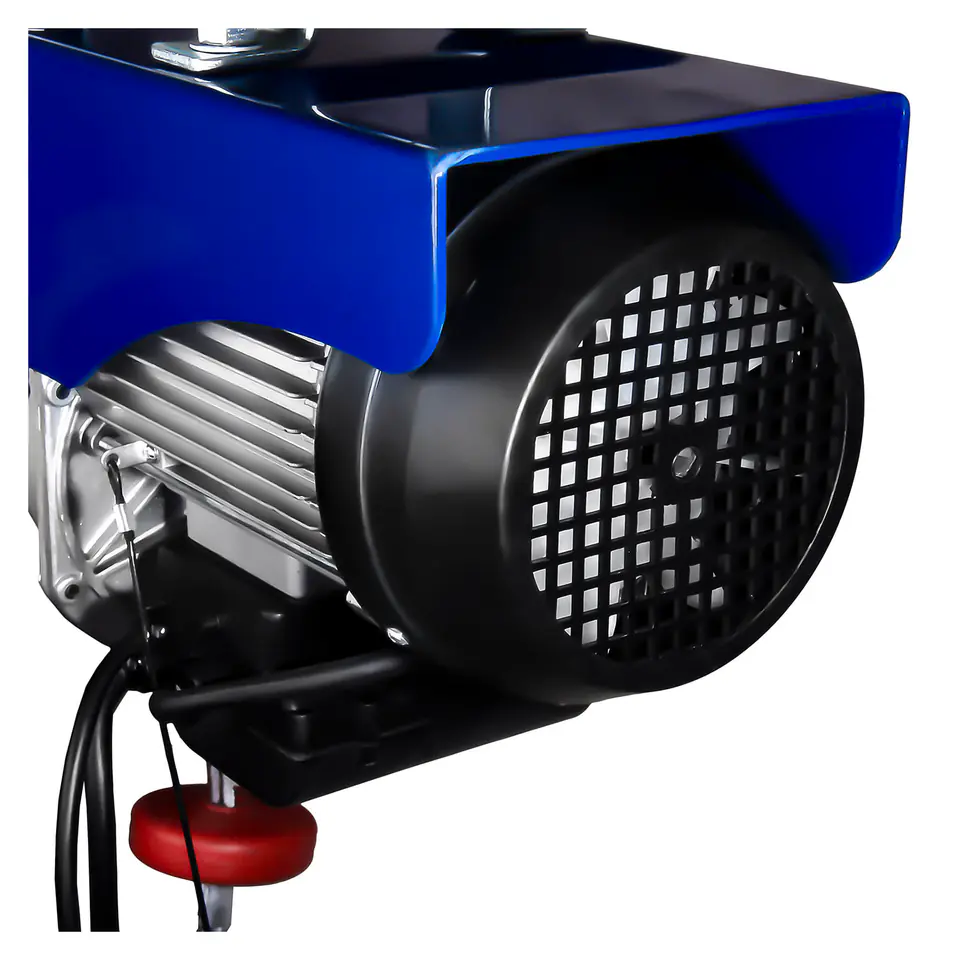

Professional rope winch with electric motor from the German manufacturer MSW. The warehouse crane is characterized by a durable construction, excellent parameters, ease of assembly and operation, and safety of use. The device is made of durable steel, powder coated. The engine body is made of pressed aluminum.
The modern winch motor is equipped with a magnetic mechanism with a stop function that allows immediate braking of the winch, which guarantees safety and precise and reliable operation. The winch can be mounted to a swing arm or to the supporting structure of the hall or warehouse. Two steel clamps are used to fix the device, which are included with the device.

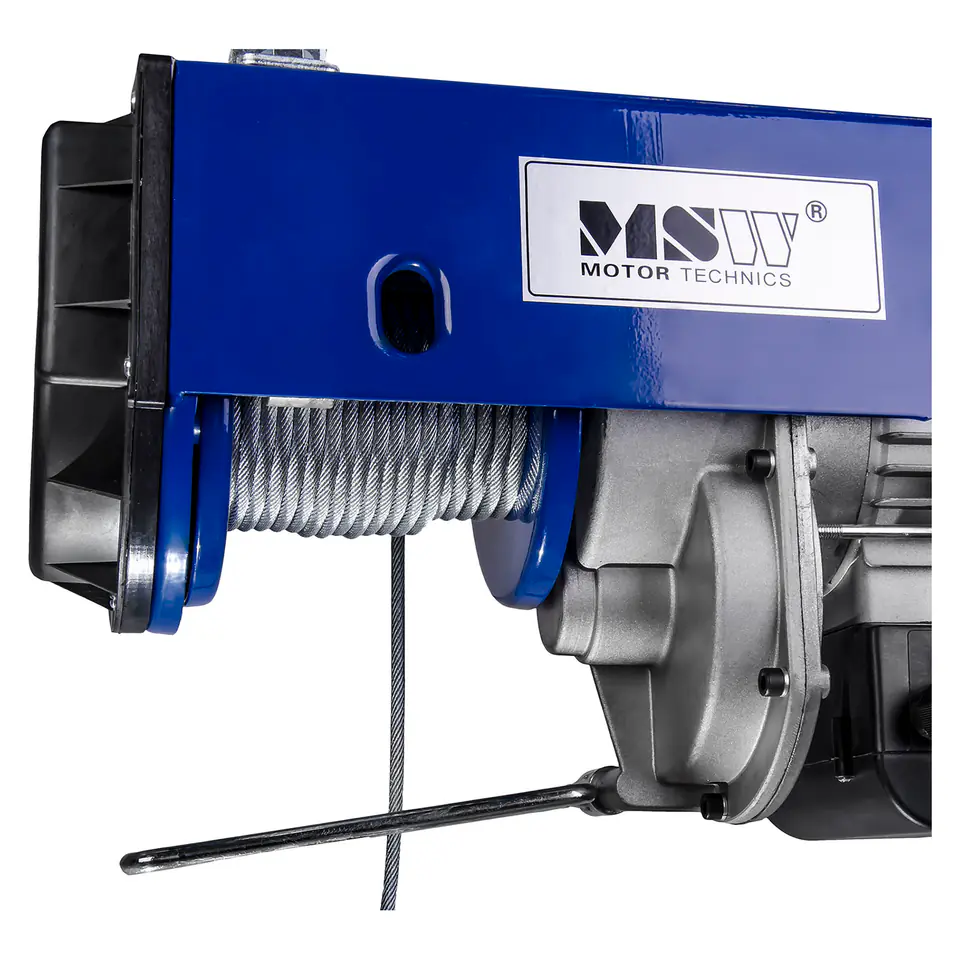

The drum for winding the rope is made of steel and is equipped with guides for accurate rope laying. Nand the drum winding the rope is fitted with a limit brake, which protects the device and the rope from excessive winding. Another protection of the crane is a mechanism that protects the drum against excessive overload and locks the rope in the event of an interruption in the energy supply.
The rope mounted in the device is made of durable stainless steel and manufactured in such a way as to prevent it from twisting during operation. In the body of the device there is a place to fix the rope when using a blob that doubles the lifting force. The control cassette – an integrated wired remote control – is equipped with a winch control button and a safety switch. All control can be done with one hand. The control cable is additionally protected by a break-break cable and has a length of 135 cm.

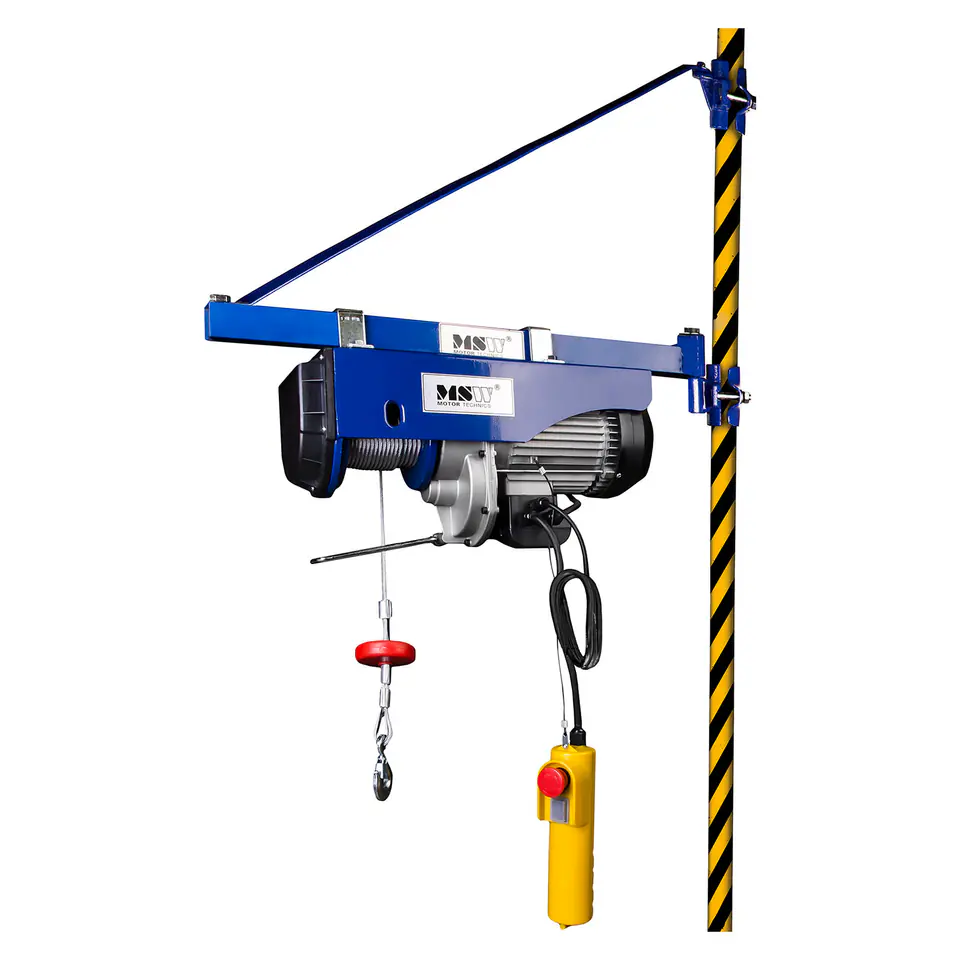

The rope crane mounted on the swivel arm is perfect for warehouses, production halls, hangars, loading ramps, car workshops and wherever proven and safe equipment for the heaviest tasks is required.
Technical parameters:
- - Model - PROLIFTOR 1000
- - Catalogue number - 6007
- - Stan - New
- - Rope material - Steel CK45
- - Load capacity - 495 kg / 990 kg (Without blewocza/with zbloczem)
- - Lifting height - 12 m / 6 m (Without blewocza/with zbloczem)
- - Lifting speed - 8 m/min / 4 m/min (Without blewcza/with a flicker)
- - Rope length - 12 m
- - Rope diameter - 5.6 mm
- - Cable break resistance - > 2500 kg
- - Duty cycle - S3-20% 10 min
- - Main voltage - 230V- 50Hz
- - Motor efficiency - P1 1600W
- - Remote control - Yes
- - Insulation class - B
- - Protection level - IP54
- - Power cord - 1.4 m
- - Dimensions (LxWxH) - 52 x 17.5 x 25 cm
- - Weight - 30.2 kg
- - Shipping dimensions (LxWxH) - 64 x 26 x 38 cm
- - Shipping weight - 33.3 kg
- - Rope winch
- - Remote control with cable
- - Handles – 2 pcs.
- - Set of screws
- - Zblocze
- - Manual EN
- - THERE IS NO swivel arm - to buy separately in our store
