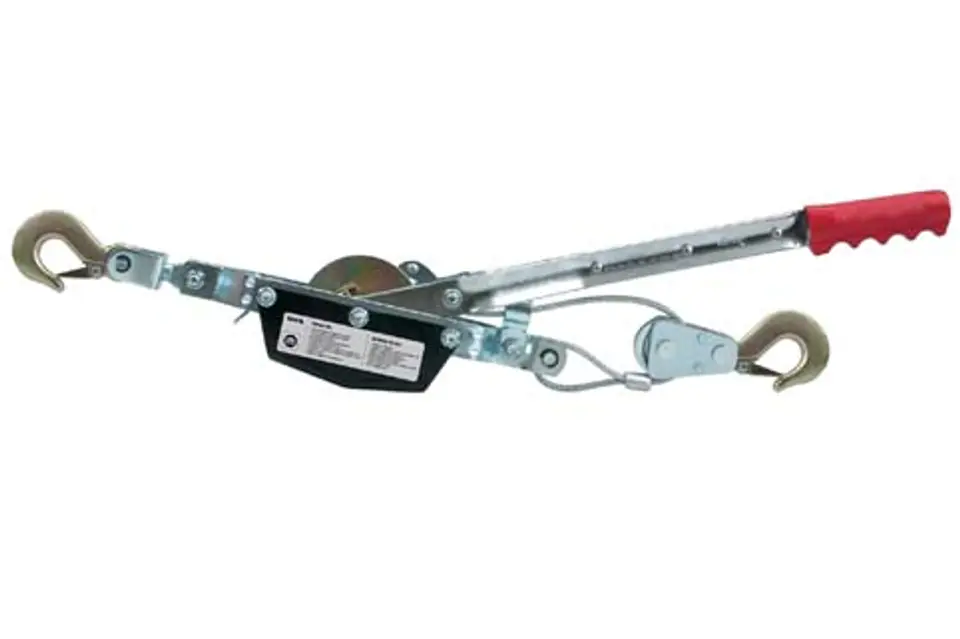

A rope winch with a manual drive is used to transport loads in a horizontal plane.
It was made of steel rope and a lever driving a drum with a ratchet mechanism with a ratio of 15: 1.
Its design does not allow to lift the load, it has been optimized for the purpose of dragging the mass along the horizontal plane.
For this purpose, a maximum value of the pulling force of the product equal to 1000 to 1500 decanetons (1 daN = 10 N = 10 kg*m*s2) is given.
Maximum pulling force -0 1daN ? 1kg [daN]1300
Rope diameter[mm]5
Leverage ratio-015:1
