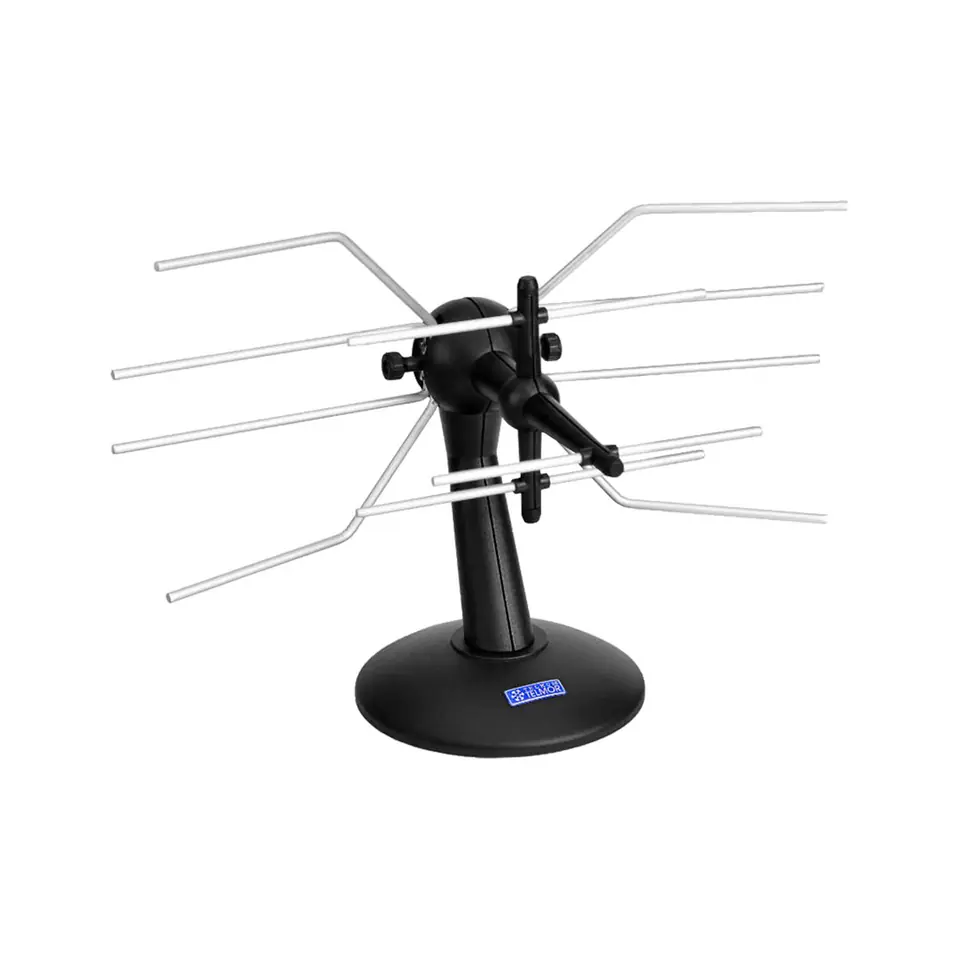

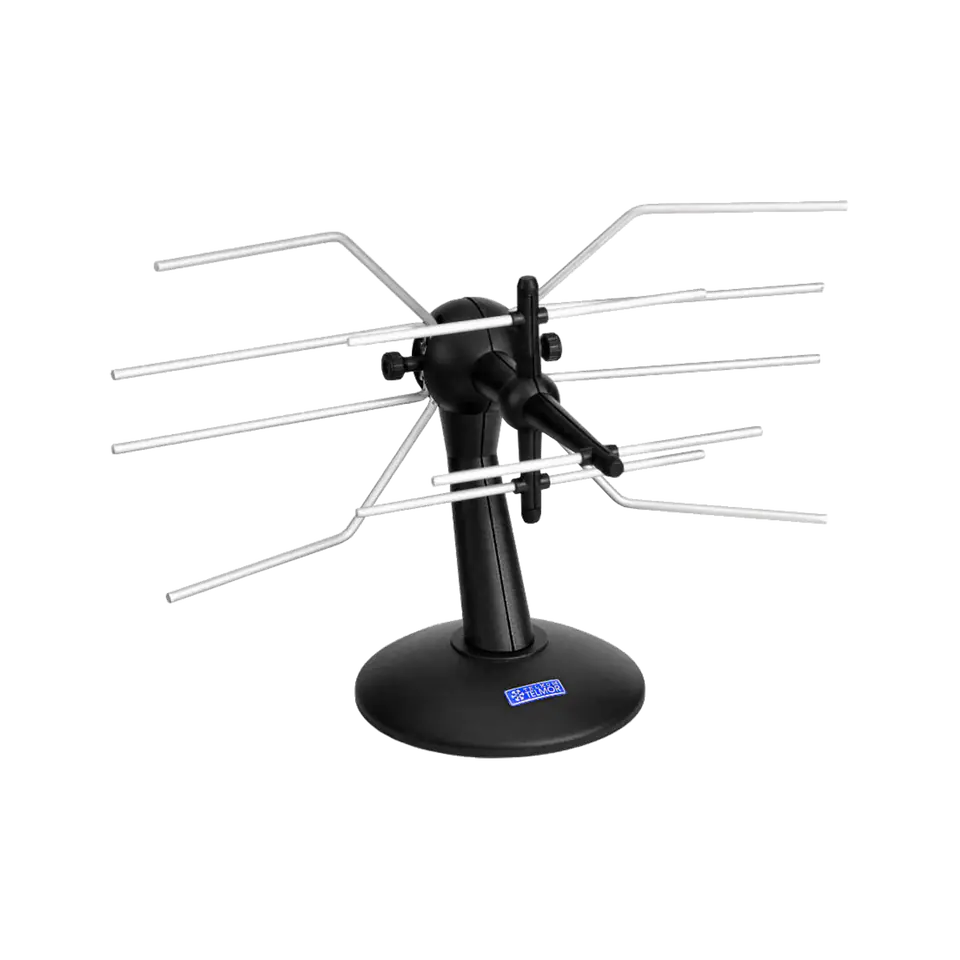

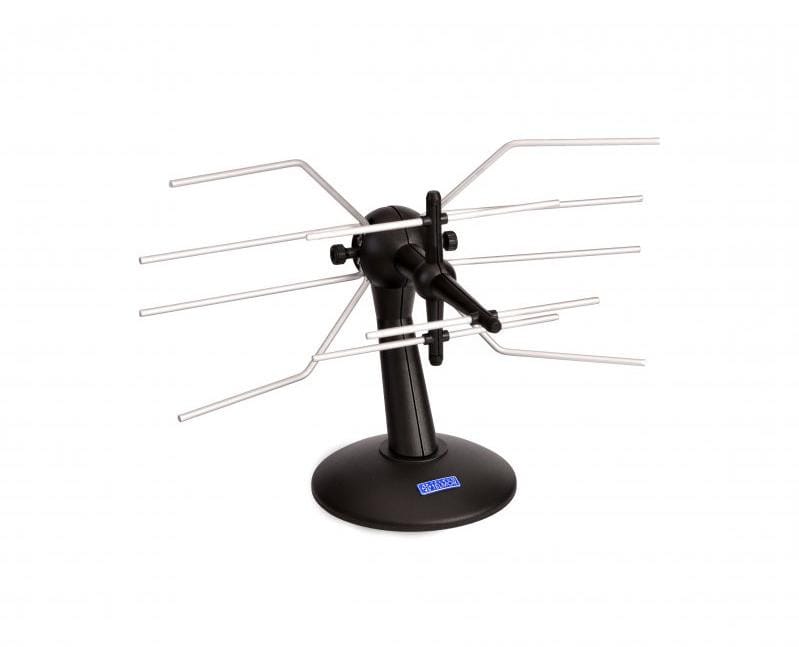

Room TV Antenna DSP-860 5G Protected Telkom Telmor

----------
Features
----------
• Antenna adapted to receive digital signals (DVB-T2)
• Built-in band-pass filter 88-694MHz
• Built-in >20dB antenna preamplifier
• Multidirectional reception of RTV signals
• Possibility of direct power supply of the preamplifier from the DVB-T2 tuner
• Simple antenna installation in line with the "plug & play" concept

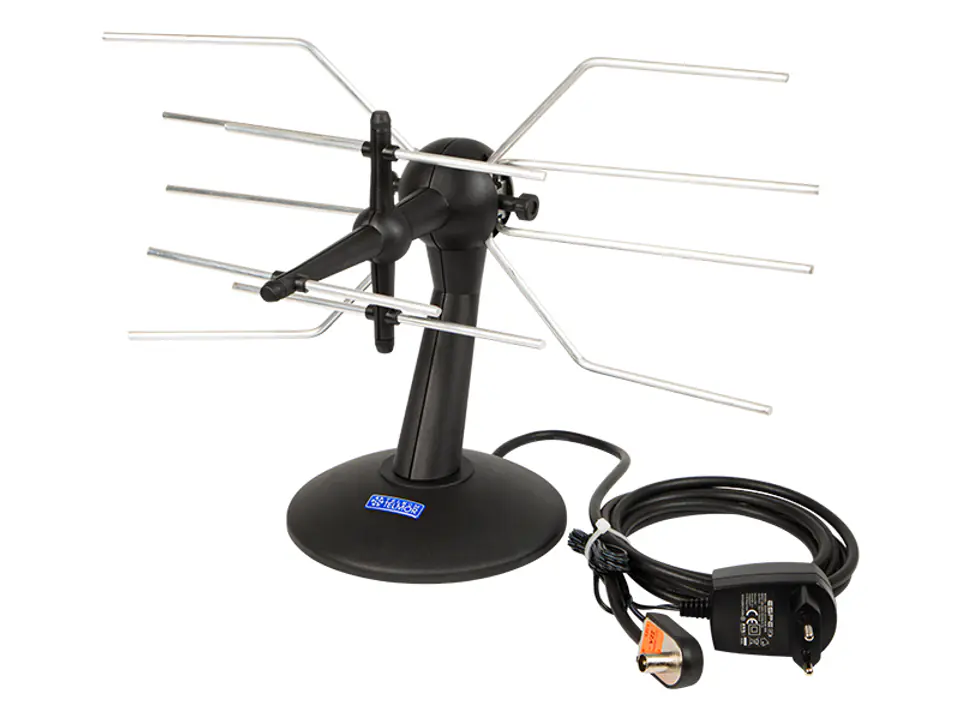

• Includes professional ZZA-7 power crossover with power supply.

----------
Specifications
----------
Operating Frequency Range: 88-694MHz
Operating band: FM/ VHF/ UHF
Gain / Effectiveness*: 30~33 dB
Out-of-band filter attenuation: >26 dB @ 720 MHz
Impedance (internal symmetrizer): 75 Ohm
Antenna preamplifier power supply: +5~24 V DC / max. 31 mA
Possibility of direct power supply from DVB-T tuner: yes
Output connector type: built-in cable with IEC plug
Antenna dimensions unfolded: 255 x 500 x 230 mm
Carton dimensions: 260 x 300 x 195 mm
Net Weight : 0.64 kg

* losses in the symmetrizer have been taken into account
