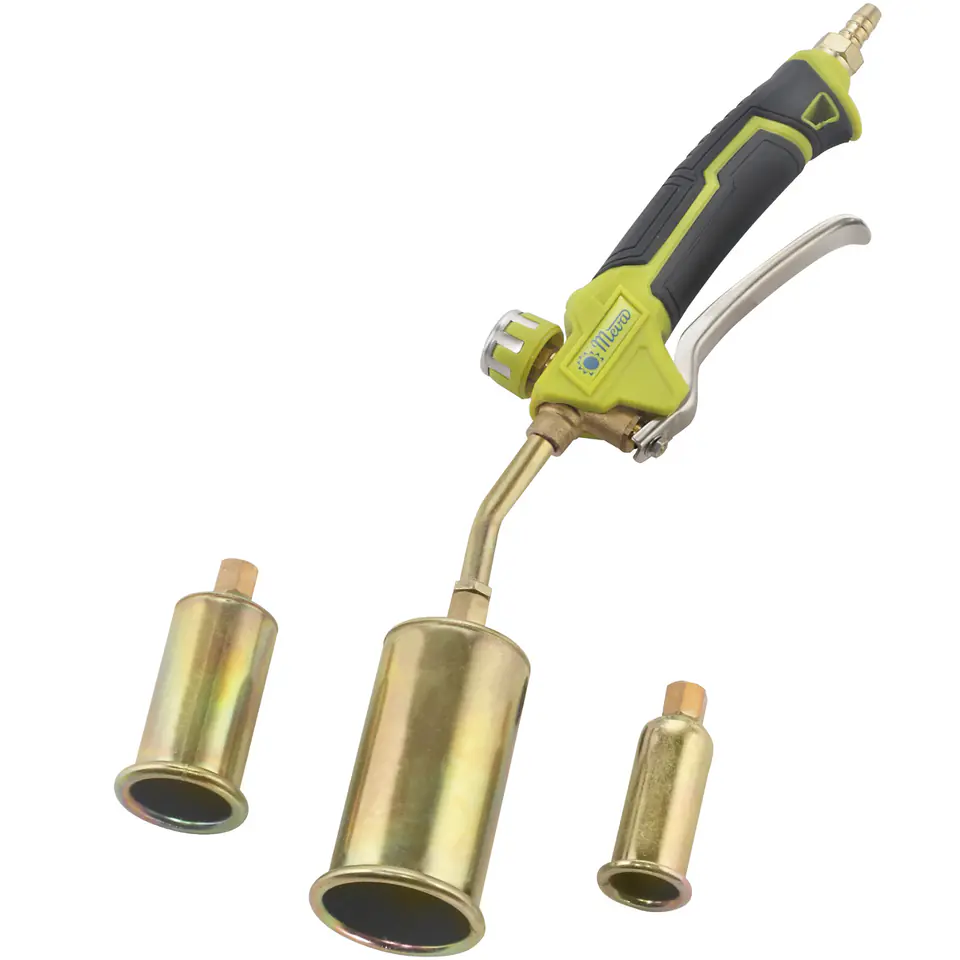

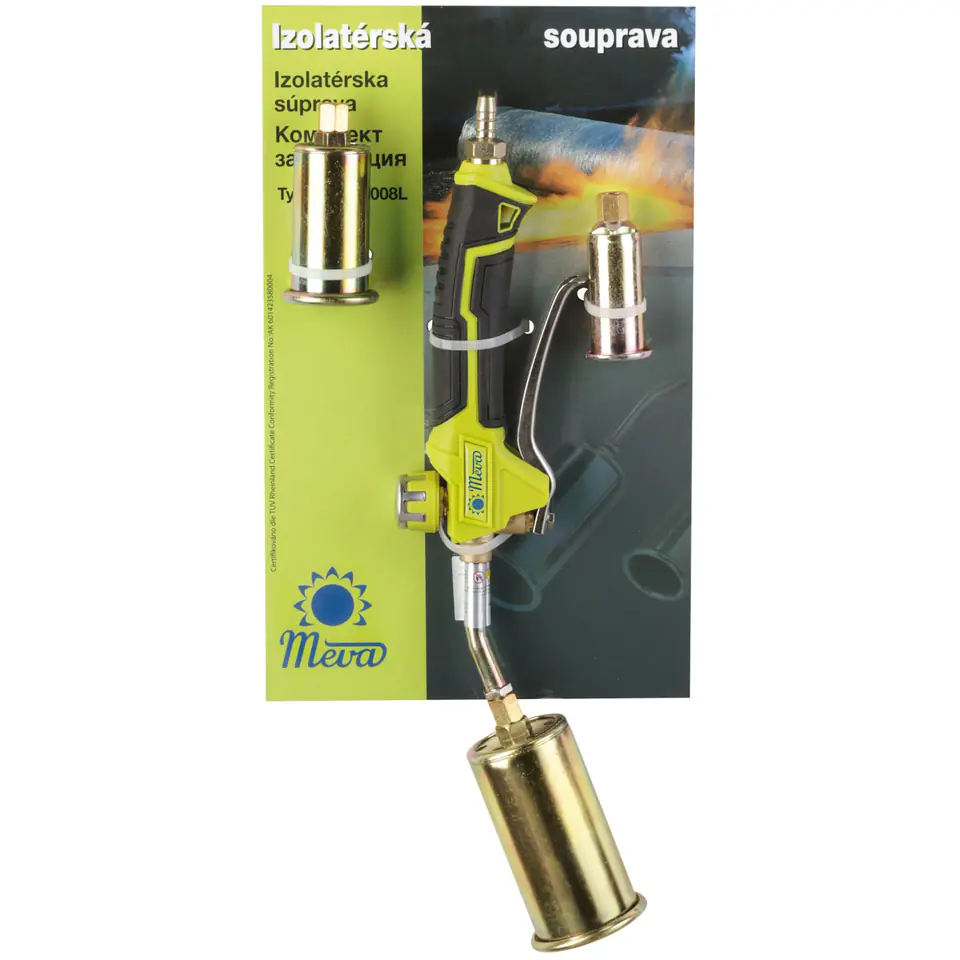

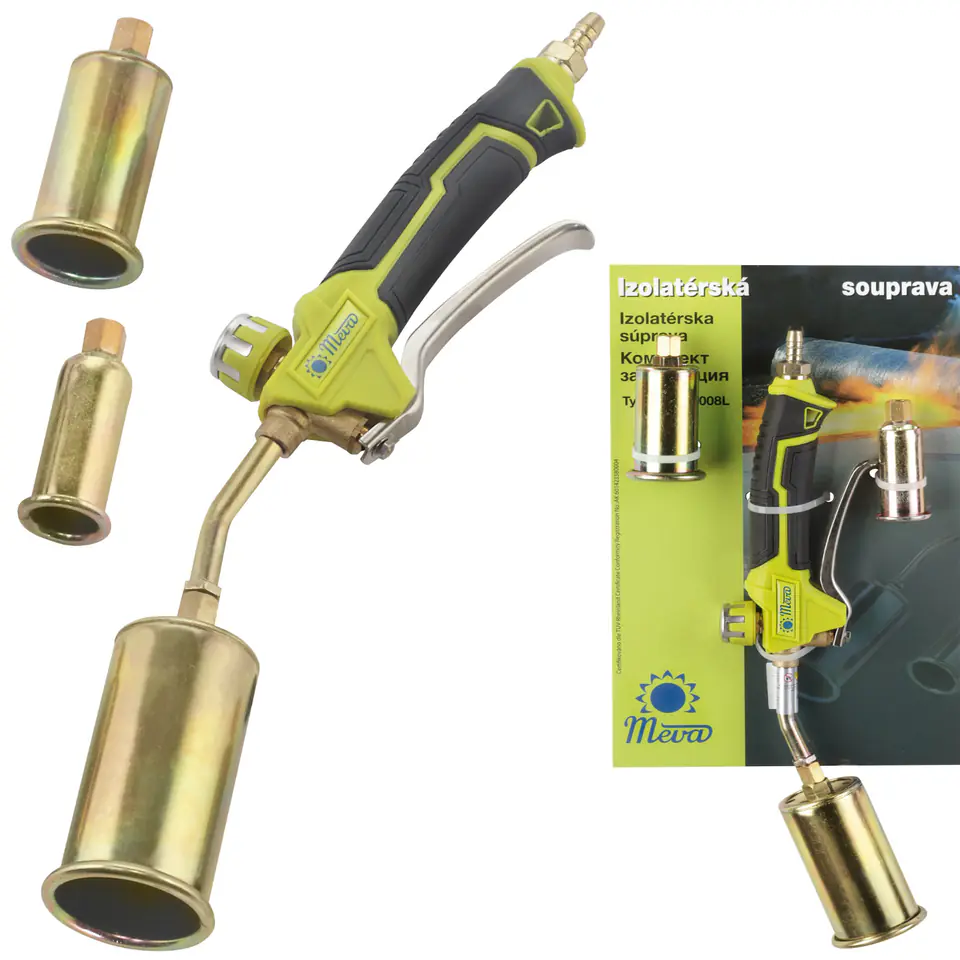

1010660 High quality productMEVA existing since 1898. durable and effective gas burner for roofing work. with a power of up to 28 kWThe characteristics and functions of a construction gas burner:
- - high power effectively warms up or melts the material,
- - smoothly adjustable flame,
- - easy and economical to use,
- - contoured handle and light weight increase the comfort of work.
- - Fuel source: 2 or 10 kg LPG cylinder
- - Fuel: G30 (propane, butane or a mixture thereof)
- - Recommended working pressure of burners: 1 ÷ 4 bar
- - Connection to the gas cylinder - two options:
- with hose and cable ties: tip for connecting the hose length 28mm / dia. 8mm
- by G 3/8" L connector
- -Power consumption (at 2 ÷ 3 bar): 3.7 kW
- -Consumption (at pressure) 2 ÷ 3 bar): 265 g/h
- -Nozzle diameter (designation): avg. 0,35 mm (No. 35)
- -Power consumption (at 2 ÷ 3 bar): 6.3 kW
- -Consumption (at pressure) 2 ÷ 3 bar): 450 g/h
- -Nozzle diameter (designation): avg. 0,50 mm (No. 50)
- -Power consumption (at 2 ÷ 3 bar): 28 kW
- -Consumption (at pressure) 2 ÷ 3 bar): 2000 g/h
- -Nozzle diameter (designation): avg. 1.2 mm (No. 120)
- - gas burner for insulation,
- - 3 nozzles (⌀ 25 / 35 / 50 mm).
