Rolling mill roller bending machine for profile pipes 0-360 degree 660-1200 mm

€290.18
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
MSW
Product code:
10061170 / 4062859953933

Manufacturer no: 10061170

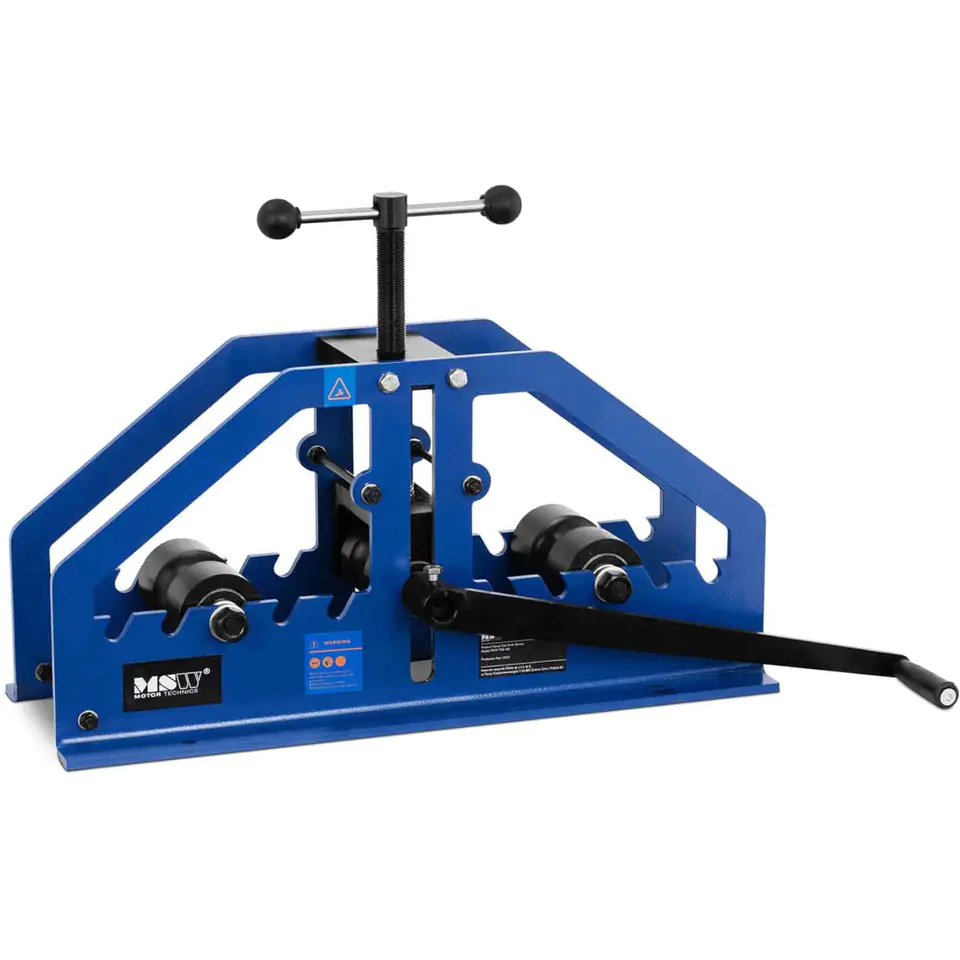

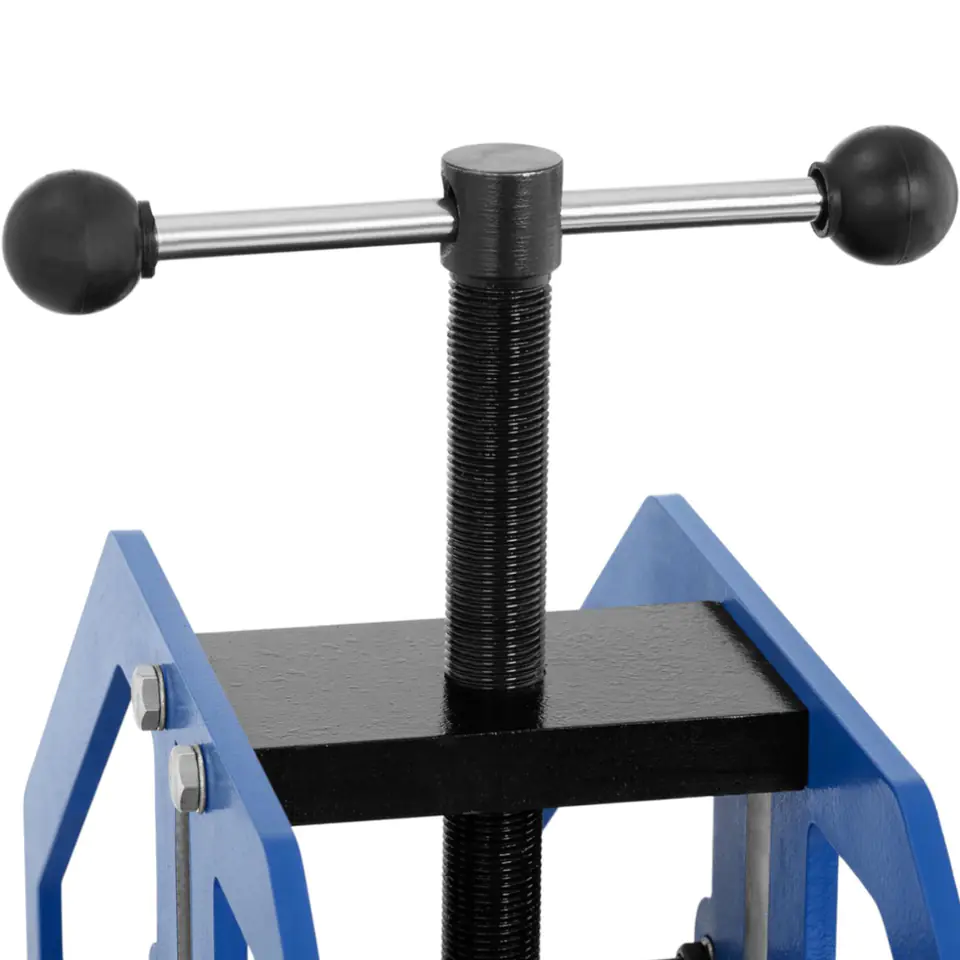

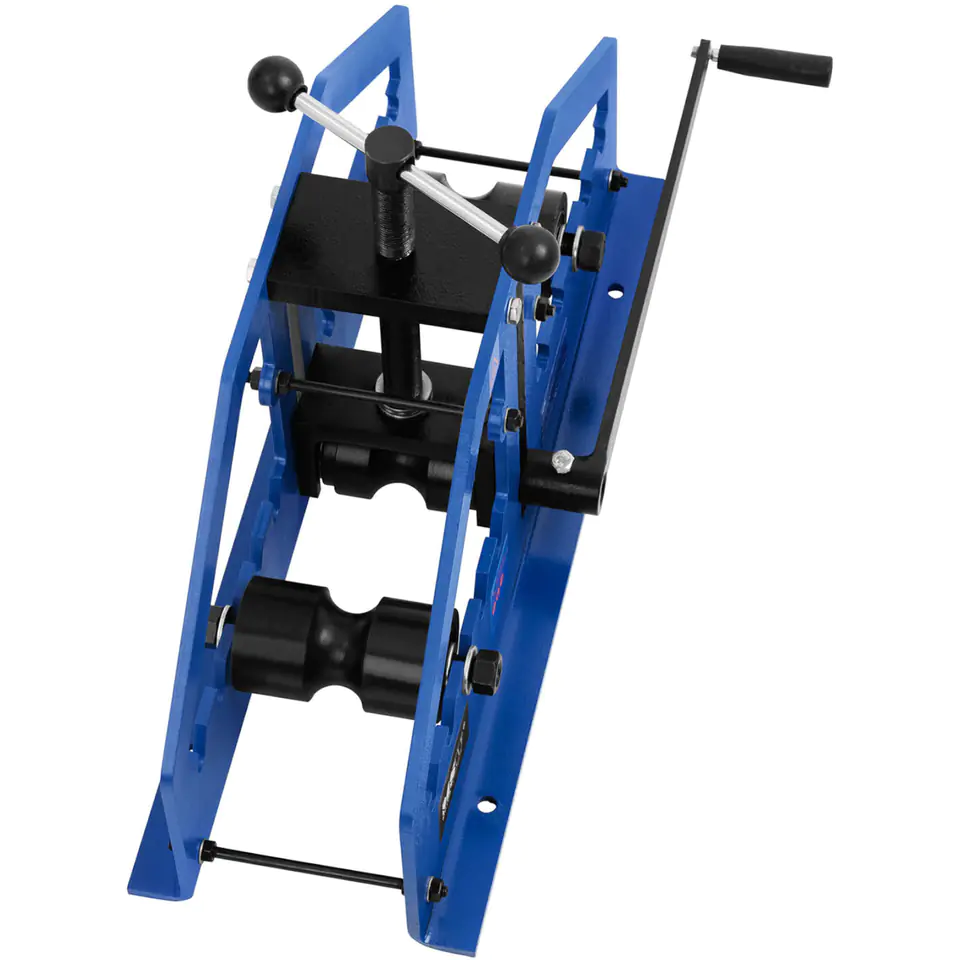

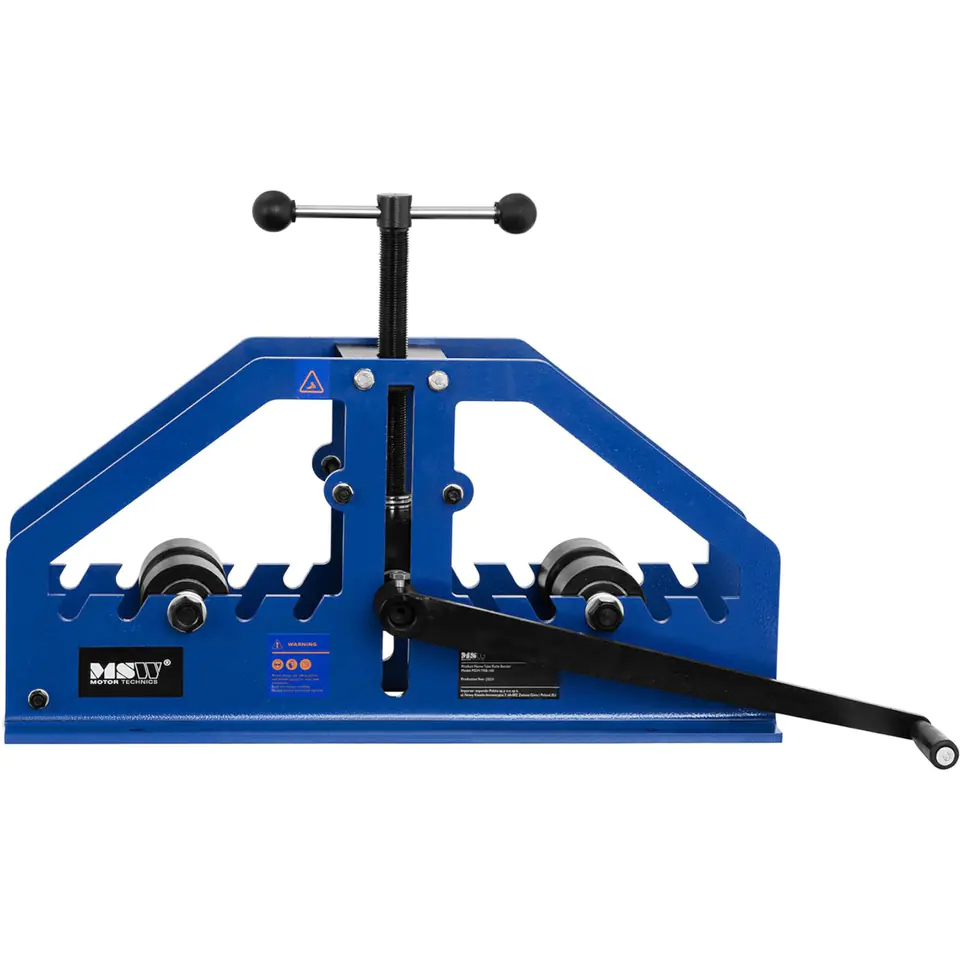

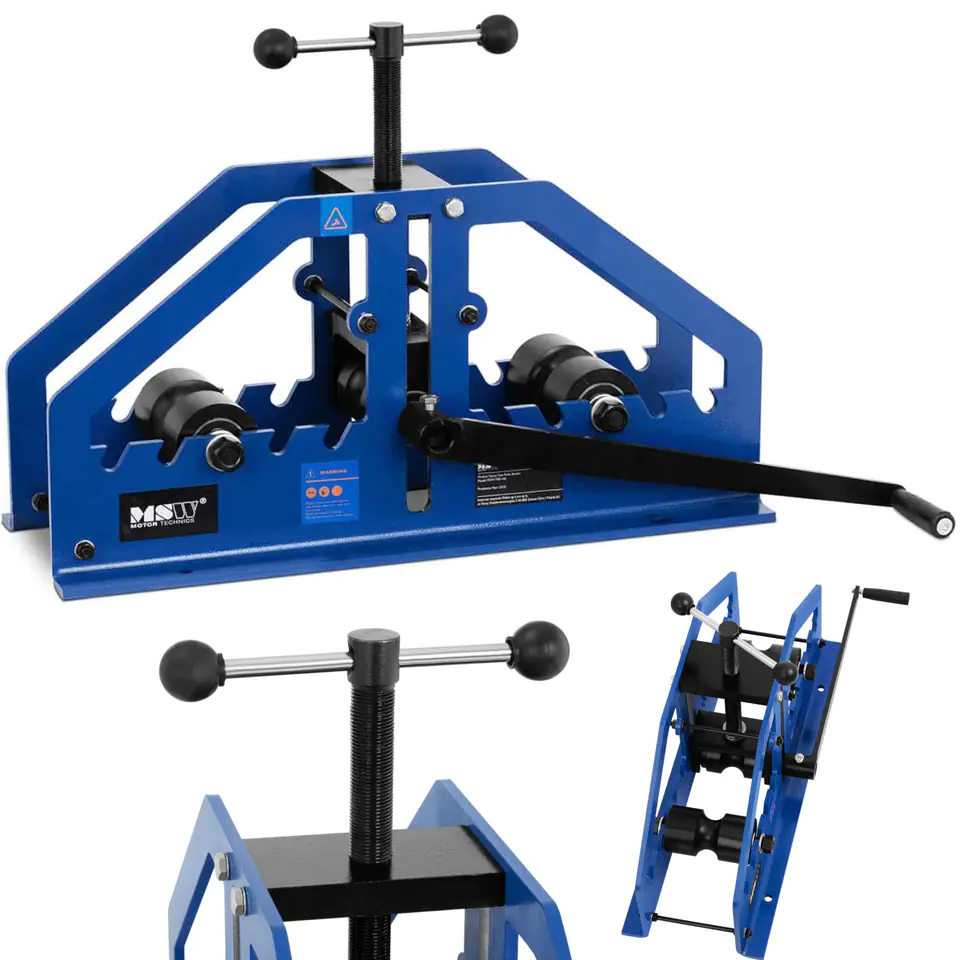

The MSW pipe rolling machine will work well for modeling metal materials used in construction, car workshops or hobby workshops. The device can be used to shape structural pipes (gr. 1-1/2", min. curve radius 20") and wire pipes (gr. 2", min. arc radius 70"). Also suitable for flat bars (gr. 1-1/4", min. arc radius 10"), channel bars (gr. 1 x 2", min. arc radius 60") and square profiles (gr. 2", min. curve radius 70") and rectangular profiles (gr. 1 x 2", min. arch radius 60"). The bending range is from 0 to 360. The adjustable form allows you to adjust the rolling mill to the dimensions of the material being processed. The top roller is set with a large knob. The minimum rolling diameter is 660 mm and the maximum is 1200 mm. The construction of the device is made of low-carbon steel and the rollers are made of carbon steel. Mounting holes with a diameter of 11 mm allow you to attach the equipment to the ground.
Product features:

  • - For processing pipes, profiles and flat bars,
  • - Bending range from 0 to 360,
  • - Easy manual operation,
  • - Efficiently setting the company using a large knob,
  • - Low carbon steel strength.
Technical parameters:
  • - Catalogue number - 10061170
  • - Article status - New
  • - Model - MSW-TRB-100
  • - Material - Carbon Steel, Steel
  • - Color - Blue
  • - Hole diameter [mm] - 11
  • - Outlet diameter [mm] - 38
  • - Machining angle [] - 0-360
  • - Cable diameter [mm] - 35
  • - Material thickness [mm] - 8
  • - Minimum rolling diameter [mm] - 660
  • - Dimensions (LxWxH) [cm] - 60 x 22 x 50
  • - Weight [kg] - 29
  • - Shipping dimensions (LxWxH) [cm] - 62 x 24 x 38
  • - Shipping weight [kg] - 33
Included:
  • - Pipe rolling machine
  • -Lever
  • - Adjustable form
  • -Manual

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
