Manufacturer number: MSW 10060184
The roller guide for electric winches will effectively facilitate the winding of the rope on the drum of the device. This is possible thanks to a mechanism consisting of four independent rollers. They minimize friction during winding, which increases the life of the rope. The guide is adapted to winches with a lifting capacity of 907 to 1590 kg.
The durability of the product is due to steel, which is characterized by resistance to mechanical damage. To increase the protection of the guide against weather conditions, it is painted with black paint.
Product features:
- - Versatility - fits various models of winches with a pull from 907 to 1590 kg,
- - Functionality - 4 rollers guarantee smooth retraction of the rope,
- - Durability - construction made of steel covered with paint.
- - Model - PROMOUNT RS 2000/3500
- - Catalog No. - 10060184
- - Article status - New
- - Material - Steel
- - Coating - Black paint
- - Type of guide - Four-roller
- - Distance between horizontal rollers - 14.5 mm
- - Distance between vertical rollers - 66.3 mm
- - Roll diameter - 15.6 mm
- - Screw hole spacing - 109 mm
- - Requirements for compatible winches - Matching bolt hole spacing
- - Pull - 2000-3500 lbs (907-1590 kg)
- - Dimensions (LxWxH) - 7 x 13 x 5 cm
- - Weight - 0.6 kg
- - Shipping dimensions (LxWxH) - 9 x 14 x 5 cm
- - Shipping weight - 0.7 kg

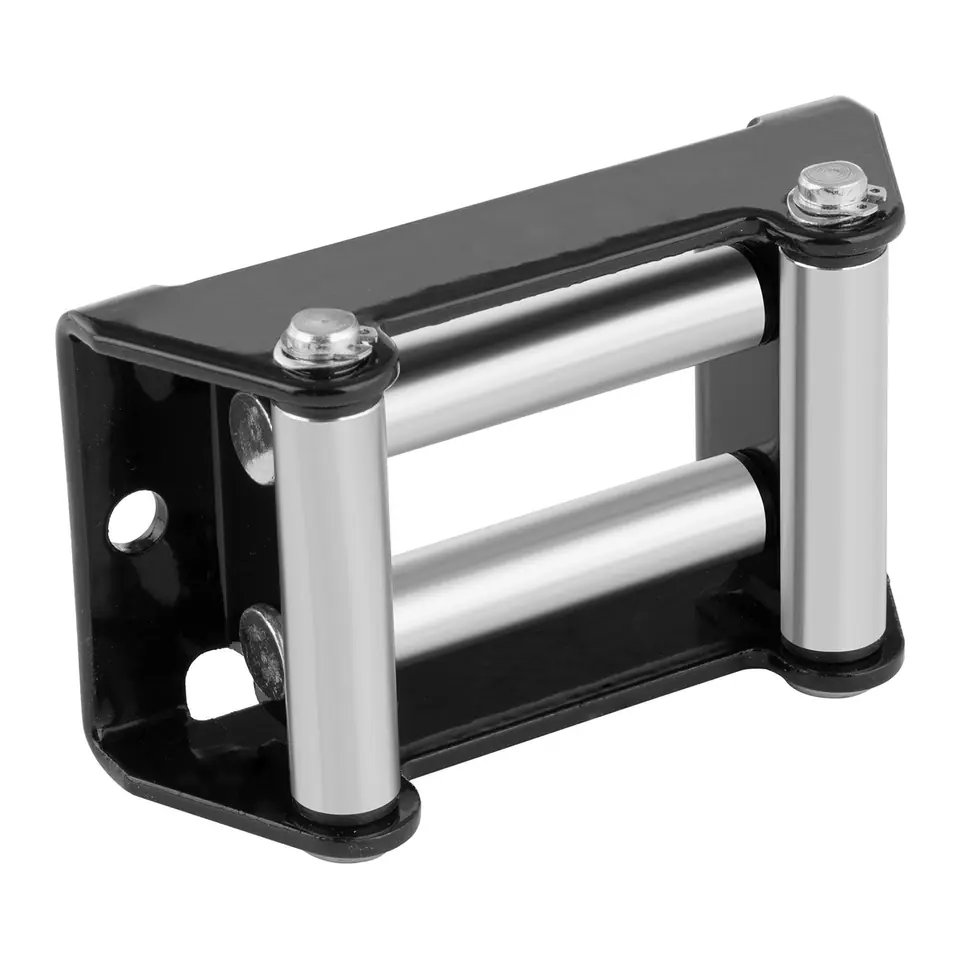

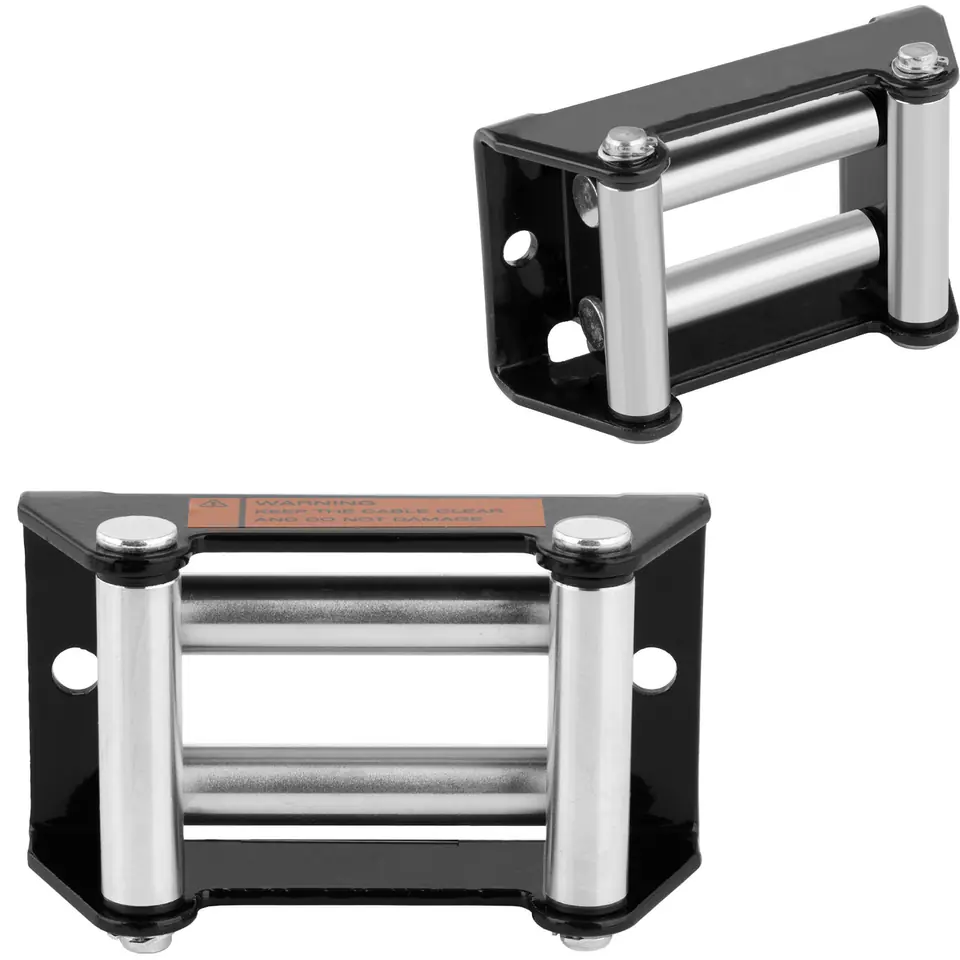

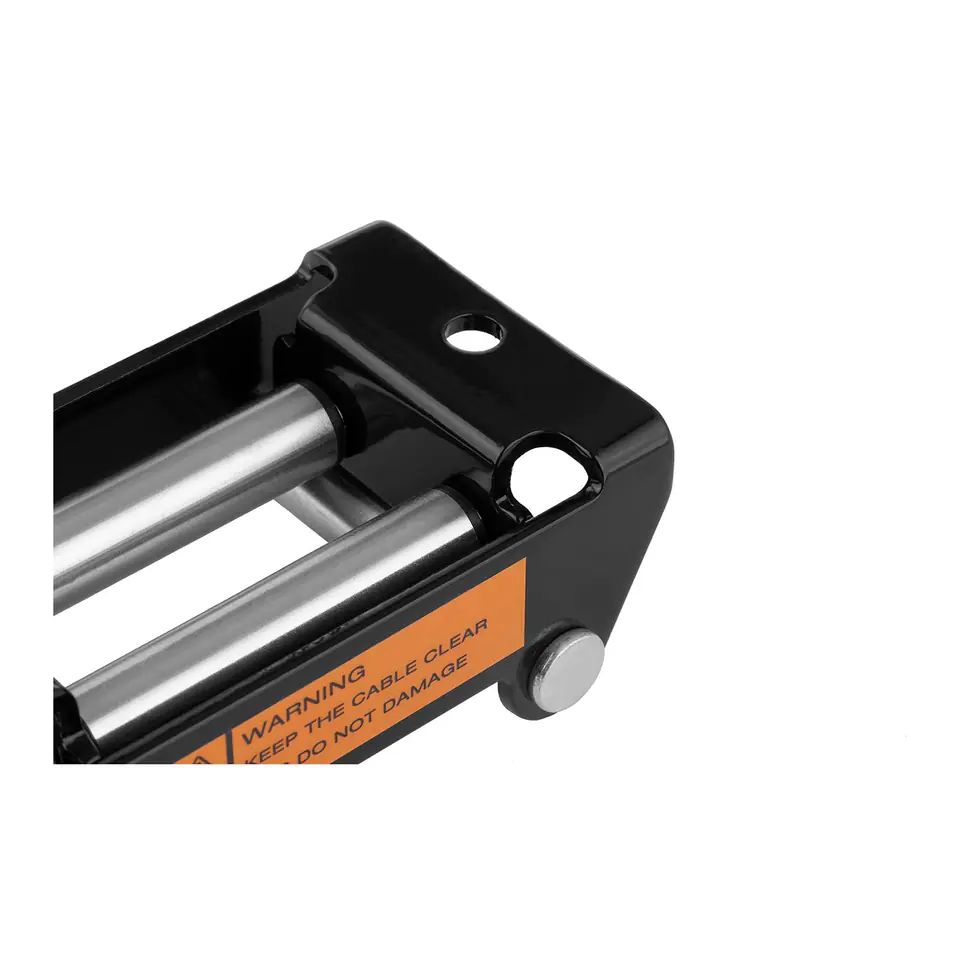

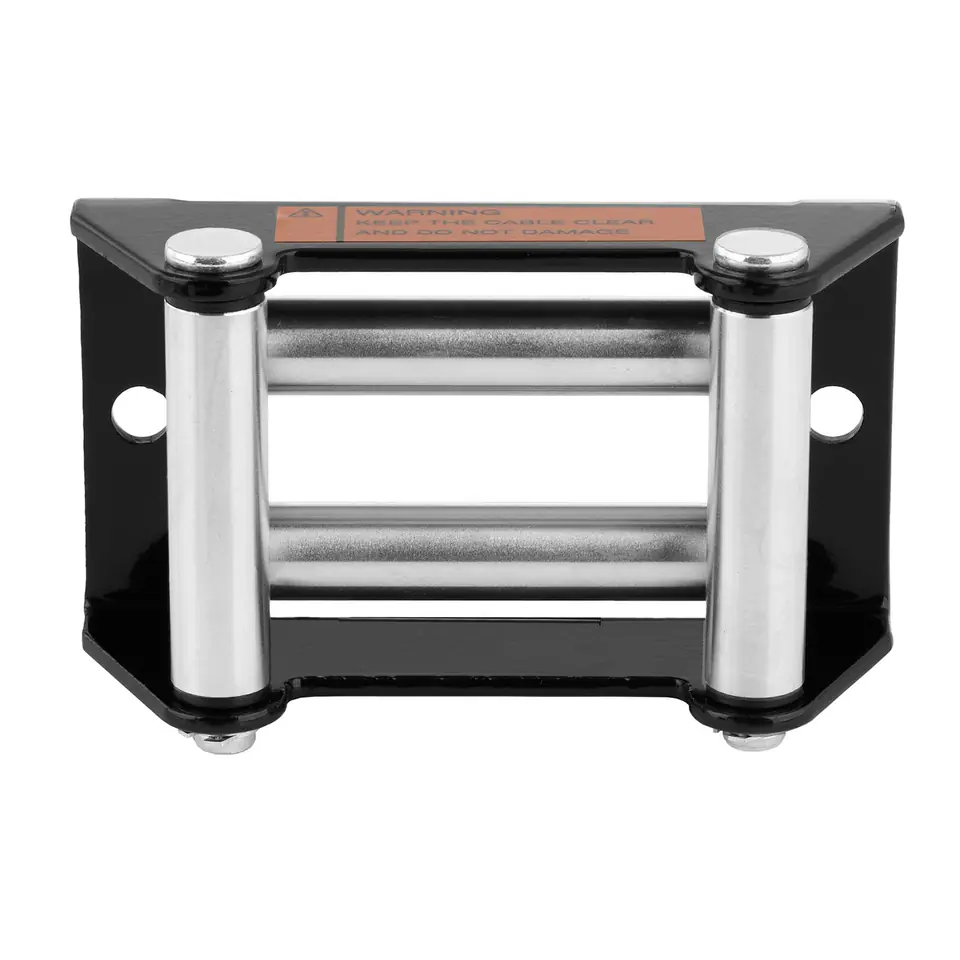

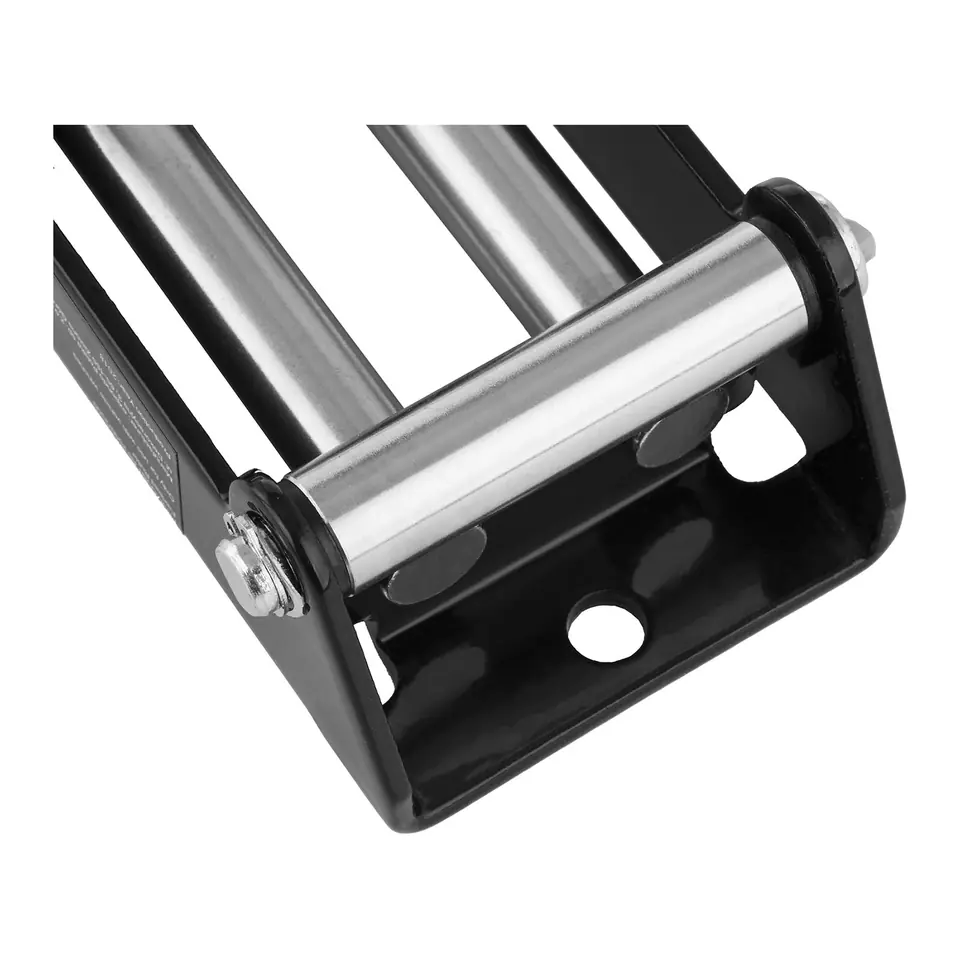

- Roller guide
