The UT-4DR interface enables communication with devices equipped with a serial communication port via a computer networkThe interface is equipped on the one hand with a serial port in the RS485 standard, on the other hand with a socket for connecting a computer network operating in the 10/100 BaseT standard Ethernet.Uk THE UT-4DR charge is identified in the computer network via an IP address that is suitable during its configuration.

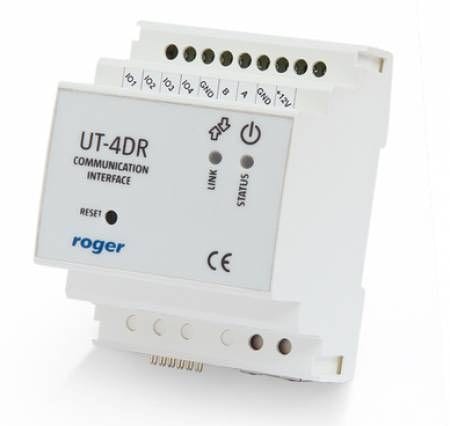

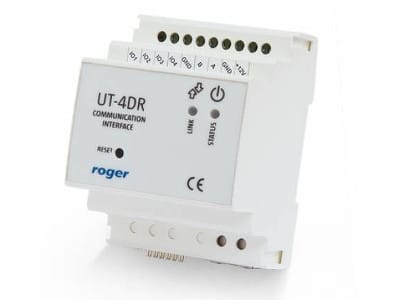

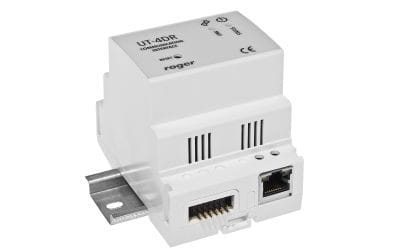

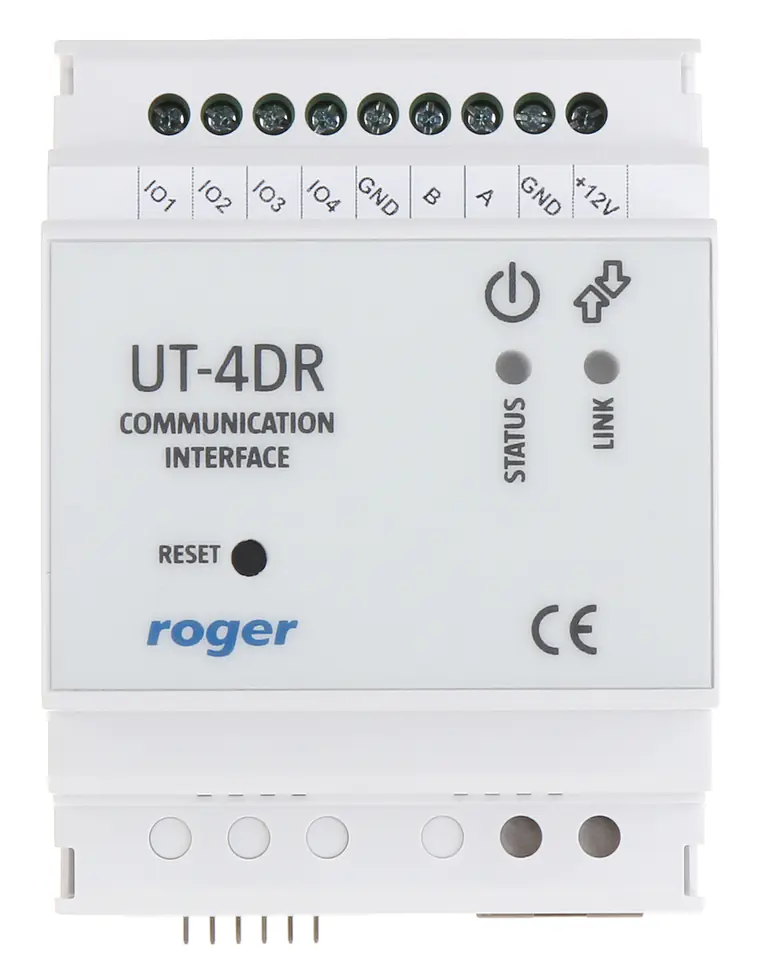

ROGER UT-4DR LAN-RS485 COMMUNICATION INTERFACE
€115.88
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- UT-4DR / 5907608964084
Share this product:
Specification

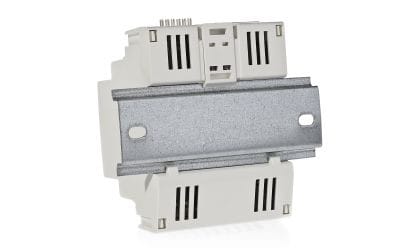

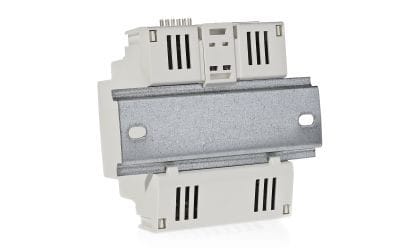

| Assembly:: | DIN rail TS-35 |
|---|---|
| Communication interface:: | RS-485 |
| Current consumption:: | 55 mA |
| Dimensions:: | 85 x 73 x 62 mm |
| Ethernet interface:: | 10/100 Base-T |
| Manufacturer / brand:: | ROGER |
| Operating temperature:: | -10 °C ... 40 °C |
| Permissible relative humidity:: | 10 % ... 75 % (non-condensing) |
| Power:: | 10 V ... 15 VDC |
| Scales:: | 0.110 kg |
| Selected features:: | Fixed or dynamic IP address 4 general purpose I/O lines Web browser control Control I/O lines using Telnet commands |
| Warranty:: | 3 years |
