External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
Pr622-G controller can operate in standalone or network mode
Average current consumption:: | 50 mA |
---|---|
Card reading range:: | Max. 15 cm |
Card support:: | Unique EM 125kHz |
Communication:: | RS-485 RACS (Roger) |

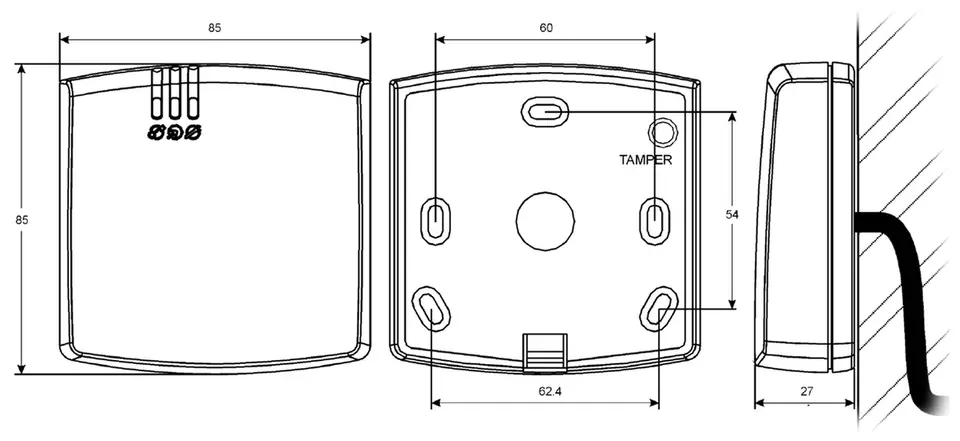

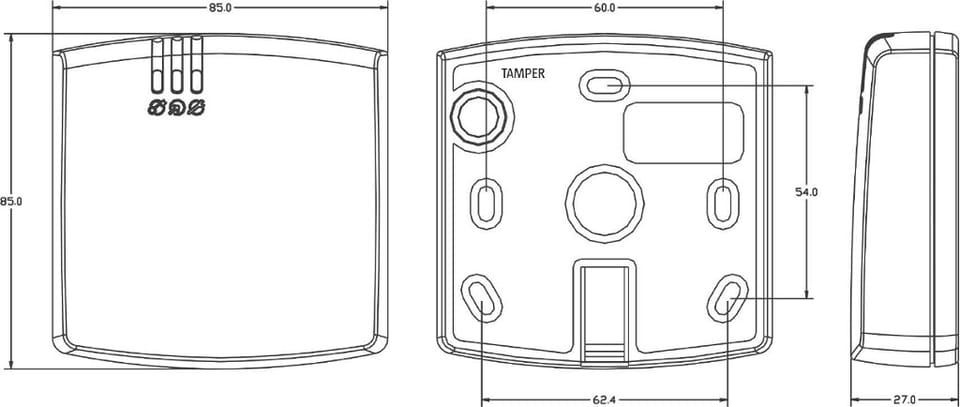

Dimensions:: | 85 x 85 x 27 mm |
Environmental class:: | IV |
Input lines:: | 3 |
Load capacity of relay contacts:: | 1.5 A / 30 V |
Manufacturer / brand:: | ROGER |
Operating temperature:: | -25 °C ... 60 °C |
Output lines:: | 3 |
Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
Power:: | 10 ... 15 VDC |
Scales:: | 0.15 kg |
Sealing:: | IP67 |
Selected features:: | Built-in Unique EM 125kHz proximity reader Cooperation with PRT series 4000 series readers indexed users History of 32000 events 99 time schedules 250 access groups Tamper detection - detachment from the ground |
Warranty:: | 3 years |
External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
Pr622-G controller can operate in standalone or network mode
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
