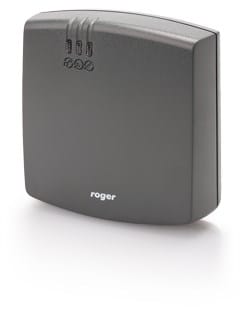

External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
The PR621 controller can operate in standalone mode or network mode
Built-in display: | No |
---|---|
Carrier frequency: | 125 kHz |
Communication:: | RS-485 RACS (Roger) |
Depth: | 27 mm |

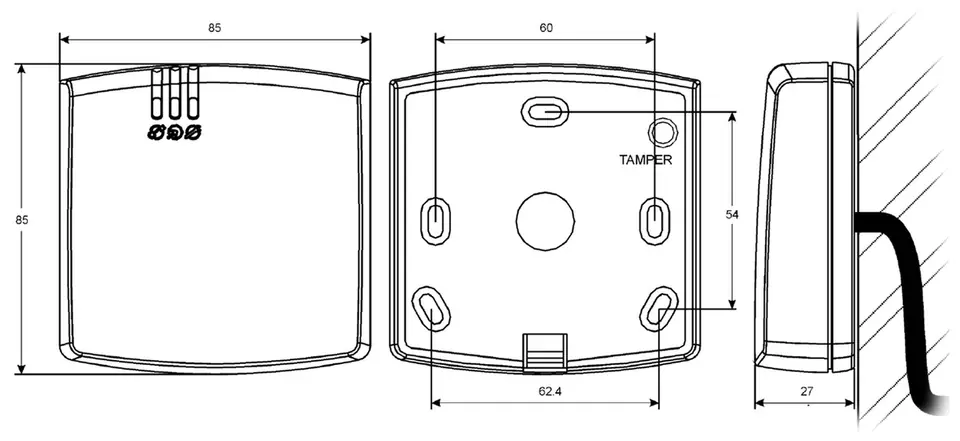

Dimensions:: | 85 x 85 x 27 mm |
Environmental class:: | IV |
Height: | 85 mm |
Input lines:: | 3 |
Load capacity of relay contacts:: | 1.5 A / 30 V |
Manufacturer / brand:: | ROGER |
Number of users: | 1000 user(s) |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | -20 - 60 °C |
Operating temperature:: | -25 °C ... 60 °C |
Output lines:: | 3 |
Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
Power consumption: | 50 mA |
Power:: | 10 ... 15 VDC |
Product colour: | Grey |
Rs-485 ports: | 1 |
Scales:: | 0.15 kg |
Selected features:: | Built-in Unique EM 125kHz Proximity Reader Cooperation with PRT Series Readers 1000 Indexed Users History 250,000 Events 99 Time Schedules 250 Access Groups Tamper Detection - Detachment from the Ground Anti-Passback Feature |
Type: | Basic access control reader |
Warranty:: | 3 years |
Weight: | 120 g |
Width: | 85 mm |
External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
The PR621 controller can operate in standalone mode or network mode
