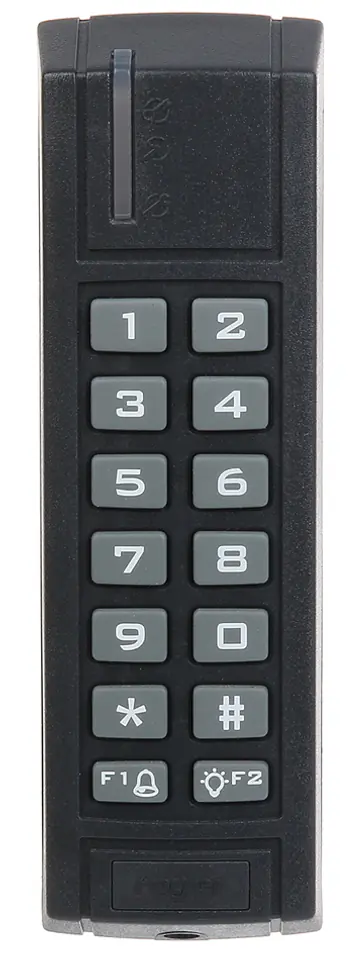

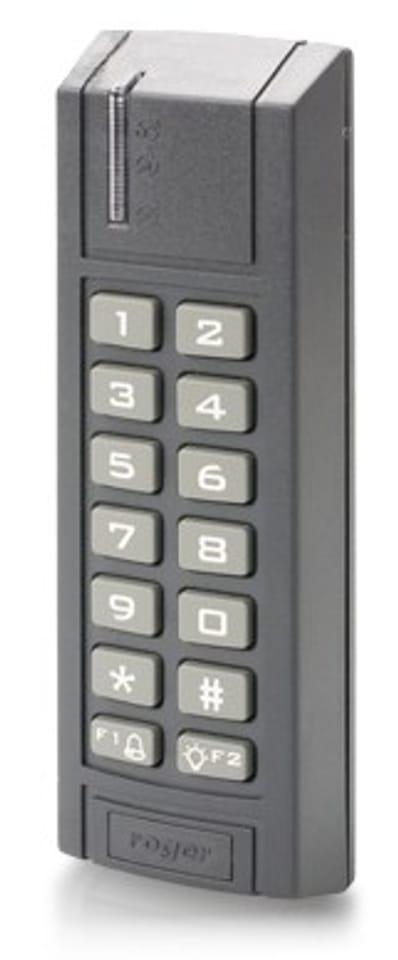

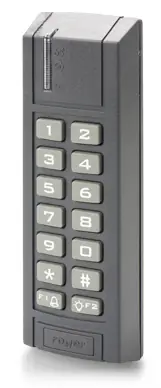

External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz

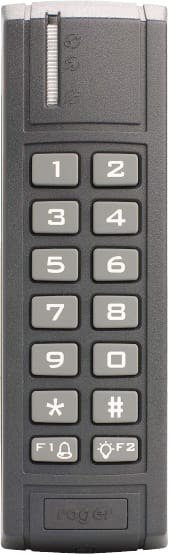

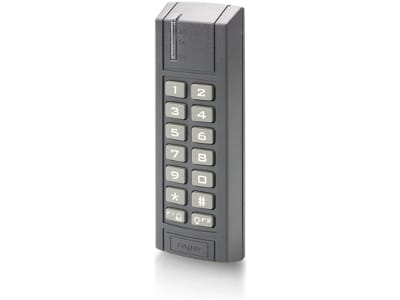

ROGER PR311SE-G ACCESS CONTROLLER
€145.48
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- PR311SE-G / 5907608962066
Share this product:
Specification
| Average current consumption:: | 70 mA |
|---|---|
| Card reading range:: | Max. 15 cm |
| Card support:: | Unique EM 125kHz |
| Communication:: | RS-485 RACS (Roger) |

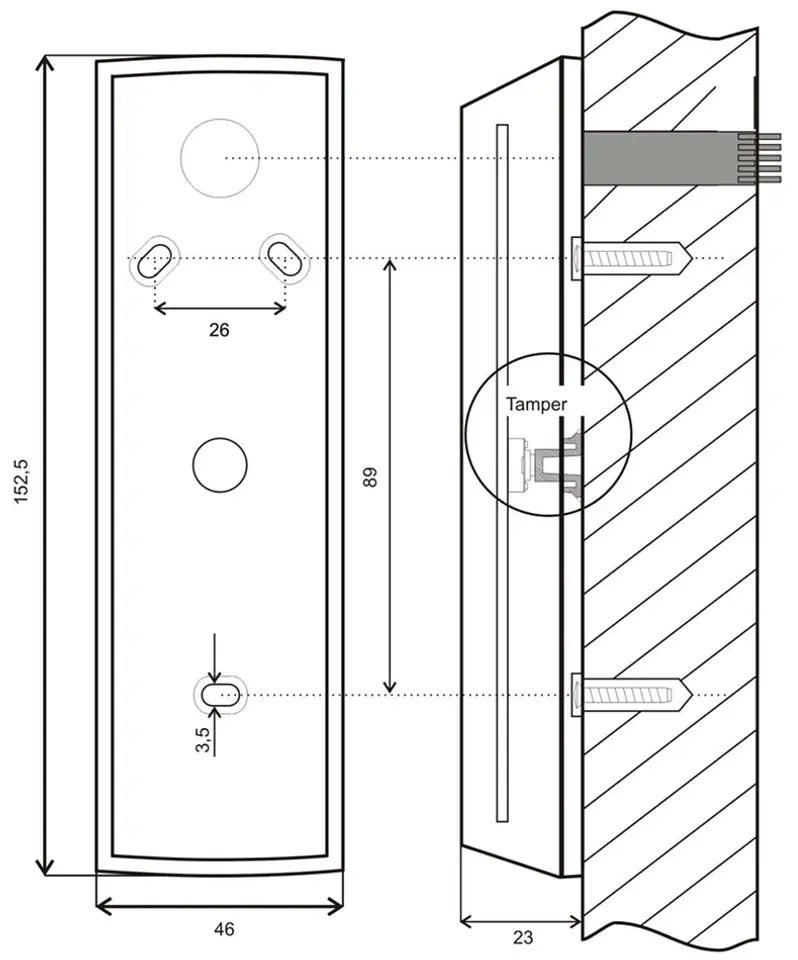

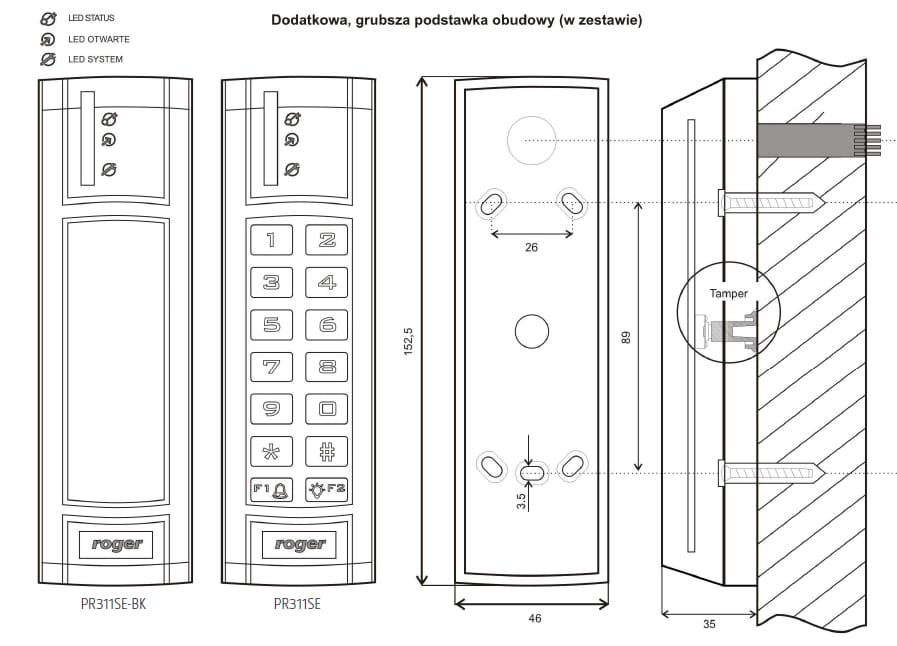

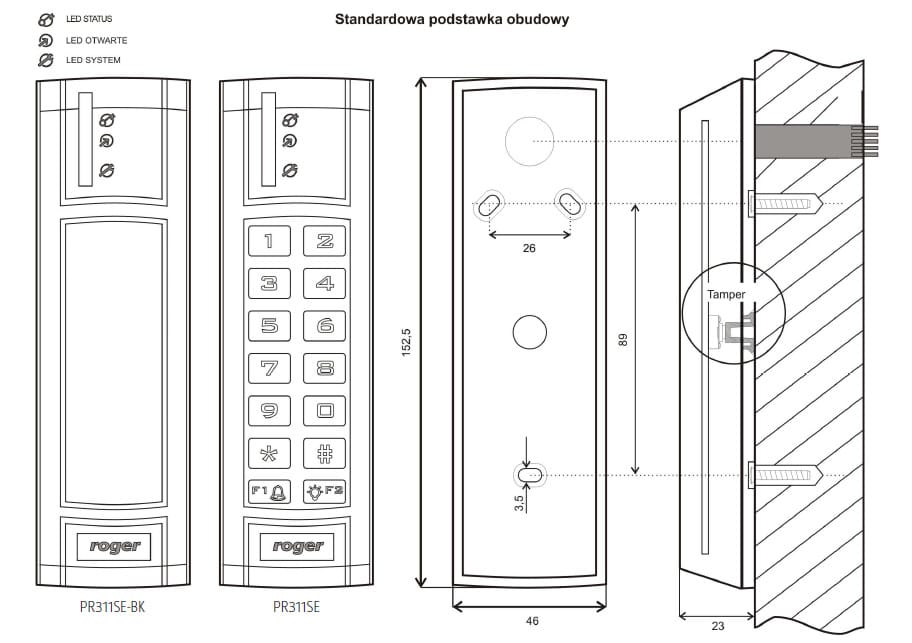

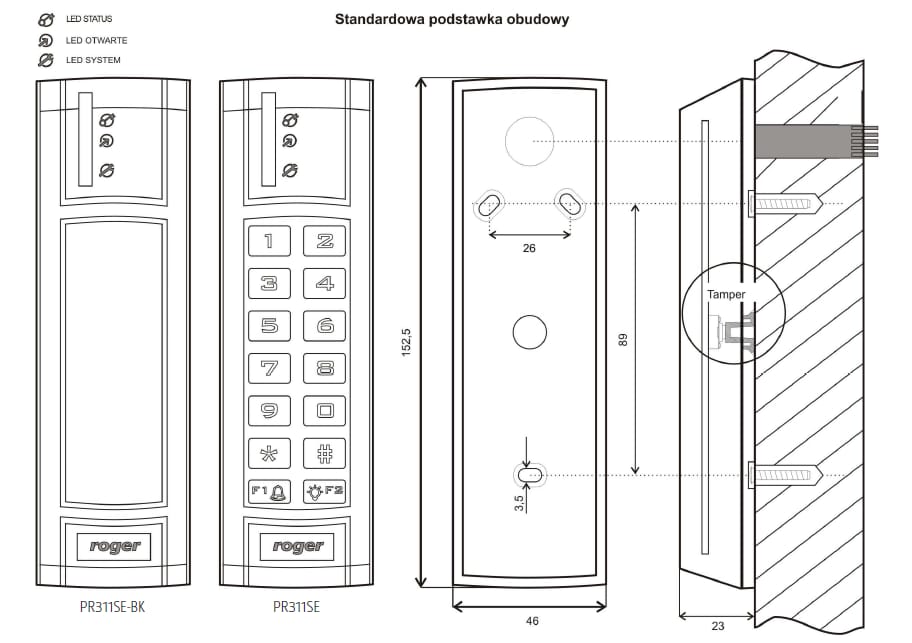

| Dimensions:: | 152.5 x 46 x 23 mm (Standard Enclosure Stand)152.5 x 46 x 35 mm (Thicker Case Stand) |
| Manufacturer / brand:: | ROGER |
| Operating temperature:: | -25 °C ... 40 °C |
| Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
| Power:: | 10 ... 15 VDC |
| Scales:: | 0.17 kg |
| Selected features of the standalone mode:: | 1000 indexed users History of 250,000 events Working with XM-2 I/O Expander (Standalone Full Mode) |
| Selected features:: | Possibility to attach an additional reader (double-sided transition control) 3 programmable NO/NC input lines 2 programmable transistor outputs 1A One programmable relay output 1.5A/30V Door modes (Normal, Locked, Unlocked and Conditionally Unlocked) Any communication bus topology Support for additional guest users defined individually on each controller Integration with the alarm system via I/O lines Modes identification (Card or PIN, Card and PIN, Card only, PIN only) Fast programming (approx. 15 seconds for each controller in the system) Possibility to divide the system into subsystems (max. 250 subsystems) |
| Warranty:: | 3 years |
