External card and key ring reader designed to work in the access control and building automation system RACS 5Standard Unique 125 kHz

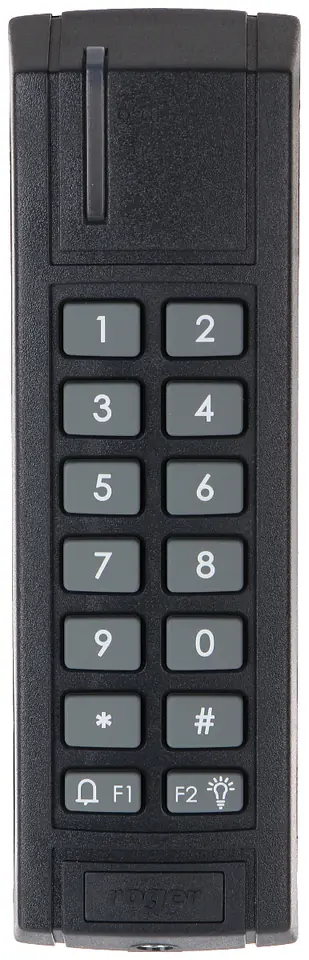

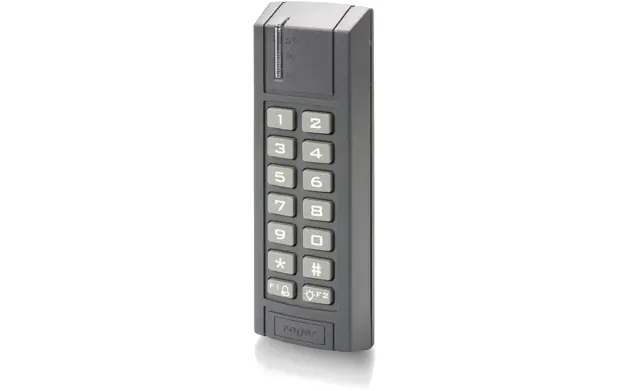

ROGER MCT12E-IO PROXIMITY READER
€97.47
Shipping from warehouse: H7
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ROGER
- Product code:
- MCT12E-IO / 5907608961069
Share this product:
Specification
| Average current consumption:: | ~ 50 mA |
|---|---|
| Card reading range:: | Max. 7 cm |
| Card support:: | Unique EM 125kHz |
| Communication:: | RS-485, RACS 5 (Roger) |
| Cooperation:: | RACS 5 (Roger) |

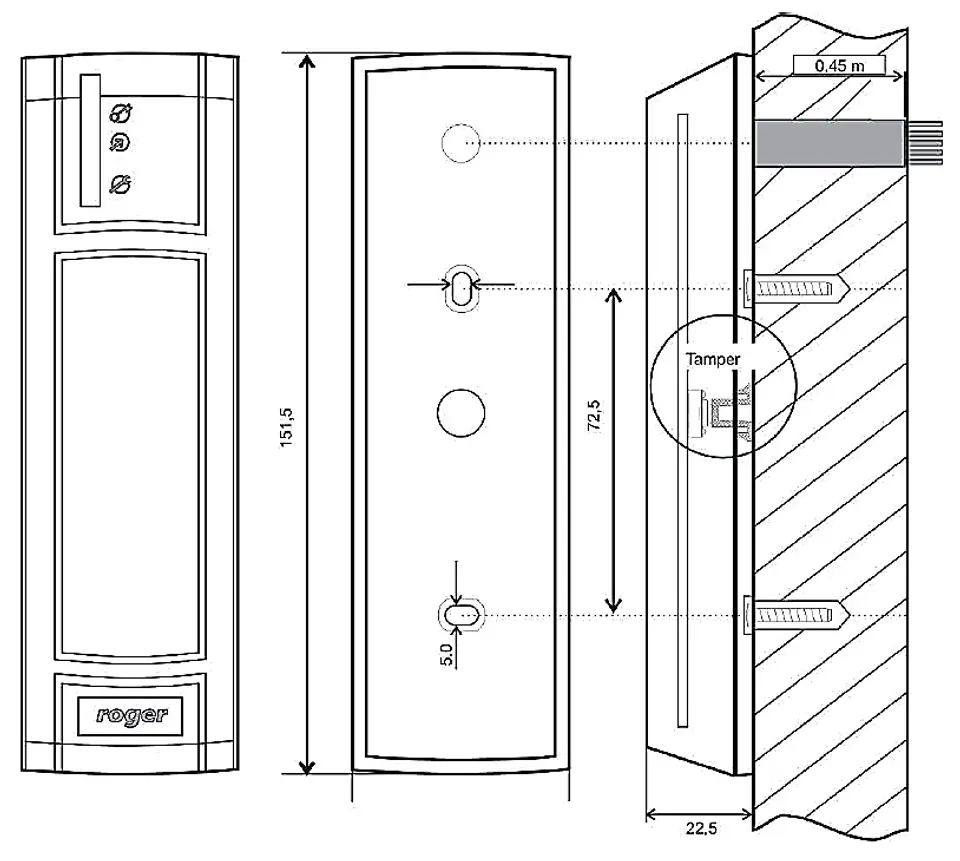

| Dimensions:: | 152 x 46 x 23 mm |
| Manufacturer / brand:: | ROGER |
| Operating temperature:: | -25 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
| Power:: | 10 ... 15 VDC |
| Scales:: | 0.17 kg |
| Sealing:: | IP65 |
| Selected features:: | Tamper protection (detection of detachment from the ground and opening of the housing) LED signaling Sound signal Built-in I/O lines 3 inputs 1 Relay output : REL1 - NO/NC, 30 V AC/DC / 1.5 A Two transistor outputs : IO1, IO2 - Open collector (OC) type, max. 15 VDC / 1 A |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
