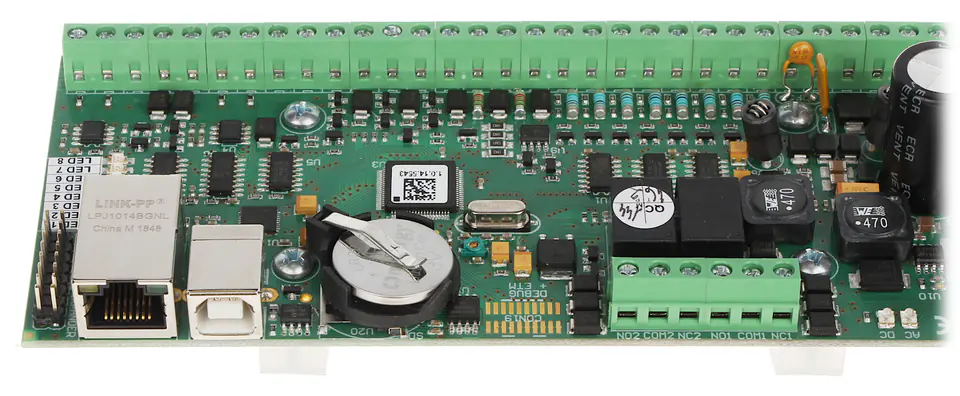

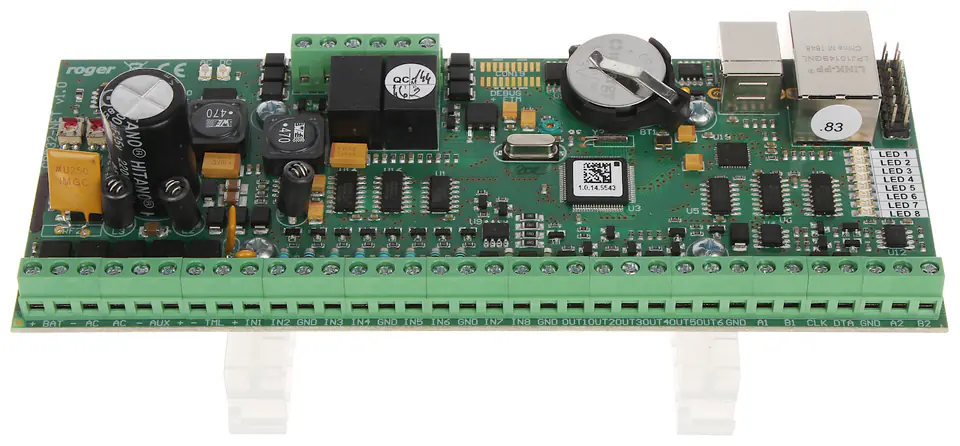

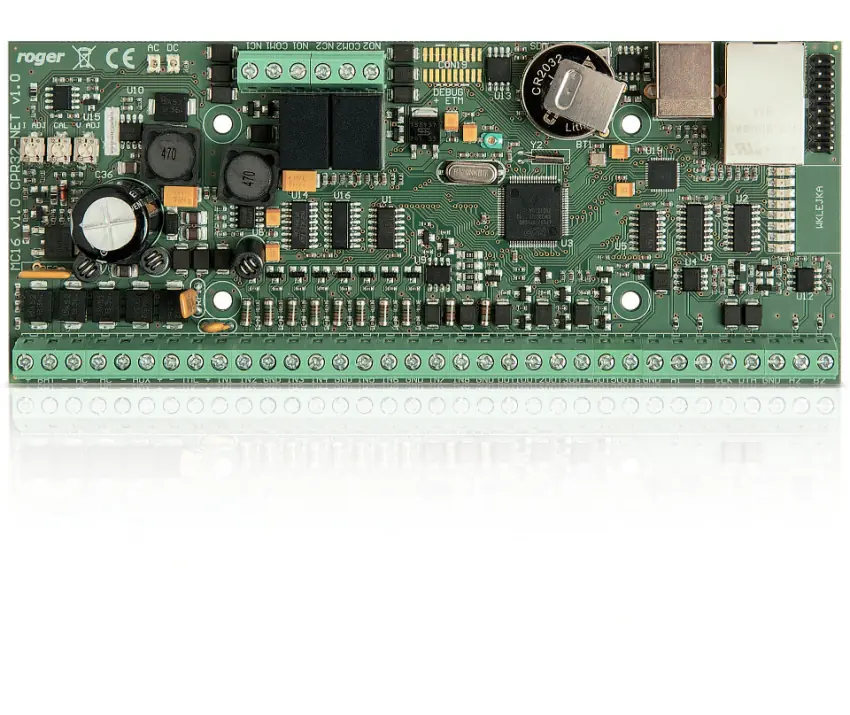

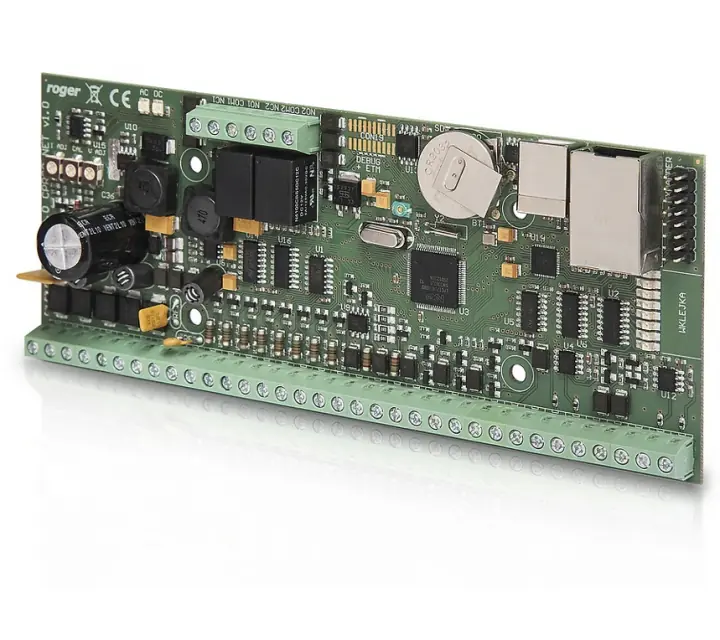

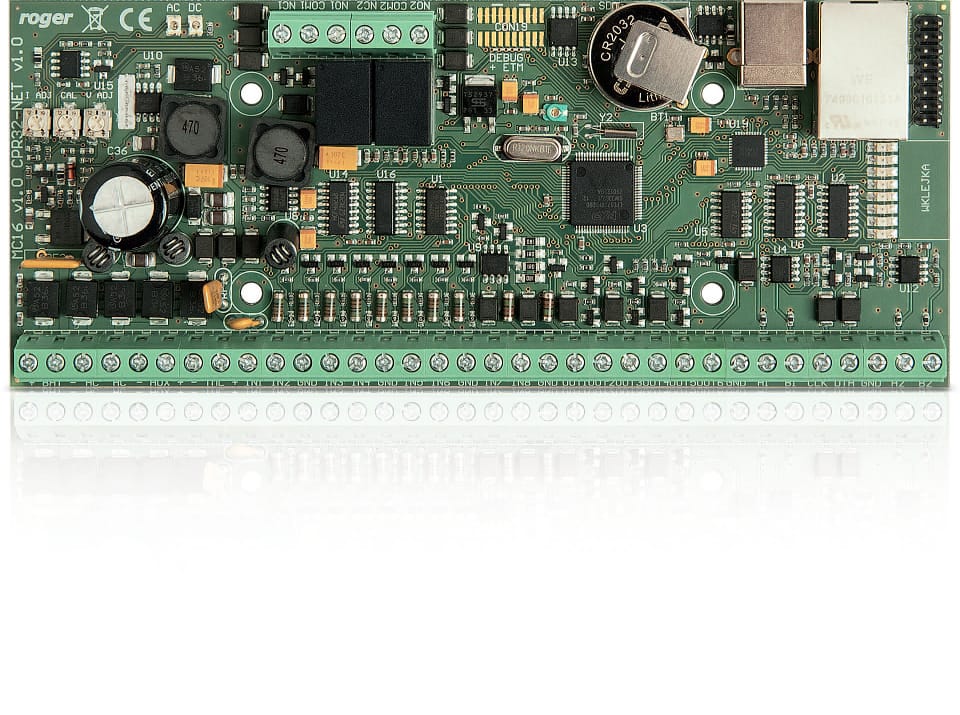

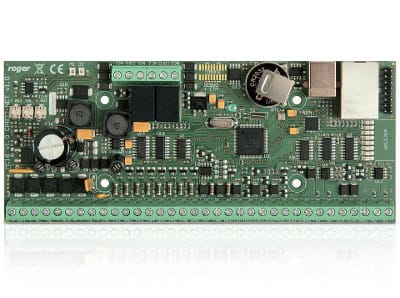

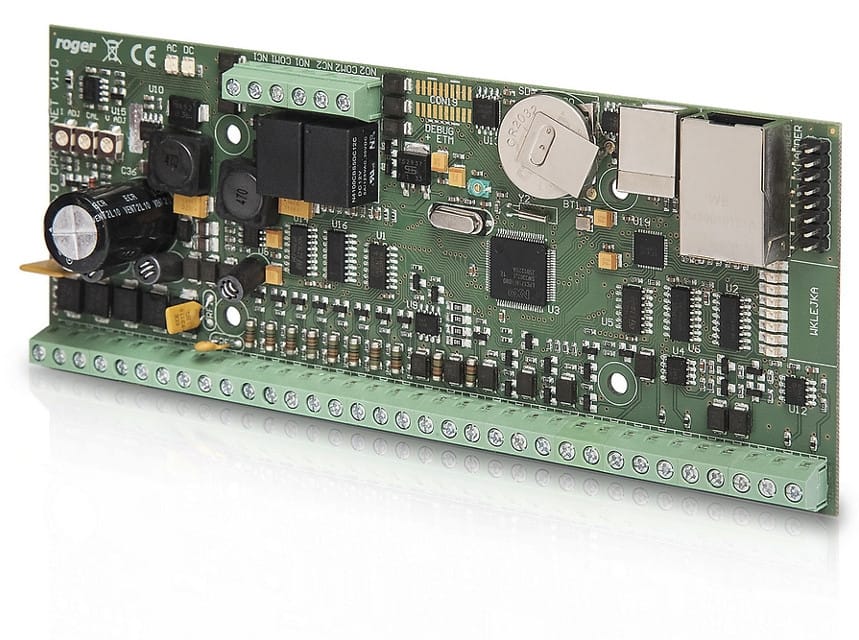

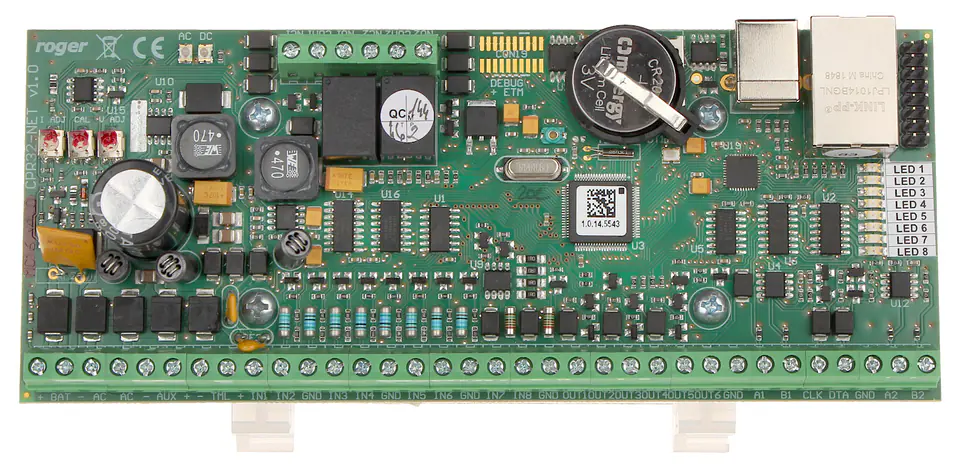

ROGER CPR32-NET-BRD ACCESS CONTROL PANEL

Name: ROGER CPR32-NET-BRD ACCESS CONTROL PANEL
Brand: ROGER
SKU: 516575
Price: 357.27 EUR
Availability: InStock

€357.27

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Thu, Nov 14 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: ROGER
Product code:: CPR32-NET-BRD / 5907608960086

Specification

Communication::	2 x RS-485
Dimensions::	175 x 81 x 50 mm
Event memory::	Recording of events on a micro SD card (not included) Recording of up to 240,000 events from the control panel
Inputs::	8 pcs. - Inputs on the motherboard max. 32
Manufacturer / brand::	ROGER
Operating temperature::	5 °C ... 40 °C
Output load capacity::	Transistor outputs : 1 A / 15 V DC Relay outputs : 1.5 A / 30 V DC
Output::	6 pcs. - Transistor outputs 2 pcs. - Relay outputs NO/NC
Permissible relative humidity::	10 % ... 95 % (non-condensing)
Power::	24 V DC 12 V DC 18 V AC
Scales::	0.15 kg
Selected features::	Possibility to unlock or lock the zone at a specified time or according to the access calendar, Central management of the access control system, Integration with the SATEL INTEGRA alarm system, History of 250,000 events Electrical protection of all inputs and outputs and communication buses Full network support
Warranty::	3 years

The CPR32-NET-BRD access control panel is part of the RACS4 access control system

The device extends the functionality of the access control system with the possibility of managing the system via LAN / WANIn addition, the use of the control panel allows centralized system management, support for a central event buffer, clock and calendar, the ability to connect individual controllers into concurrently retooled alarm zones

The control panel also enables integration with Satel Integra control panels and support for up to 16 Assa Abloy Aperio wireless locks

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
