Rivetter for one-sided closed rivets Taurus 1 GESIPA

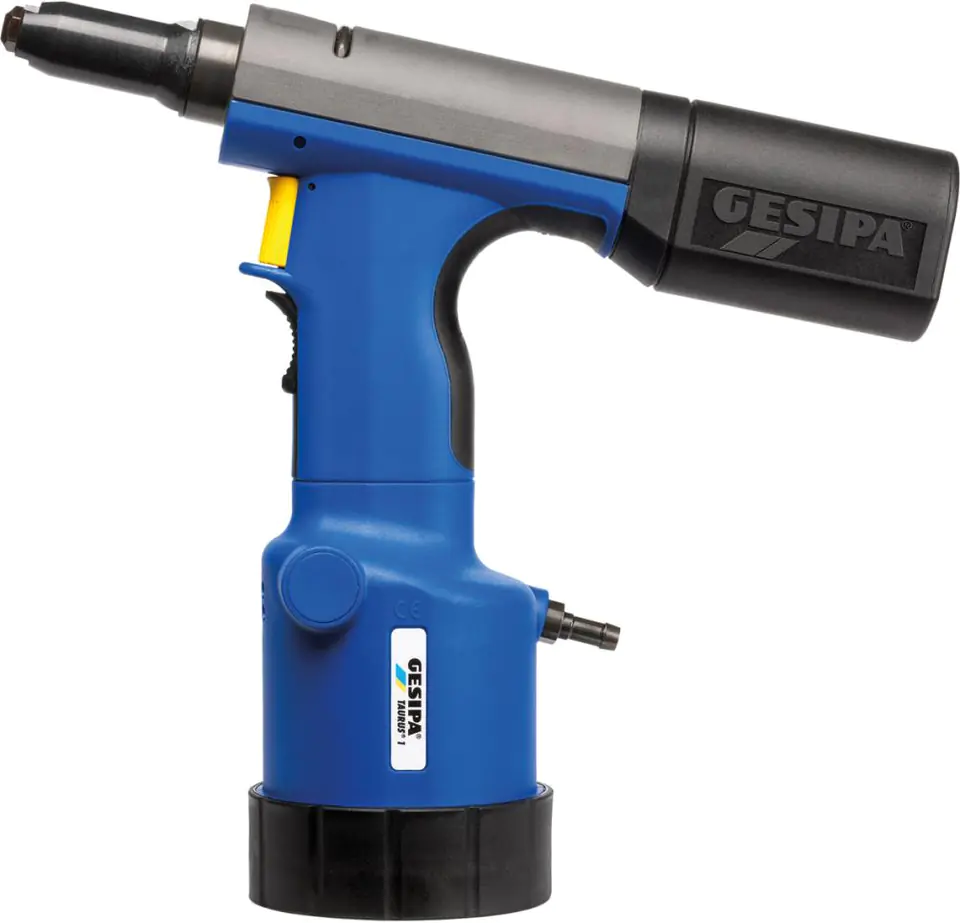

Riveting machine for one-sided closed rivets, pneumatic-hydraulic TAURUS 1
Execution: With integrated system for capturing broken stems. In the base of the device fastening to replaceable sockets. Compressed air is used to deposit rivets and to suction broken pins. The improved gripping jaw system increases tool life many times. Compressed air supply located at the rear prevents accidental damage by the hose. The aspiration of rivets can only be engaged by lifting the instrument. Retractable hanging handle mounted on the head. Working stroke adapted for fast work, with a removable container for broken rivet pins.
Use: For one-sided closed rivets with a diameter of Ø from 2,4 to 3,2 mm made of all materials and with a diameter of Ø up to 4 mm of aluminium/steel (max. shaft diameter Ø 2,5 mm).
Kit Contents: Riveting machine for one-sided closed rivets TAURUS® 1, 3 sockets 17/18, 17/20, 17/22, 2 mounting keys 12/14 and 14/17, bottle of hydraulic oil 100 ml,
Bottle for oil replenishment.
Cap assignment:
Rivet Ø; materials; cap
2,4; Al; 17/18
3,2; Al CAP, Cu CAP; 17/18
3; Al/Cu; 17/20
3 and 3.2; Al, Cu, steel, stainless steel, Stinox, Al/Al, Al PG, PG steel; 17/24
4; Al, Cu, Al CAP, Cu CAP; 17/24
4; steel, Al/Al, Al PG; 17/27
4; stainless steel, Stinox, PG steel; 17/29
4.8 and 5; Al, Al CAP, Cu CAP, Al PG; 17/29
4.8 and 5; steel, Al/Al; 17/32
4.8 and 5; stainless steel, Stinox, PG steel; 17/36
6; Al; 17/36
6; steel; 17/40
6,4; Al; 17/40
6,4; steel, Al/Al; 17/45
8; Al; 17/45
