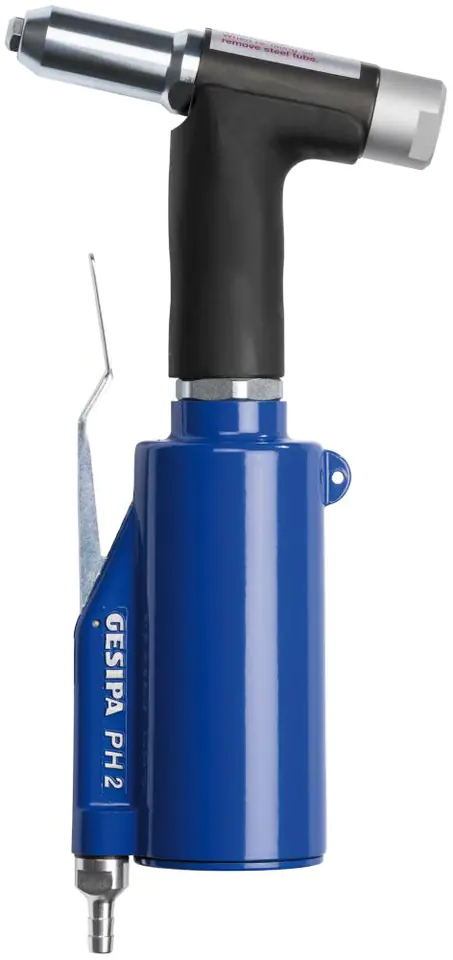

Riveting pneumat.-hydr. for one-sided closed rivets PH 2, stroke 15 mm GESIPA

Riveting machine for one-sided closed rivets PH 2, pneumatic-hydraulic
Execution: 360° hydraulic aluminium head with abrasion-resistant cylindrical surface. Die-cast aluminium pneumatic cylinder, hardened hard-plated steel flask with light weight. Abrasion-resistant compact seals with high efficiency and durability. With quick breather valve to increase efficiency. The favorable position of the center of gravity is conducive to fatigue-free operation, silent pneumatic switch. With a container for broken rivet pins.
Use: For one-sided closed rivets with a diameter of Ø from 3 to 5 mm for all materials and rivets with a diameter of Ø from 2,4 to 3,2 mm with a small chuck module. Not suitable for stainless steel CAP single-sided rivets.
Kit Contents: Riveting machine for one-sided locking rivets PH 2, 5 sockets 16/24, 16/27, 16/29, 16/32, 16/36, set of clamping jaws, 2 mounting keys MSU and MFA.
Cap assignment:
Rivet Ø; materials; cap
2,4; Al; 10/18
3,2; Al CAP, Cu CAP; 10/18
3 and 3.2; Al, Cu, steel, stainless steel, Stinox, Al/Al, Al PG, PG steel; 10/24
4; Al, Cu, Al CAP, Cu CAP; 16/24
4; steel, Al/Al, Al PG; 16/27
4; stainless steel, Stinox, PG steel; 16/29
5 and 4.8; Al, Al CAP, Cu CAP,; 16/29
; Al PG
4.8 and 5; steel, Al/Al; 16/32
4.8 and 5; stainless steel, Stinox, PG steel; 16/36
