Riveting machine zamyk.unilaterally,accumulation. AccuBird GESIPA

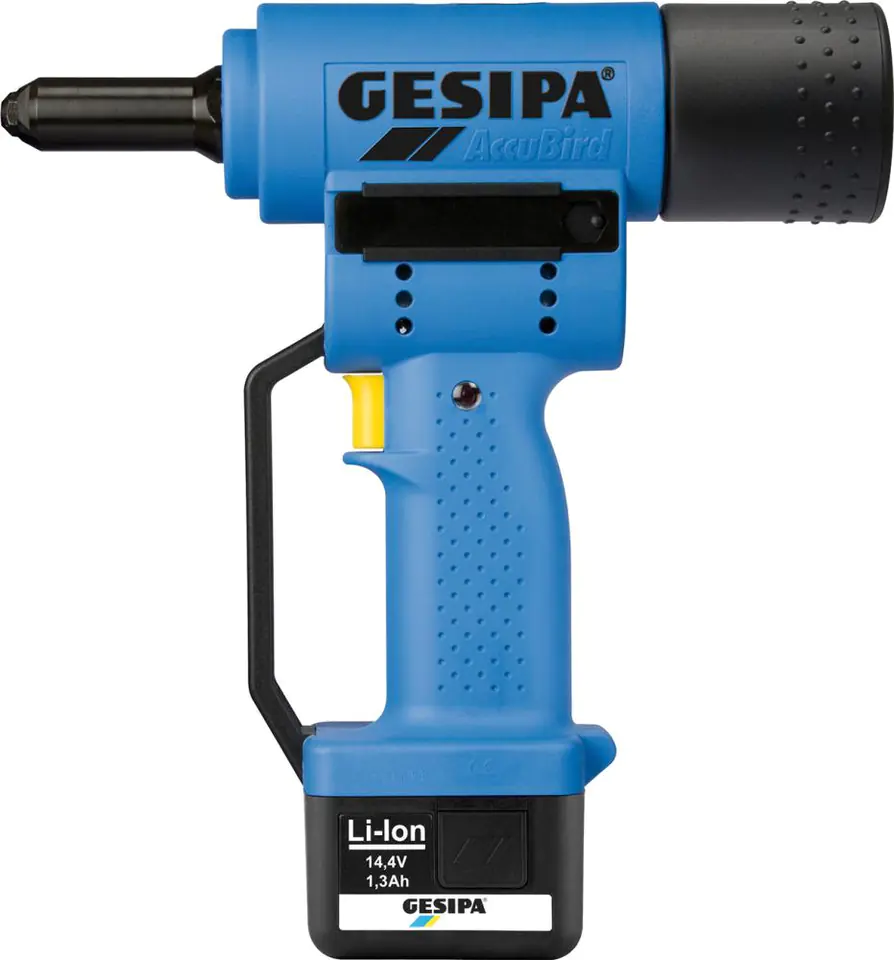

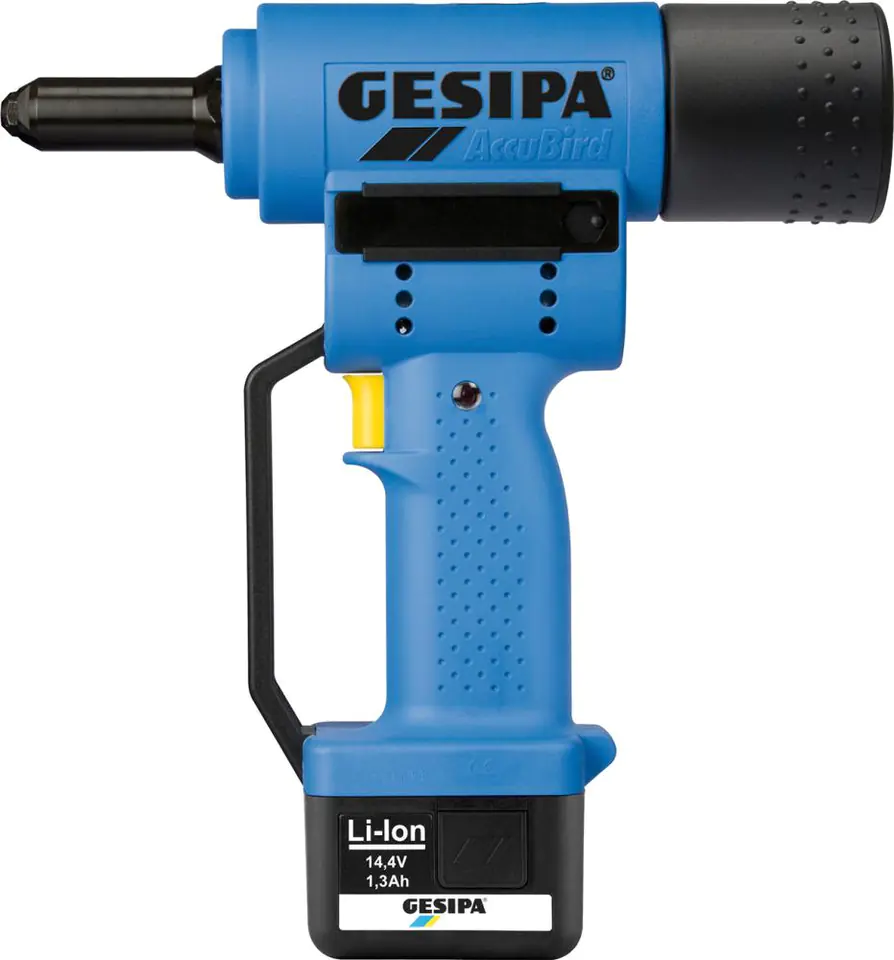

AccuBird Cordless Riveting® Machine
Execution: Compact, impact-resistant housing with uniform front and reverse gripping speeds. Direct setting of the starting position after the riveting process is completed. High operational safety thanks to electrical control. In addition, the device has electronic protection against overheating and overload. Retractable hanging handle mounted on the tool head. In addition, the device has a favorable arrangement of the center of gravity to reduce the expenditure of force during operation, hand protection, removable container for broken rivet pins.
Use: For one-sided closed rivets from Ø 2,4 mm aluminium to Ø 5 mm from all materials and for one-sided closed rivets from aluminium up to Ø 6 mm. BULB-TITE® one-sided closed rivets up to Ø 6.3 mm made of aluminium and steel. Rivets closed on one side to Ø 4.8 mm in all materials.
Kit contents: AccuBird® riveter, 4 sockets 17/24, 17/27, 17/29, 17/32, quick-change battery 14.4 V/1.3 Ah, fast charging charger 14.4 V, mounting key, plastic case.
Tip: For a spare quick-change battery see (Article code 9321 0007 and 9319 0006), for a fast charging charger see (Article code 9322 0006).
Cap assignment:
Ø rivet Rivet Materials Number of pieces / battery charging Cap
2.4 Aluminium 1500 17/18
3.2 Al CAP, Cu CAP 1000 17/18
3 and 3,2 Aluminium 800 17/24
3 and 3,2 Steel 800 17/24
3 and 3,2 Stainless steel 800 17/24
4 Aluminium 800 17/24
4 Steel 700 17/27
4 Stainless steel 640 17/29
4,8 and 5 Aluminium 550 17/29
4,8 and 5 Steel 420 17/32
4,8 and 5 Stainless steel 320 17/36
