Riveting machine dzwign. HN 2, 10 mm stroke GESIPA

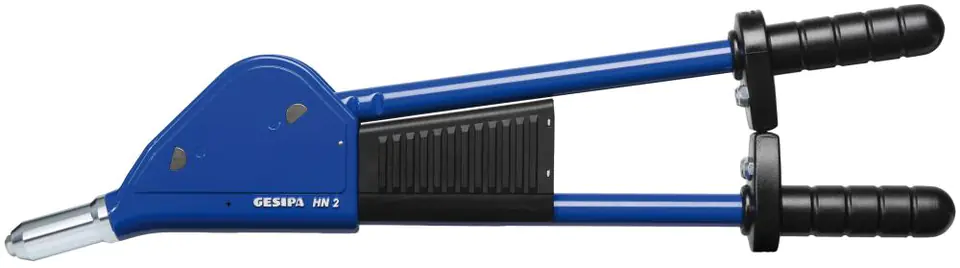

Lever riveter HN 2
Execution: Made of high-quality die-cast aluminum, the design protects against dirt. The gear segment gearbox with favorable lever arrangement reduces the use of force during operation and absorbs rivet breakage. Repeating actions on the workpiece does not cause problems. The articulating pin is securely seated without the possibility of twisting – with internal axial protection. With a container for broken rivet pins.
Use: For one-sided closed rivets with a diameter of Ø from 3 to 6.4 mm, of all materials, except PolyGrip® one-sided closed rivets with a diameter of Ø 6.4 mm stainless steel and one-sided closed rivets G-Bulb.
Kit Contents: Hand riveter HN 2, 5 sockets 16/29, 16/32, 16/36, 16/40, 16/45.
Cap assignment:
Rivet Ø; materials; cap
3 and 3.2; Al, Cu, steel, stainless steel, Stinox, Al/Al, Al PG, PG steel; 16/24
4; Al, Cu; 16/24
4; steel, Al CAP, Cu CAP, Al/Al, Al PG; 16/27
4; stainless steel, Stinox, PG steel; 16/29
4,8; Al CAP, Cu CAP; 16/29
4.8 and 5; Al, Al PG; 16/29
4.8 and 5; steel, Al/Al; 16/32
4.8 and 5; stainless steel, Stinox, PG steel; 16/36
6; Al; 16/36
6; steel; 16/40
6,4; Al, Al PG; 16/40
6,4; steel, Al/Al; 16/45
