Riveting machine 1-str.zamyk.acumul. AccuBirdPRO L-BOXX GESIPA

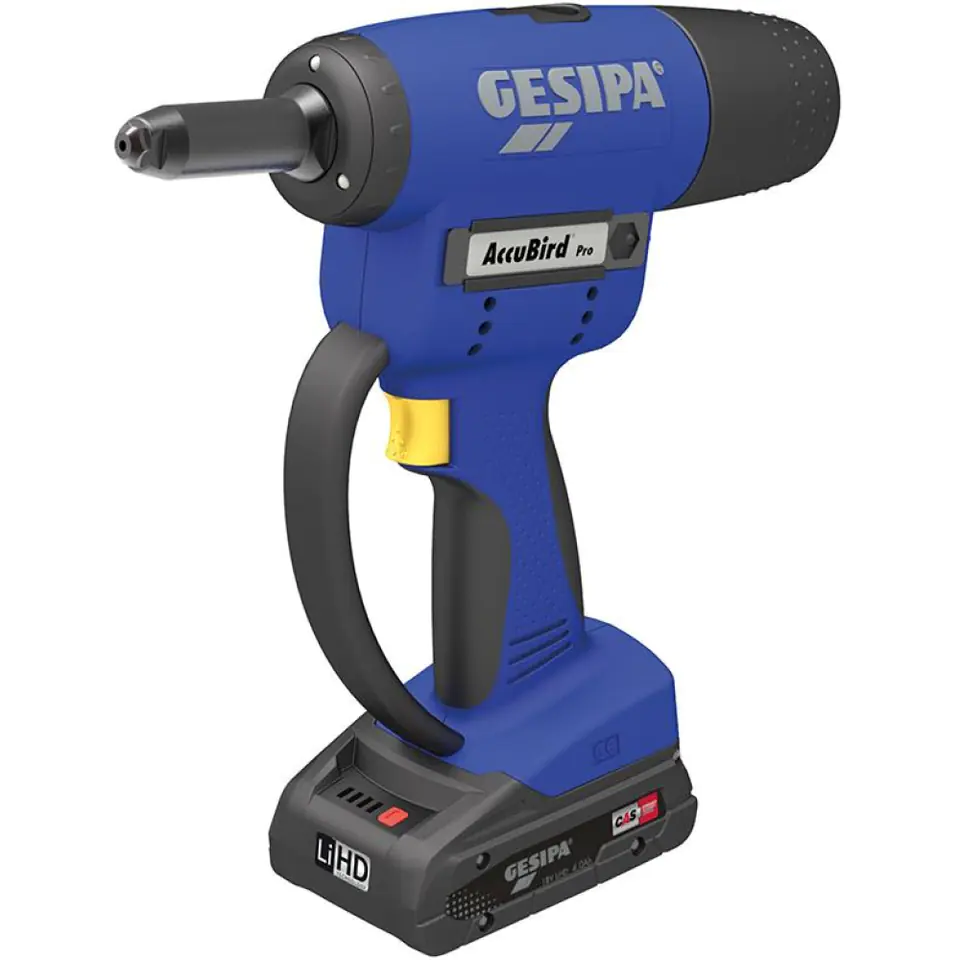

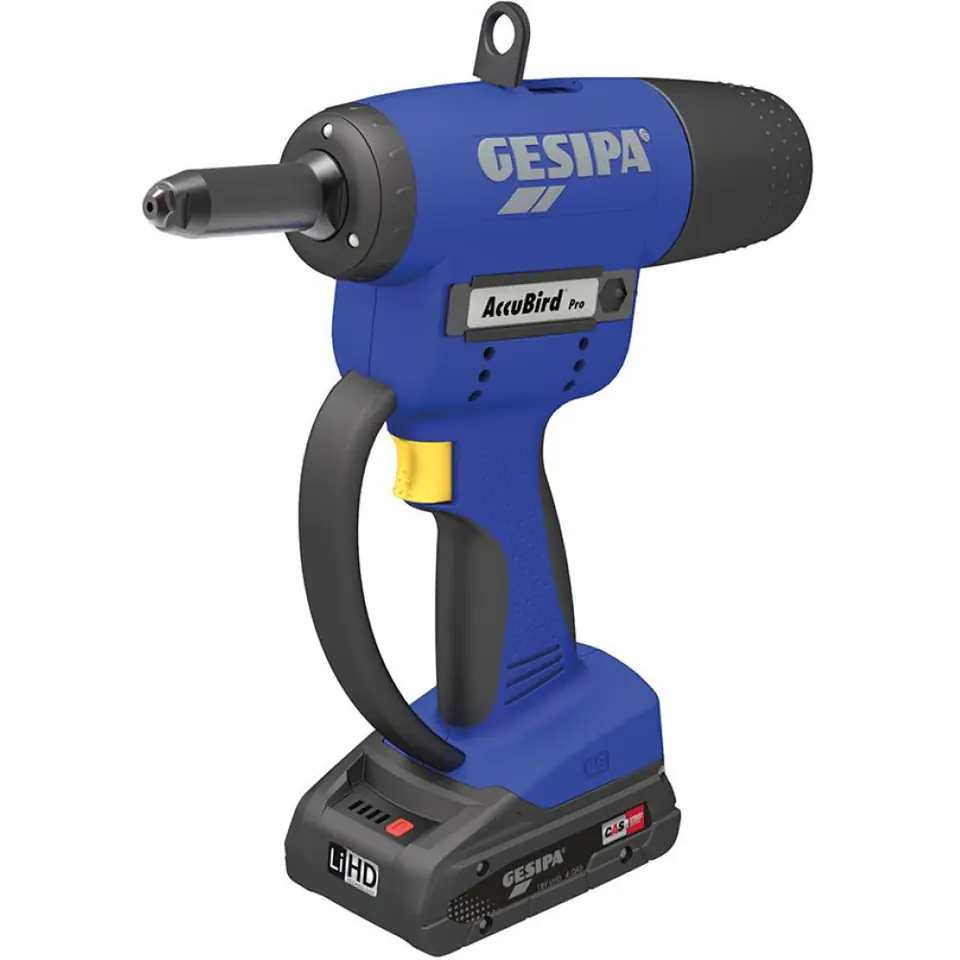

AccuBird® Pro Battery Riveting Tool

Design: compact, impact-resistant housing, uniform infeed and retracting speeds of the gripping mechanism. Up to 4 times faster than comparable riveters. Direct setting of the starting position after the riveting process is completed. High operational safety thanks to electrical control. In addition, the device has electronic protection against overheating and overload. Retractable hanging handle mounted on the tool head. In addition, the device has a favorable arrangement of the center of gravity reducing the force needed during work, hand protection, with a removable container for collecting the stems of used rivets.

Application: for one-sided closed rivets from Ø 2.4 mm from aluminum to Ø 5 mm from all materials and for one-sided closed rivets from aluminum up to Ø 6 mm. BULB-TITE® one-sided closed rivets up to Ø 4 mm and 5.2 mm made of aluminium and steel. Rivets closed on one side to Ø 4.8 mm in all materials.

Scope of delivery: AccuBird® Pro riveting machine, 18.0 V/2.0 Ah quick-change battery, fast charging charger 12.0 V to 36.0 V, 7 sockets 17/20, 17/24, 17/27, 17/29, 17/32, 17/36, 17/40, pressure cap 5 mm, mounting key, L-Boxx box.

Socket assignment:
Ø rivet materials, pcs./battery charging cap
,4 aluminum 1500 17/18
,2 Aluminium CAP, Copper CAP 1000 17/18
and 3.2 Aluminium 800 17/24
and 3.2 steel 800 17/24
and 3.2 stainless steel 800 17/24
Aluminium 800 17/24
steel 700 17/27
Stainless steel 640 17/29
,8 and 5 aluminum 550 17/29
,8 and 5 steel 420 17/32
,8 and 5 stainless steel 320 17/36
