Rhombic nut for T-drains DIN510 M16x18mm AMF

€8.80

Shipping from warehouse: ⁨B6⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: AMF
Product code:: 80283 / 4020772080280

Specification

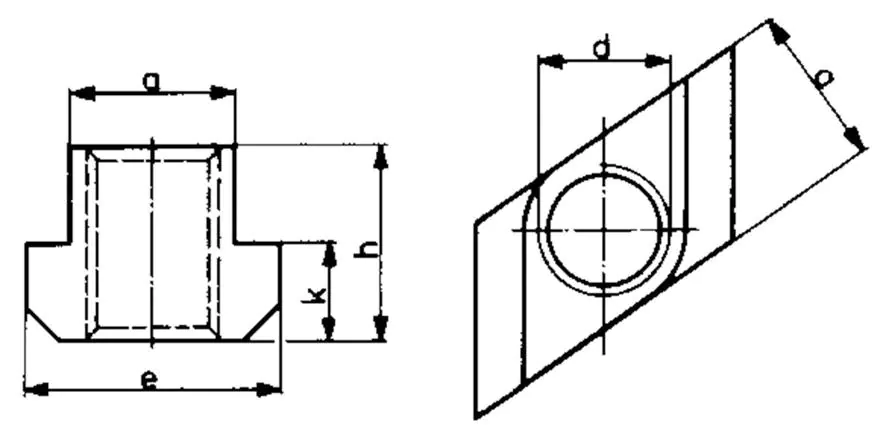

D x t-key:	M16 x 18
Dimension a:	17.7 mm
Dimension e:	28 mm
Dimension h:	20 mm
Dimension k:	10 mm
Strength class:	8

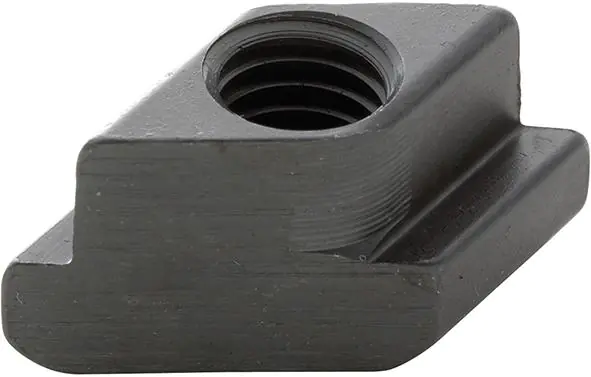

Rhombic nut for T-drains

Design: with internal thread, heat enhanced.
Application: thanks to the special design, the nut can be inserted from the top, if it cannot be done from the side.
Note: Due to the reduced contact area, the load capacity of the rhombic nut is lower than that of comparable standard T-nuts DIN 508.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
