Rhombic screw for T-drains
Made of: forged, milled T-head, rolled thread.
Material: heat enhanced to strength class 8.8.

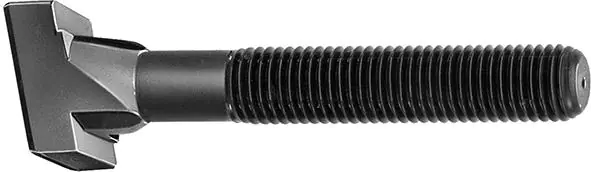

Rhombic bolt M16x18x63mm AMF
This product is not available
- Availability:
- expected delivery
- Brand:
- AMF
- Product code:
- 87353 / 4020772087357
Share this product:

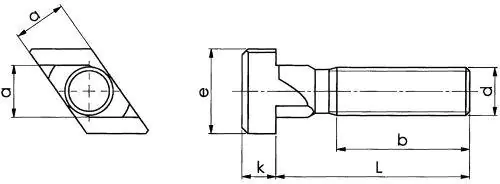

Specification
| Groove width: | 18 mm |
|---|---|
| Head size e: | 28 mm |
| Head thickness k: | 10 mm |
| Thread diameter x length: | M16 x 63 mm |
| Thread length b: | 45 mm |
| Width a: | 17.7 mm |
