Rhombic screw for T-drains
Made of: forged, milled T-head, rolled thread.
Material: heat enhanced to strength class 8.8.

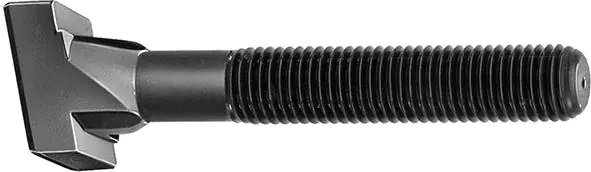

Rhombic bolt M16x18x160mm AMF
€36.79
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 87395 / 4020772087395
Share this product:

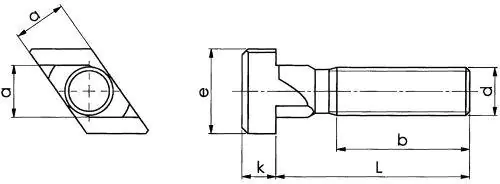

Specification
| Groove width: | 18 mm |
|---|---|
| Head size e: | 28 mm |
| Head thickness k: | 10 mm |
| Thread diameter x length: | M16 x 160 mm |
| Thread length b: | 100 mm |
| Width a: | 17.7 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
