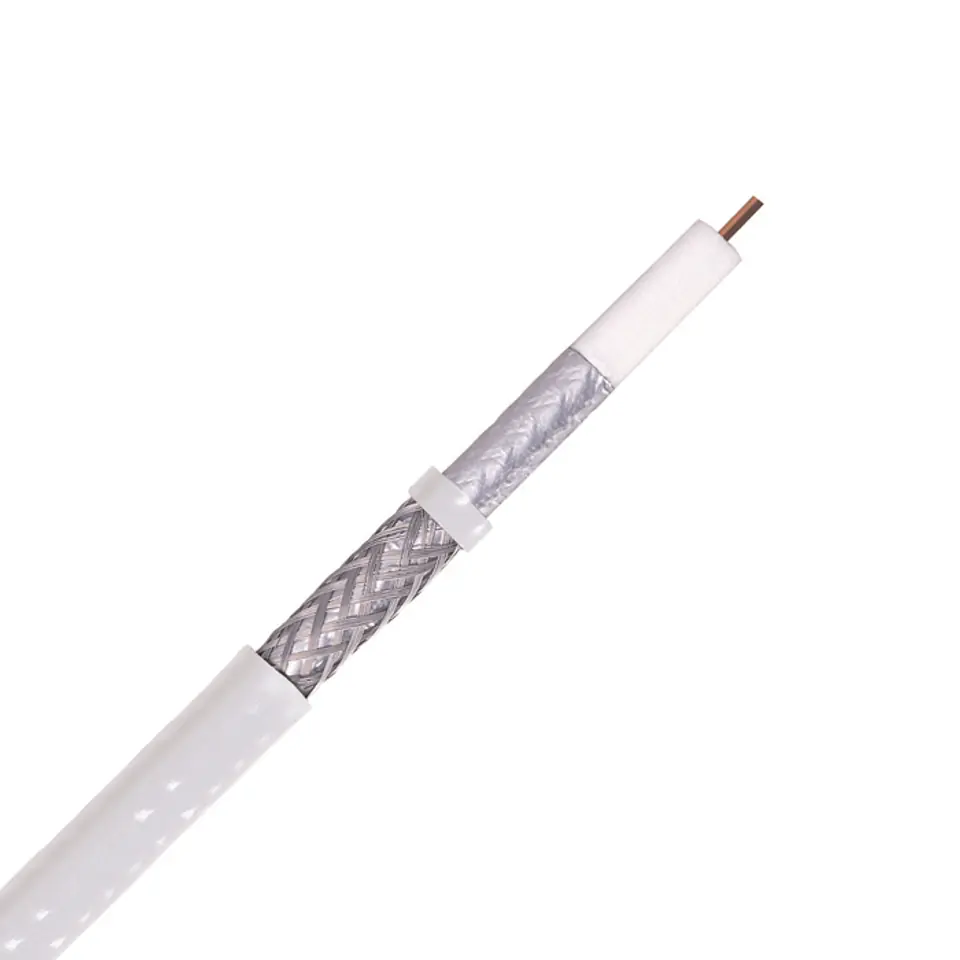

RG6 Spacetronik HOKA 4K 102 CU Dualshield cable is designed for terrestrial, satellite and cable antenna installations as well as SMATV installations. The cable is glued, which increases its strength and signal transmission quality.

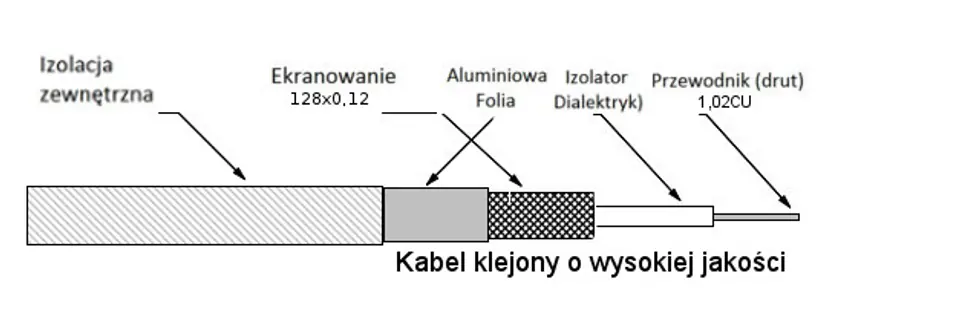

| Specifications: - Core diameter (mm): 1.02 CU - Foil : AL/PET Dualshield - Outer shell: PVC White, 7.05 mm - Braid: 128x 0,12mm - Coverage: 80% - Shielding: ≥110 dB - Impedance 75 Ohm - Class A+ compliant - Complies with ROHS, CE - Color: White - Marked every one meter | DAMPING PARAMETERS 5.1 dB/100 MHz 7.1 dB/200 MHz 8.6 dB/300 MHz 12.1 dB/500 MHz 15.5 dB/800 MHz 18.1 dB/1000 MHz 21.6 dB/1350 MHz 24.6 dB/1750MHz 28.4 dB/2050MHz |
Cable available in meter sections

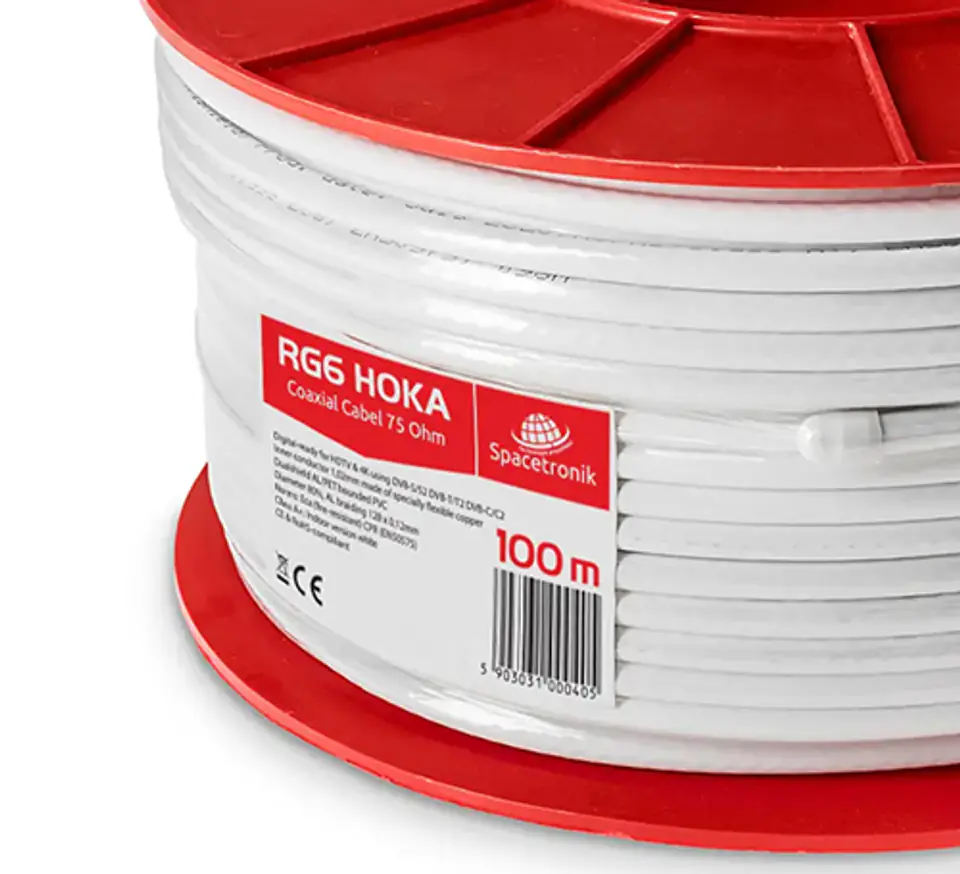

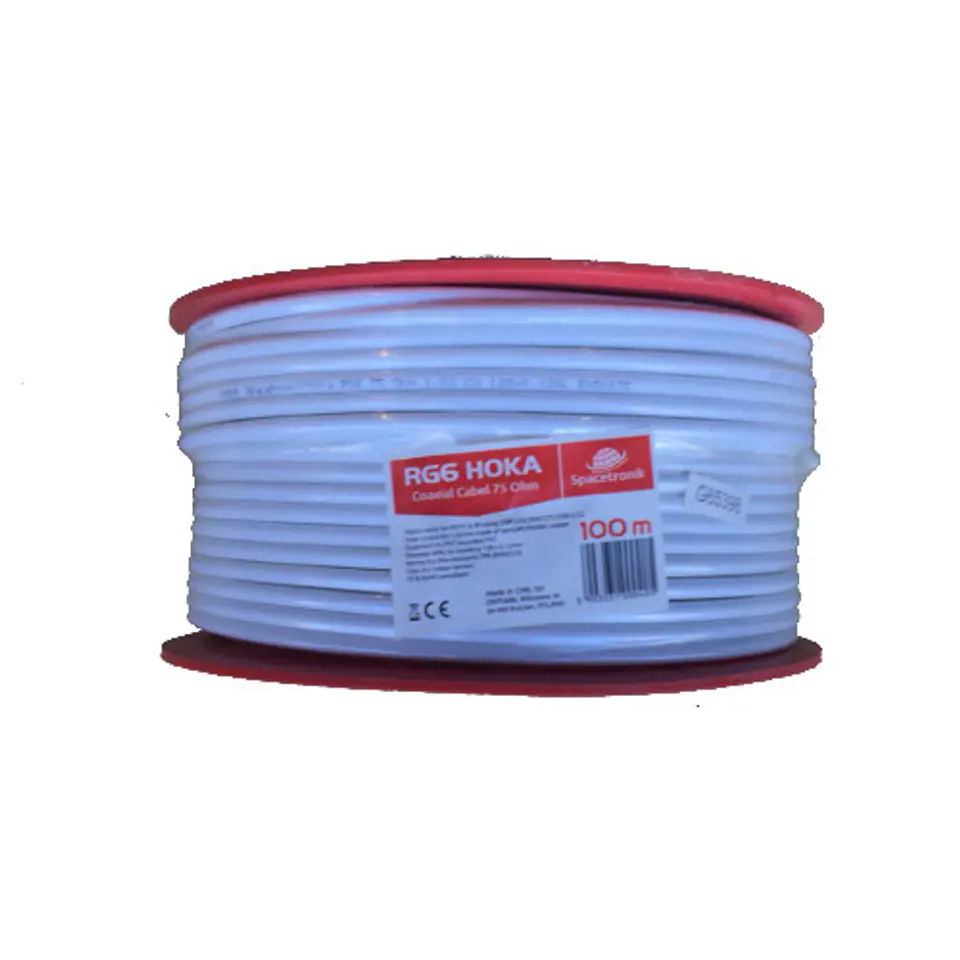

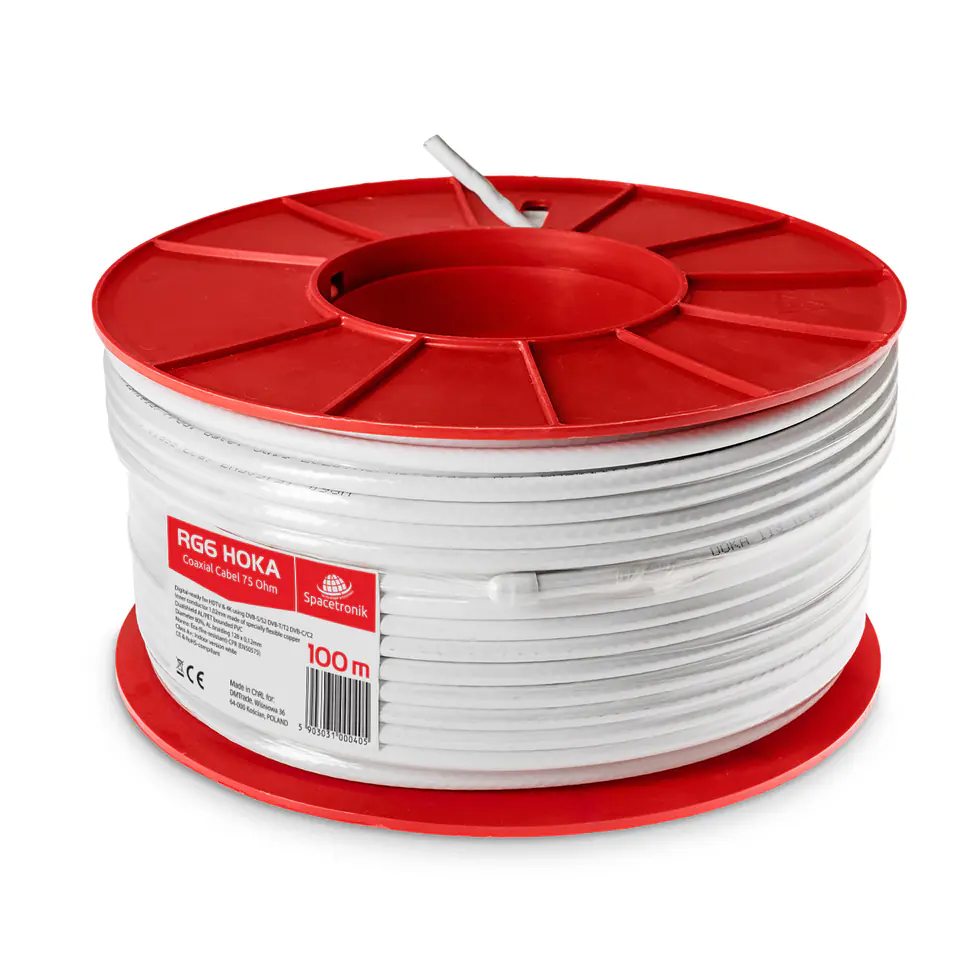

Plastic rolls 100m / pulbox 250m / wooden rolls 500m
Bulk packaging up to 30kg. 6x100m / 2x250m / 1x500m

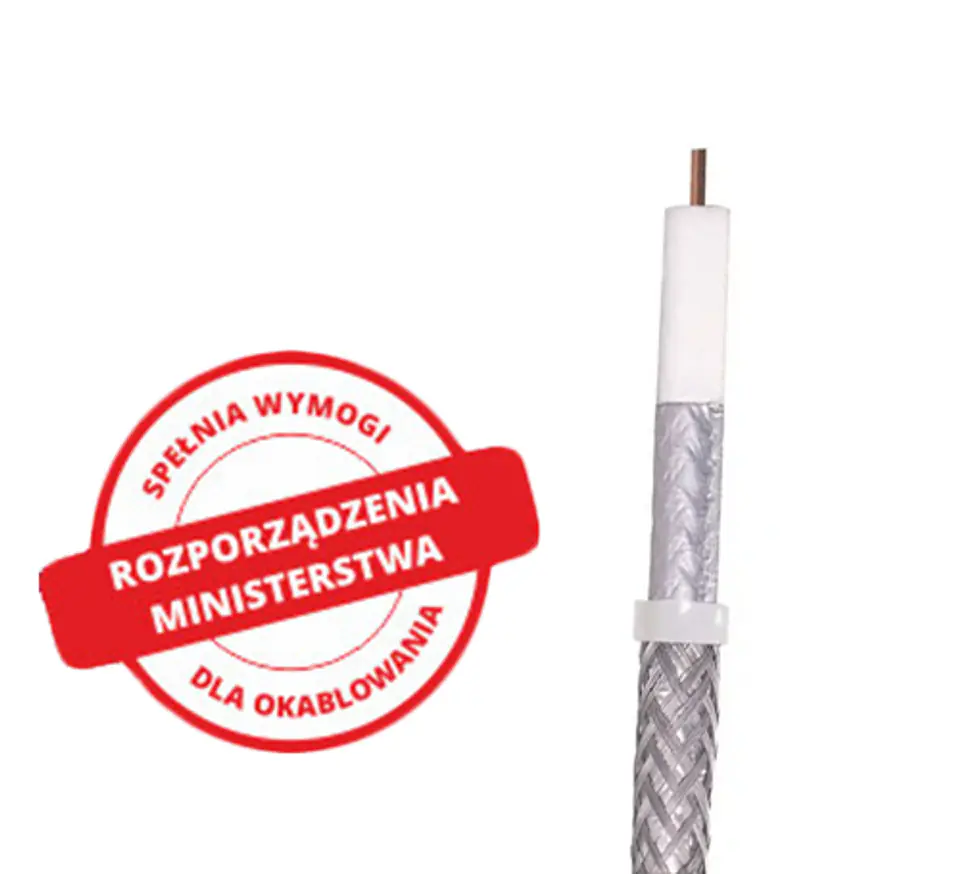

The cable complies with the Regulation of the Minister of Transport, Construction and Maritime Economy of 6 November 2012 on the technical conditions to be met by buildings and their location in force in Poland , m.in specifies the requirements to be met by coaxial cabling of TV/SAT installations of a collective residential building. This is described in detail in §192f (6) (1)
| Download the Declaration of Conformity >>HERE<< |
