Modern 50Ω low-loss cable for operation up to 6 GHzThe jacket of the cable is made in PE technology (UV resistance), which allows it to be used outdoors

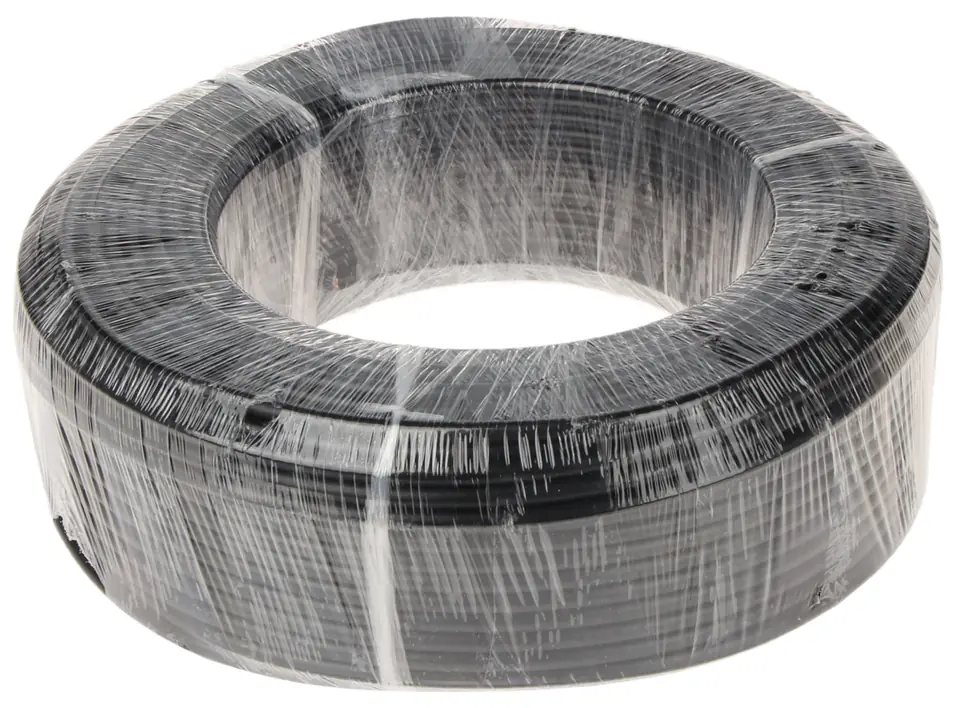

RF-7 50 Ω COAXIAL CABLE
€2.92
Shipping from warehouse: D4
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- RF-7 / 5905309211322
Share this product:
Specification

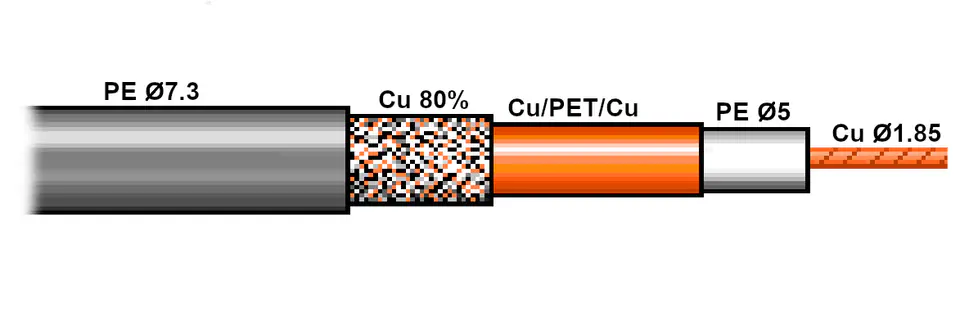

| Braid: | 80 % Cu |
|---|---|
| Cable attenuation over a distance of 100m: | 2 dB @ 10 MHz6.4 dB @ 100 MHz9.1 dB @ 200 MHz14.1 dB @ 500 MHz20.9 dB @ 800 MHz25.9 dB @ 1 GHz31 dB @ 1.5 GHz35 dB @ 2 GHz39 dB @ 2.5 GHz |
| Dielectric: | Ø 5 mm - PE foamed |
| Impedance: | 50 Ω |
| In ": | 100 m . Price for 1m when buying the whole roll |
| Internal vein: | Ø 1.85 mm Cu ± 0.05 mm - Cu rope |
| Maximum transmitted power: | 3.27 kW @ 10 MHz1.025 kW @ 100 MHz0.693 kW @ 200 MHz0.452 kW @ 500 MHz0.310 kW @ 800 MHz0.253 kW @ 1 GHz0.219 kW @ 1.5 GHz0.195 kW @ 2 GHz0.175 kW @ 2.5 GHz |
| Outer shell: | Ø 7.3 mm ± 0.2 mm PE - Black |
| Screen: | Double-sided film - Cu/PET/Cu |
| Selected features: | low attenuation excellent fit high screening efficiency can be used in WLAN 2.4GHz and 5GHz installations Operating temperature: -30 °C ... 70 °C |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
