Reversing parking sensors in license plate frame 3 sensors with buzzer

Reversing parking sensors integrated into the ATS 069 license plate frame with 3 sensors and a buzzer

The system is equipped with a buzzer, which emits a repetitive signal with increasing frequency as it approaches an obstacle, allowing for auditory control of the vehicle.
The sensors turn on automatically when reverse gear is engaged.
Precise measurement of the distance from an obstacle in the range of 1.5m -- 0.1m

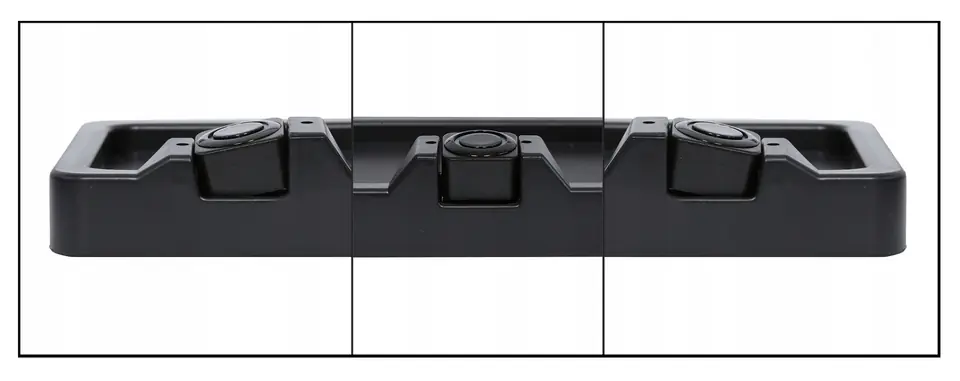

The adjustable angle of measurement of the sensors allows the frame to be mounted also in unusual recesses for the license plate
Easy installation without drilling holes in the bumper as with conventional sensors
The sensors are calibrated to precisely detect even the smallest obstacles, such as parking bollards, city barriers, high curbs, etc.
IP68 weather resistance



• Supply voltage: 12V DC
• Operating voltage range: 9V - 16V DC
• Current consumption range: 20mA - 200mA
• Power consumption: <4W
• Measuring range: 0.1 - 1.5 m
• Operating frequency: 40 kHz
• Operating temperature range: -30°C to +80°C
• IP68 - waterproof and protected against dust, sand and dust
• Sensor cable length: 2.4 m
• Power cord length: 70 cm
•Black
• housing made of durable plastic
• dimensions: width 550mm, height 140mm, depth 22mm
• weight approx. 300g

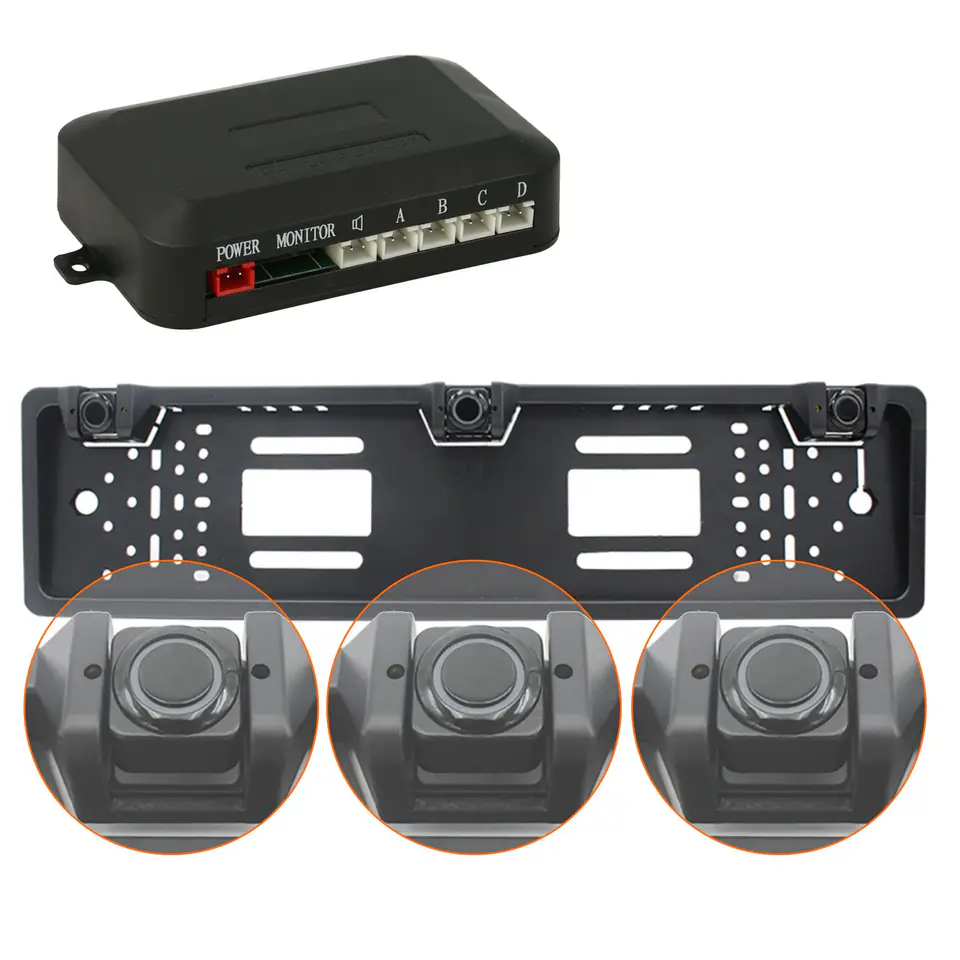

included: registration frame with 3 sensors, Buzzer - sound siren, control unit, wiring, kit connection instructions, 12-month warranty, receipt or VAT invoice
