Specifications:
Article: P003004IP20
Max. cross-section of connected wires, mm2: 1... 25
Mounting: On standard 35 mm DIN rail
Ambient temperature, °?: -5...+40
Rated operating voltage EU, V: ?? 230
Rated frequency, Hz: 50
Number of poles: 2
Contact terminal tightening torque, Nm: 3
Operating current, mA: 30
Nominal breaking capacity Inc, kA: 6
Nominal current In, ?: 25
Characteristics: Electromechanical
Designed to protect people in the event of direct or indirect contact with open conductive parts of electrical equipment connected to the appropriate earthing device of the electrical network of buildings.
**

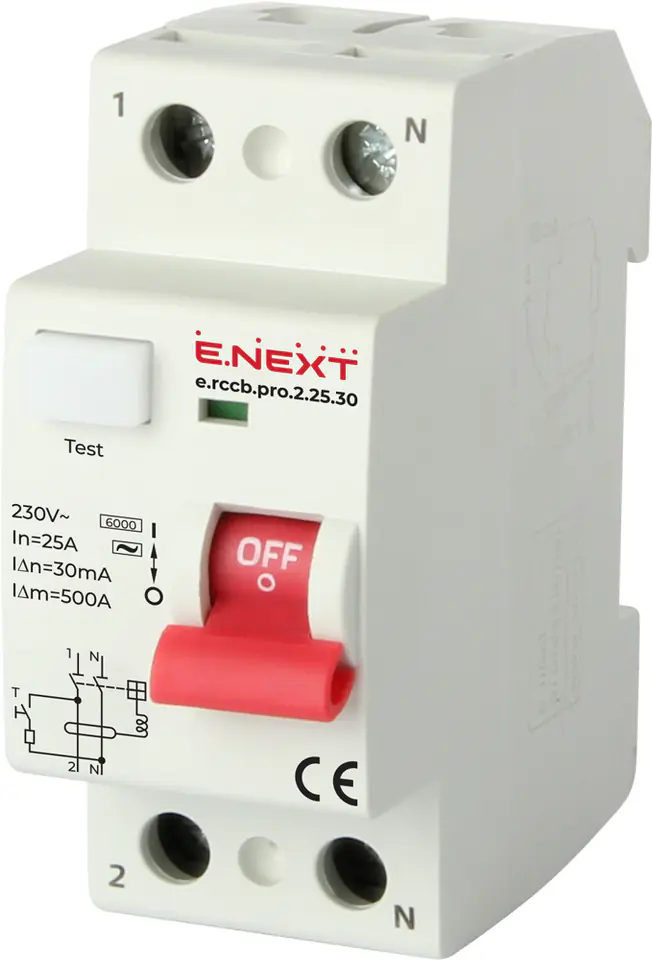

Illustrative photo
RESIDUAL CURRENT CIRCUIT BREAKER RCCB.PRO 2P 25A 30MA
€20.78
Shipping from warehouse: U1
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ENEXT
- Product code:
- 3800158201512
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
