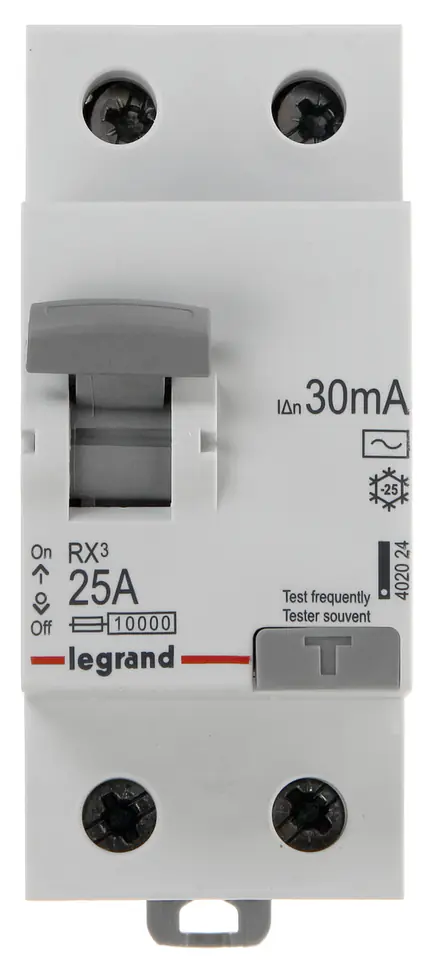

Residual current circuit breaker 2P 25A 0,03A type AC P302 RX3 402024
€31.83
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- LE-402024 / 3414971740358
Share this product:
Specification
| Built-in depth [mm]: | 44 |
|---|---|
| Current surge resistance [ka]: | 0.2500 |
| Degree of protection (ip): | IP2X |
| Enclosure dimension (according to din 43880): | 2 |
| Mounting method: | DIN rail |
| Number of poles: | 2 |
| Possibility of additional equipment: | Yes |
| Rated current [a]: | 25 |
| Rated differential current [a]: | 0.0300 |
| Rated voltage [v]: | 230 |
| Selective protection: | No |
| Sensitivity: | AC |
| Short-delay triggering: | No |
| Width expressed by the number of modules: | 2 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
