It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

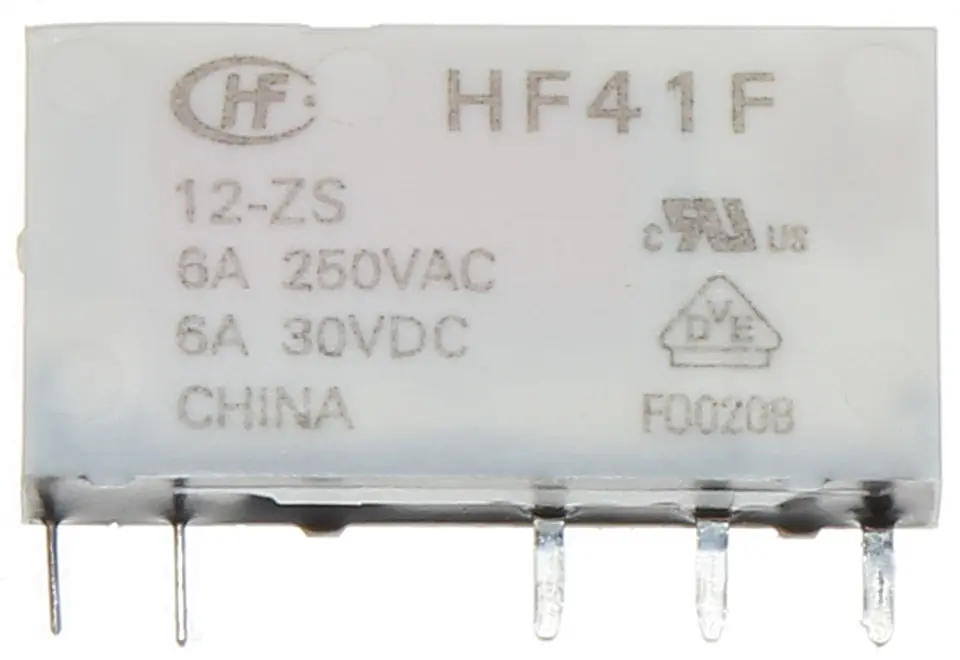

RELAY P-HF41F-012-ZS
€3.61
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- P-HF41F-012-ZS / 5902887033834
Share this product:
Specification
| -40 °c ... 80 °c: | Operating temperature: |
|---|---|
| 0.005 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 x no/nc: | Egress: |
| 12 volts dc: | Power: |
| 14.2 ma @ 12 vdc: | Current consumption: |
| 2 years: | Warranty: |

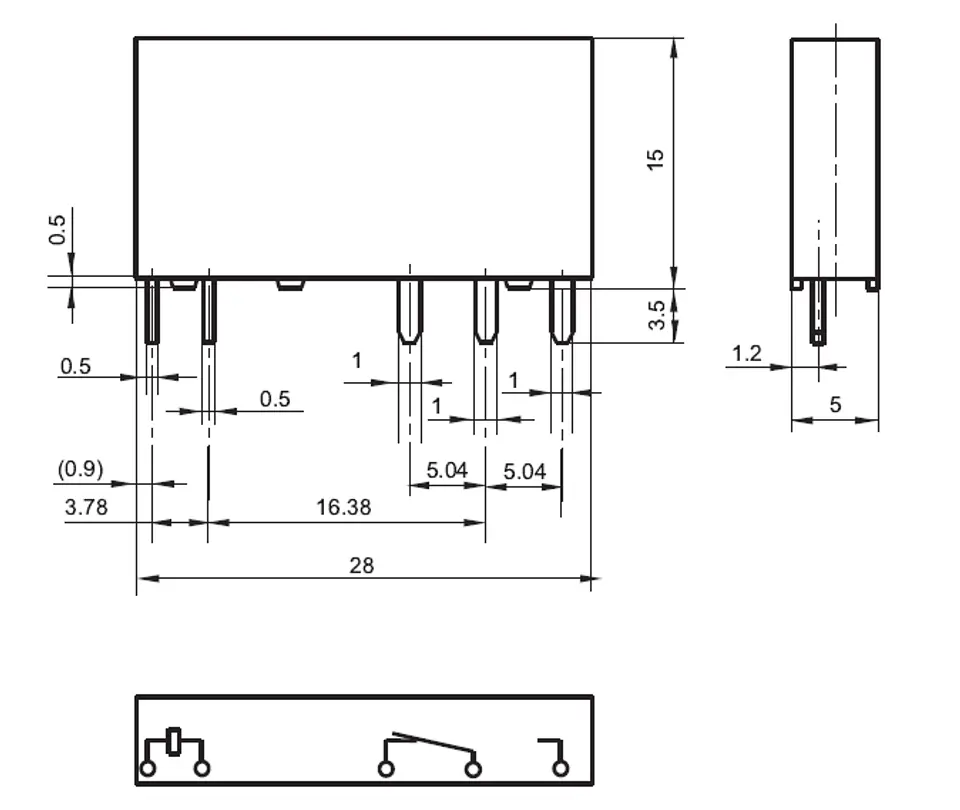

| 28 x 15 x 5 mm: | Dimensions: |
| 6 a (max), 30 v dc / 250 v ac (max): | Contact capacity: |
| Mounting - pcb, socket contact configuration - spdt ip67: | Selected features: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
