It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

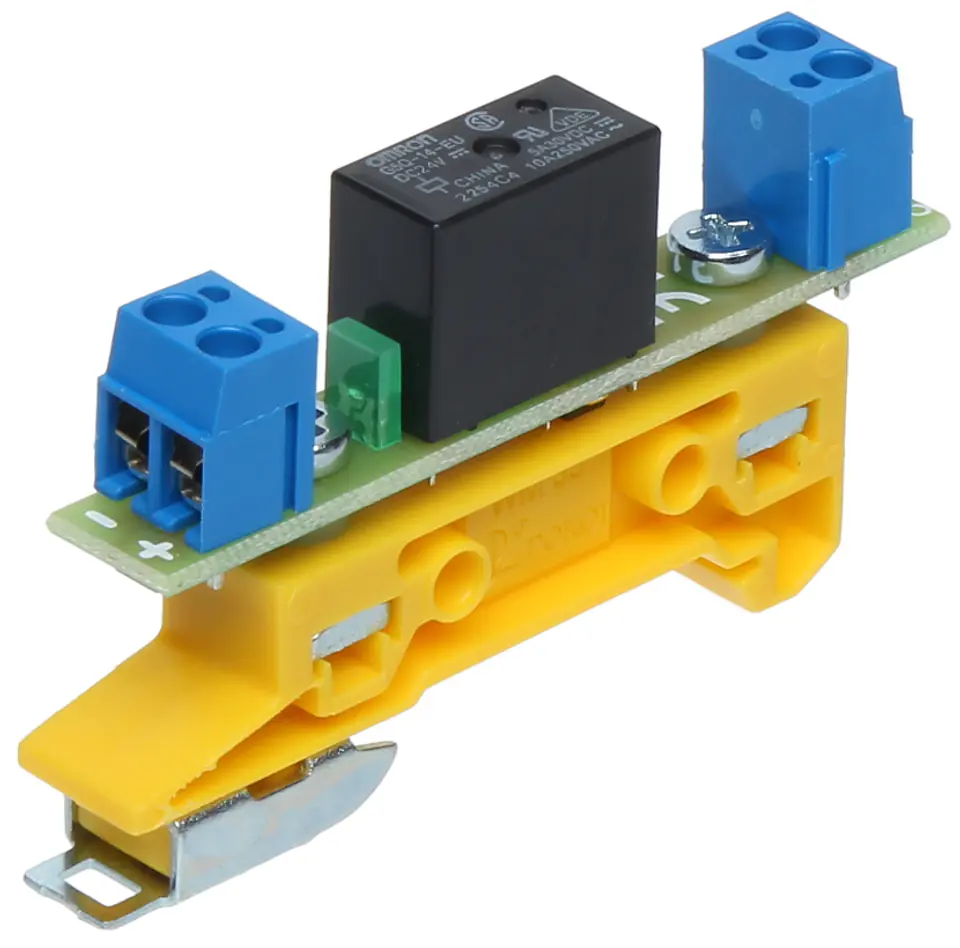

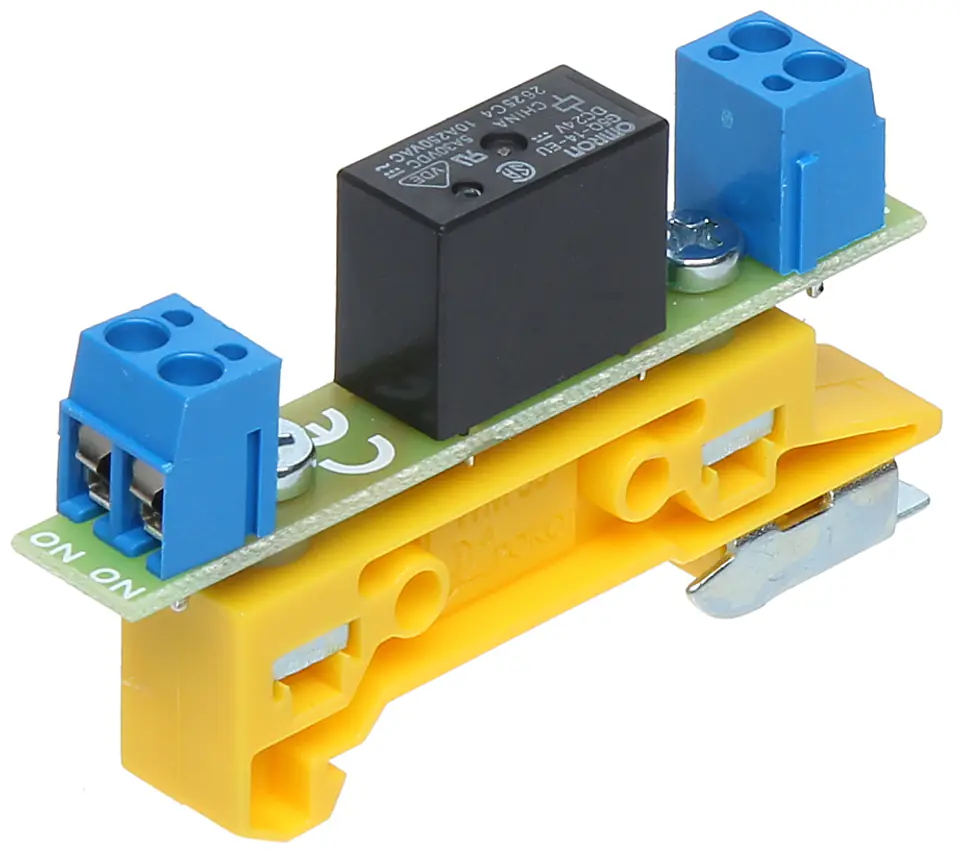

RELAY MODULE PK1-24-ZD DELTA
€9.45
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-24-ZD / 5902887039324
Share this product:
Specification
| -40 °c ... 85 °c: | Operating temperature: |
|---|---|
| 0.03 kg: | Scales: |
| 1: | Number of relay outputs: |
| 17 ma 24 vdc: | Current consumption: |
| 24 ... 45 vdc: | Power: |
| 3 years: | Warranty: |
| 5 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 73 x 12 x 41 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Din rail mounting, ts-35, led signaling, protection : surge protection, reverse connection: | Selected features: |
| Relay for controlling electric strike, bolt or electromagnetic interlock: | Use: |
| Yes: | Egress: |
