It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

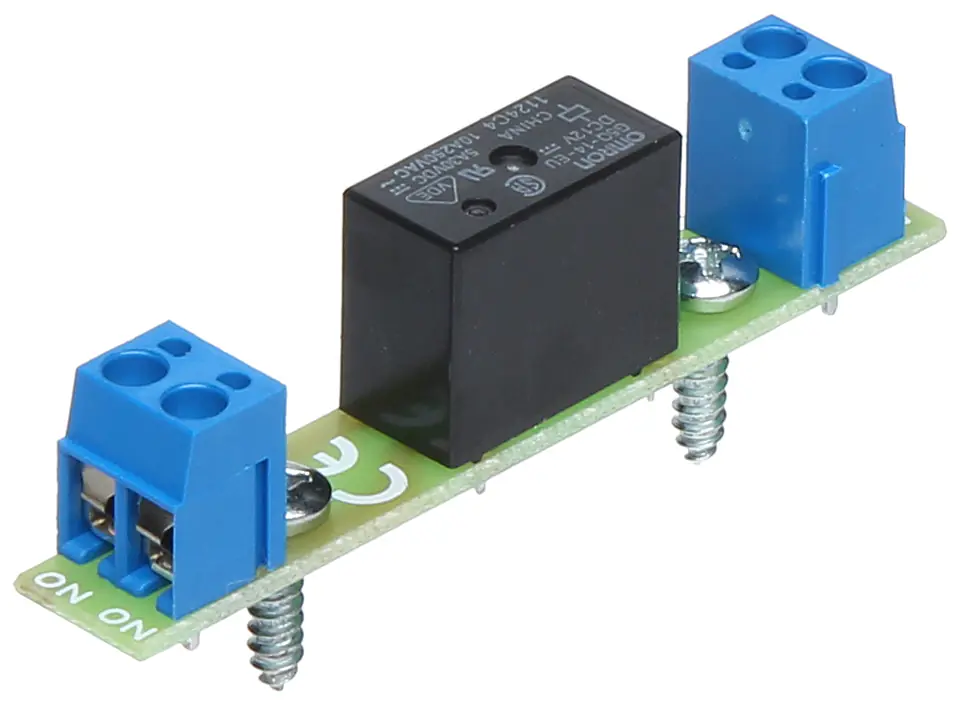

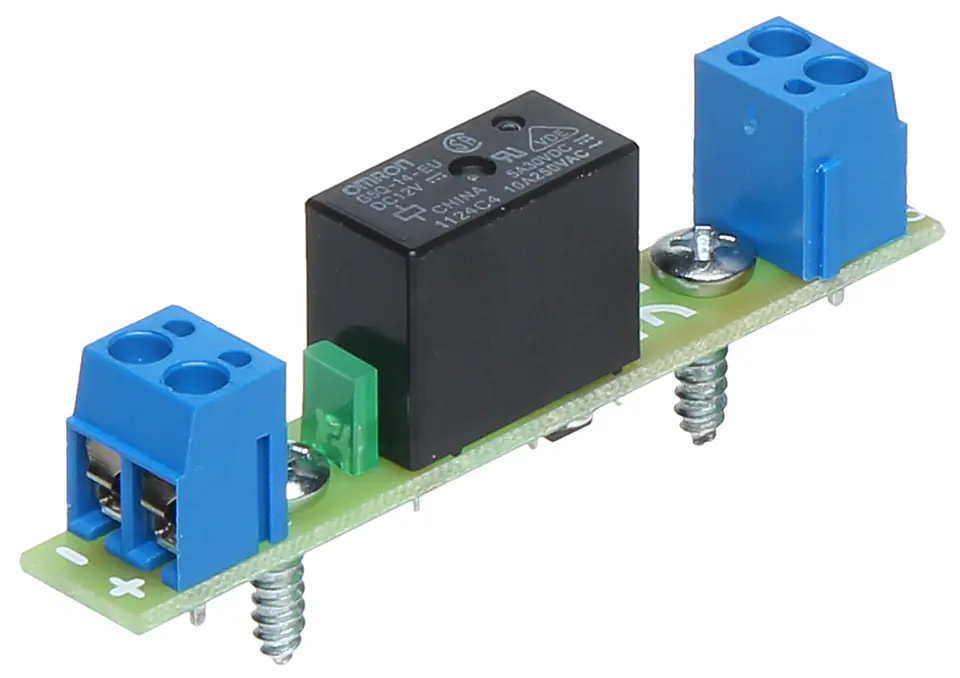

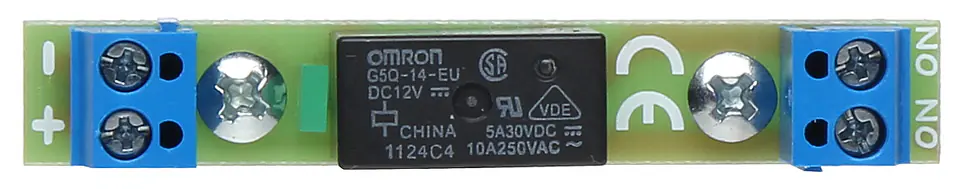

RELAY MODULE PK1-12-ZS DELTA
€7.16
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-12-ZS / 5902887041969
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.015 kg: | Scales: |
| 1: | Number of relay outputs: |
| 10 ... 16 vdc: | Power: |
| 10 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 3 years: | Warranty: |
| 35 ma / 12 v dc: | Current consumption: |
| 69 x 11 x 20 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |

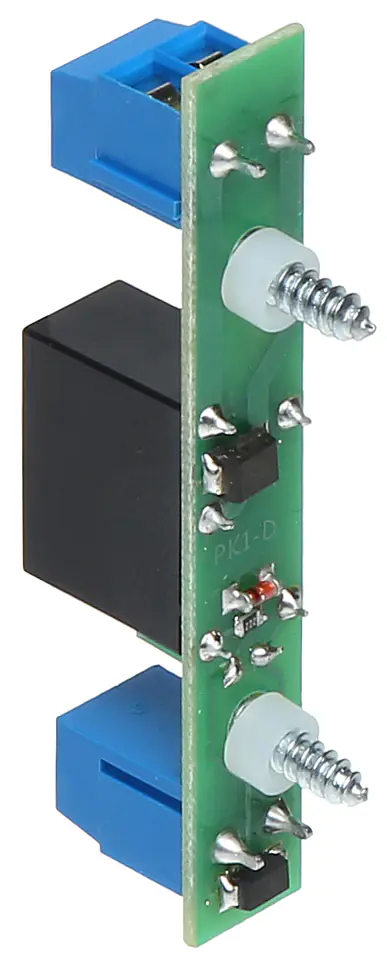

| Mounting with screws with spacers, led signaling, protection : surge protector, reverse connection: | Selected features: |
| Use: | Use: |
| Yes: | Egress: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
