It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

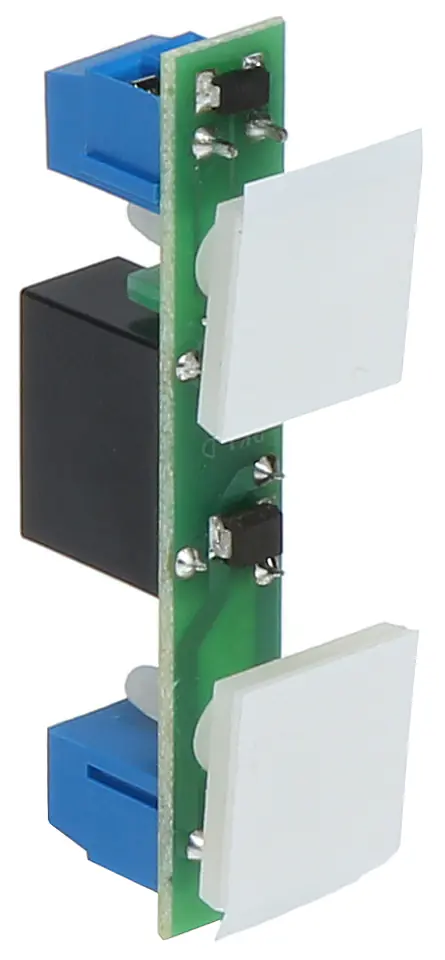

Self-adhesive spacers allow easy installation of the circuit board.

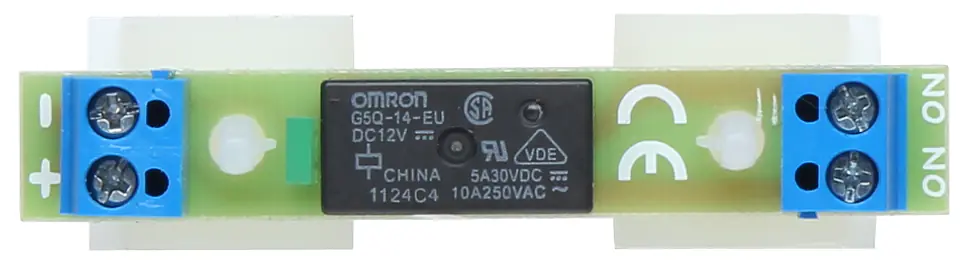

RELAY MODULE PK1-12-ZN DELTA
€7.89
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-12-ZN / 5902887039386
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.02 kg: | Scales: |
| 1: | Number of relay outputs: |
| 10 ... 16 vdc: | Power: |
| 10 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 3 years: | Warranty: |
| 35 ma / 12 v dc: | Current consumption: |
| 69 x 18 x 27 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Installation with adhesive stands, led signaling, protection : surge protectors, reverse connection: | Selected features: |
| Relay for controlling electric strike, bolt or electromagnetic interlock: | Use: |
| Yes: | Egress: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
